Specifications
irrigation reel machine1.srinkler wagon reback by itself
2.flexible to move and storage
3.save water
4.with ISO

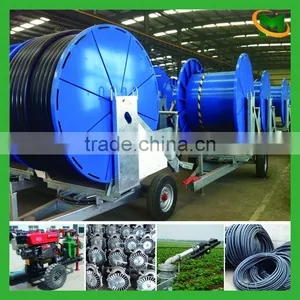

Agricultural Irrigation Reel Machine
Description
The machine mainly adapts to focus on contiguous irrigation of crops such as grains, vegetables, herbs, potatoes and other crops.
It also can spray fruit trees, nursery, and you can spray fertilizers, pesticides and herbicides.
Features
1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.
3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.
PE Length(m) |
300 |
Effective Length(m) |
330 |
PE Diameter(mm) |
90 |
Effective Width(m) |
60-70 |
The Floe of Nozzle(m³/h) |
17-72 |
Combination of Spray Uniformity (icu%) |
≥85 |
Nozzle Range(m) |
36-55 |
The Length of Boom (m) |
26 |
Watering Depth(mm) |
8-50 |
Equipment Entrance pressure(mpa) |
0.4-1 |
Matched Power(kw) |
22 |
The Diameter of Nozzle(mm) |
16-32 |
Overall Weight(kg) |
2280 |
Work Pressure of Nozzle(mpa) |
0.3-0.6 |
Unit Working Time (Hour) |
6 |
The Maximum Working Area(ha) |
1.7 |
The Life of Machine(year) |
25 |
Over demission (L*W*H mm) |
3000*1800*2800 |
For more information, pls contact hellen !
Tel: +0086-15890098440
trademanager: ali1000036028
