Specifications
irrigation equipment1.suit for 10-20ha. field
2.turbine recover pipe
3.flexible to move and storage
4.galvanized frame

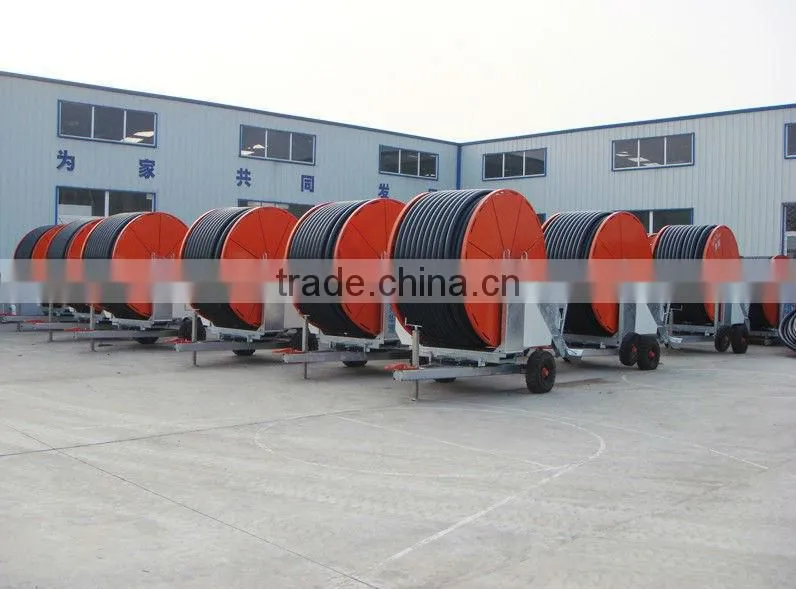

Hose Reel Irrigation Equipment
Description
The irrigation system mainly adapted to focus on contiguous irrigation of crops such as grains, vegetables, herbs, potatoes
and other crops. It also can spray fruit trees, nursery, and you can spray fertilizers, pesticides and herbicides.
Feature
1.The machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation Sprinkler can be operated by 1-2 persons.
3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation Sprinkler System, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.
Model |
JP75-300 |
|
|
PE Length(m) |
300 |
Effective Length(m) |
330 |
PE Diameter(mm) |
75 |
Effective Width(m) |
55-65 |
The Floe of Nozzle(m³/h) |
17-72 |
Combination of Spray Uniformity (icu%) |
≥85 |
Nozzle Range(m) |
36-55 |
The Length of Boom (m) |
26 |
Watering Depth(mm) |
8-50 |
Equipment Entrance pressure(mpa) |
0.4-1 |
Matched Power(kw) |
22 |
The Diameter of Nozzle(mm) |
16-32 |
Overall Weight(kg) |
2280 |
Work Pressure of Nozzle(mpa) |
0.3-0.6 |
Unit Working Time (Hour) |
6 |
The Maximum Working Area(ha) |
1.7 |
The Life of Machine(year) |
15 |
Over demission (L*W*H mm) |
3000*1800*2800 |
For more information, pls contact hellen !
Tel: +0086-15890098440
