Specifications
1.Vibration separation equipment2.Large processing capacity
3.ISO9001:2008&CE
4.High efficiency,high output
5.Long life
HY series linear vibration separation equipment has a long history in designing and manufacturing, which can be customized for clients, regardless of width, length, height, materials. Should you be interested in any items, please do not hesitate to contact us !
Features
1.Simple structure & operation
2. Large processing capacity ,screen any powder and particle.
3.Closed structure without dust scattering,can be up to 200 mesh.
4.It can be single or multi-layer arrangement.
5.low energy consumption and easy maintenance.
6.Automatic discharging,more suitable for the assembly line homework.

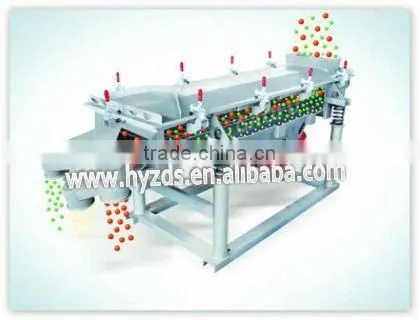

How does it works
linear vibration separation equipment machine is used as a source of vibration excitation by vibrating motor, so that the sieve material being thrown up and forward for linear motion ,in order to match reasonable sieve.There are several balls on the bottom of screen frame hit each other when vibrating, which can clear screen and avoid blocking effectively.
Usage and application
This Linear vibration shaker is used for screening and classifying materials like grain and powder in the industry of plastic, Abrasive materials, medicine, chemistry, chemical industry, building materials, food, chemical fertilizers, coal and so on.
Teachnical parameters
Model |
HY-520 |
HY-525 |
HY-1020 |
HY-1025 |
HY-1030 |
Appearance Dimension |
500×2000 |
500×2500 |
1000×2000 |
1000×2500 |
1000×3000 |
Material Granularity |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
Angle |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
Amplitude |
3-4.5 |
3-4.5 |
3-4.5 |
3-4.5 |
3-4.5 |
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
Power |
2× (0.37-0.75) |
2×(0.37-0.75) |
2× (0.55-1.1) |
2× (0.55-1.1) |
2× (0.55-1.1) |

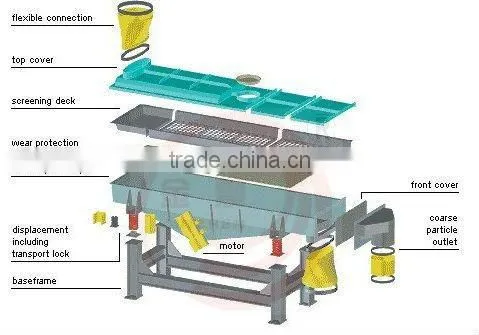

Structure

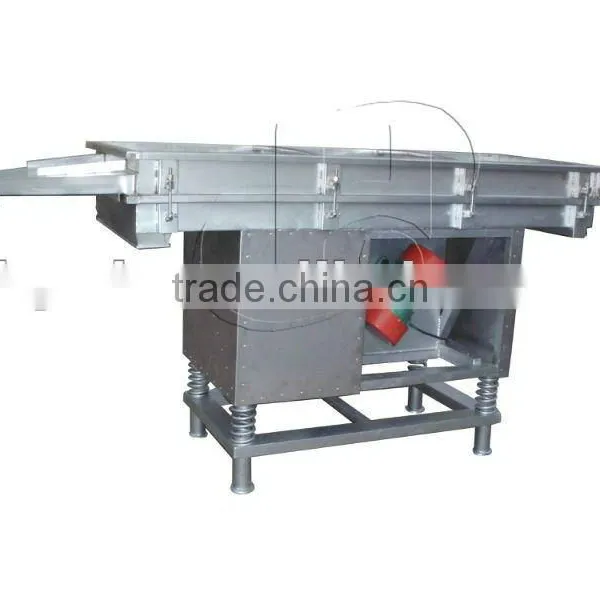

Pictures
We can design our machine with special specifications according to the technical information such as technical data and size of the equipment provided by customers...
