Home > Manufacturing & Processing Machinery > Sorting Machine > Vibrating Screen > Professional Vibrating Sifter Screen for Papermaking

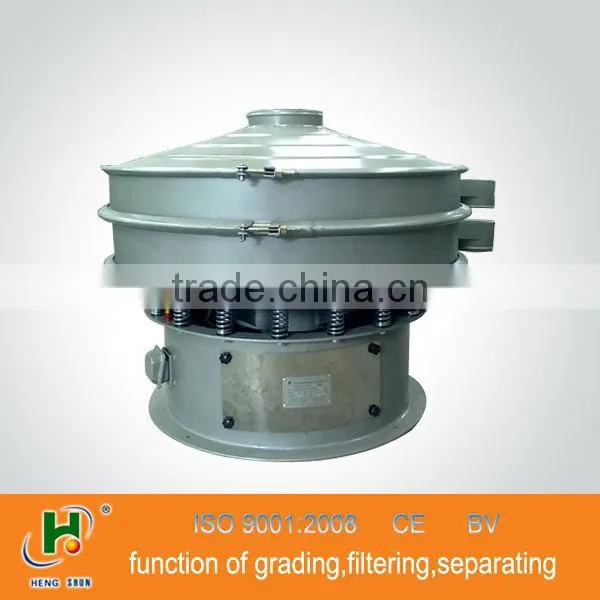

Professional Vibrating Sifter Screen for Papermaking

Professional Vibrating Sifter Screen for Papermaking thumbnail-1
Professional Vibrating Sifter Screen for Papermaking photo-1
US$ 3,000 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, Papermaking Vibrating Sifter Screen
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Other, Papermaking Vibrating Sifter Screen
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-1S
Voltage as request
Power(W) according to No. of layers
Dimension(L*W*H) can be customized
Weight 145kg
Certification ISO9001:2008, CE, BV
Warranty within 12 months
After-sales Service Provided Engineers available to service machinery overseas



Professional Vibrating Sifter Screen for Papermaking

General information

Type

circular type

Diameter

100mm

Layer

single layer

Material

parts contacting with screened material are stainless steel

Function

removal of oversize in any liquid

Range of mesh

5-500 mesh

Material of screen

stainless steel 304











Features

1. Outlet can be adjustable in the range of 360 °, which is convenient to arrange.

2. Can satisfy different process requirements because of the special vibration type and the adjustment of the material trajectory and amplitude.

3. Fully closed, no dust flying that will help to improve working conditions.

4. Increase your mesh life by reducing screen overload and frequency of mesh cleaning

5.  Sieving machines can reach 5 layers, it is recommended to use 3 layers.

Check photos for learning more about machine

vibrating sifter screen with Omni-directional wheel

Professional Vibrating Sifter Screen for Papermaking

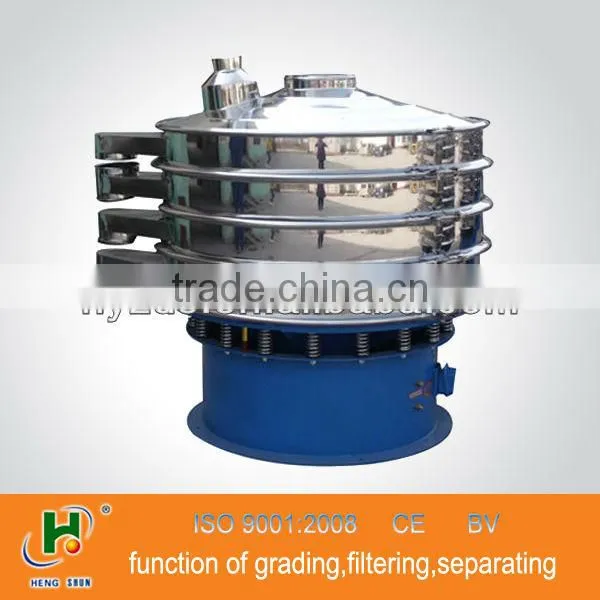

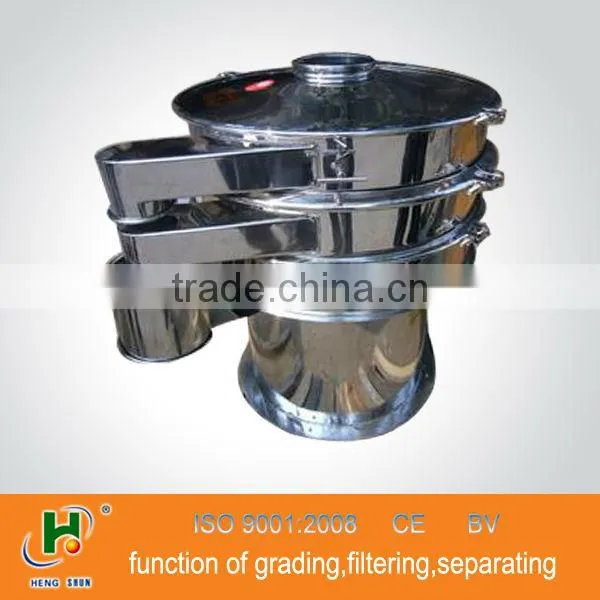

vibrating sifter screen with full stainless steel 304 material

 Professional Vibrating Sifter Screen for Papermaking

vibrating sifter screen with full mild steel material

  Professional Vibrating Sifter Screen for Papermaking

vibrating sifter screen with additional hole for observing the screened material

 Professional Vibrating Sifter Screen for Papermaking

Technical Parameter



Model

Power

Effective diameter

Largest vibration force

HY-600

0.25-0.55 Kw

550 mm

5000 N

HY-800

0.55-0.75 Kw

760 mm

8000 N

HY-1000

0.75-1.50 Kw

930 mm

10000 N

HY-1200

1.10-1.75 Kw

1130 mm

15000 N

HY-1500

1.50-2.20 Kw

1430 mm

30000 N



Payment information

Payment way

T/T, L/C, Western Union, Escrow

Payment term

30% advanced + 70% be paid before shipping

30% advanced by T/T + L/C be paid the rest

100% advanced for sample

Package information

Weight

210kg (approx.)

Dimension

1160*1160*810mm

Volume

1.08CBM

                                                                  Package

Carton case for spare parts

Plywood case for machine

Certification

ISO

ISO international standards ensure that products and services are safe, reliable and of good quality



CE

CE certification is designed to protect EU consumers by regulating products to reduce possible dangers to people and the environment

BV

Our products have been passed assessment by BV company with 180 yeas history

Good supplier

We are Gold supplier of Alibaba for 4 years

Warranty



Warranty period

It is 12 months since the using of date for main parts. This warranty expires if the customer or third party carries out inappropriate modification or unjustified repair works.

Suggest matching model

If you want to obtain vibrating sifter screen, you only provide us the following requirement, we will reply in time to meet your demands.

(a) The name of materials, granularity, specific gravity, water content, viscosity, temperature.

(b) Aim of using: get rid of impurity, filtration, grading, and overall granule and so on.

(c) Treatment volume: kg/h, L/h.

(d) The specification of screen (mesh or mm).

(e) How long is the operation time every day?

(f) Others special requirements.

For example: heat-resisting, medium-resisting.





Warmly welcome to visit our factory any time you like it !
