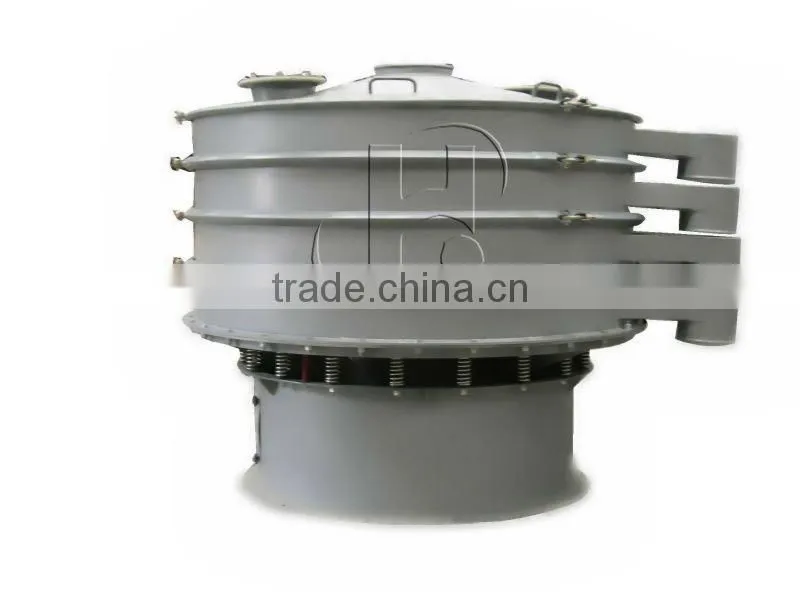

HY-1200 Standard Soil Vibration Shaker Machine With Dust Cover

HY-1200 Standard Soil Vibration Shaker Machine With Dust Cover thumbnail-1
HY-1200 Standard Soil Vibration Shaker Machine With Dust Cover photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG DHUN
Model Number:
HY-1000
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name HENG DHUN
Model Number HY-1000
Certification ISO9001:2000, CE certification
Type Other, rotary



It is a good helper in For Grading, Screening and separating



                                                               Product's overview



            HY-1200 standard soil vibration shaker machine with dust cover

Instruction:

Circular vibrating sieve shaker for sorting automatically powders and solid material in general. Six years of modifications and technical up-dates, the wide range available, the accessories and the tested effectiveness and reliability make the machine is well received in home and aboard.





Construction features:



*     Clamping system by rings



*    All parts in contact with the product are made of stainless steel 304.



*    Base mad of common steel or stainless steel, as customer’s requirement.



*    Discharge outlet with sloped bottom



*    Electrical motor vibrator, IP65 insulation.





 Advantages

  1. Precise screening thanks to square-mesh nets
  2. Fast waste discharge
  3. High reliability thanks to its resistant structure
  4. Low noise
  5. Easy to maintain

Technical Parameters of vibrating sieve shaker

Model

Power(kw)

Effective Diameter

Dimensions(mm)

Layer/ Deck

HY -400

1S

0.18

360 mm

580x580x560

1

2S

580x580x670

2

3S

580x580x780

3

HY -600

1S

0.25-0.55

560 mm

800x800x750

1

2S

800x800x890

2

3S

800x800x1030

3

HY -800

1S

0.55-0.75

760 mm

900x900x750

1

2S

900x900x890

2

3S

900x900x1030

3

HY -1000

1S

0.75-1.5

930 mm

1160x1160x810

1

2S

1160x1160x950

2

3S

1160x1160x1090

3

HY -1200

1S

1.10-1.75

1130 mm

1360x1360x885

1

2S

1360x1360x1050

2

3S

1360x1360x1275

3

HY -1500

1S

1.50-2.20

1430 mm

1850x1850x990

1

2S

1850x1850x1185

2

3S

1850x1850x1380

3

HY-1800

1S

2.20-3.0

1730 mm

2200x2200x1050

1

2S

2200x2200x1250

2

3S

2200x2200x1450

3



Note: The above mentioned model is our standard model and we also can make some changes according to your working site or special demands, contact us today````

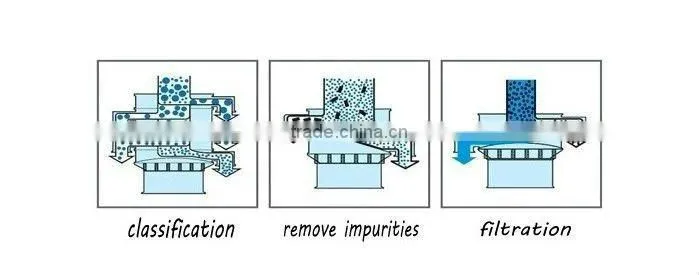

The Function of vibrating sieve shaker as follows:

 HY-1200 standard soil vibration shaker machine with dust cover

A. Classification

Each of our vibrating sieve shaker can screen and separate precisely and continuously, the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.

B. Filtration

The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.

C. Remove the impurities

Our circular vibrating screen can quickly separate a few oversize or undersize particles from a quantity of materials.

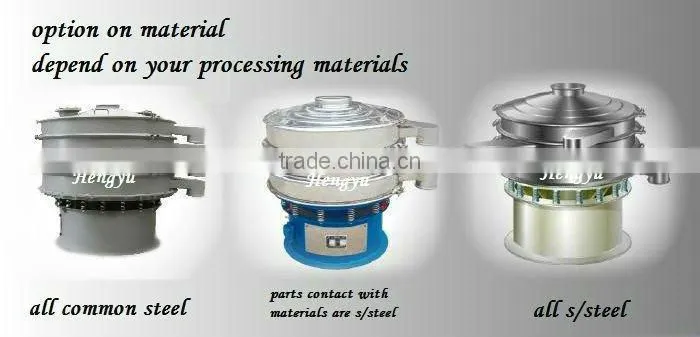

You can choose the models with two ways:



HY-1200 standard soil vibration shaker machine with dust cover



  HY-1200 standard soil vibration shaker machine with dust cover





Quality assurance

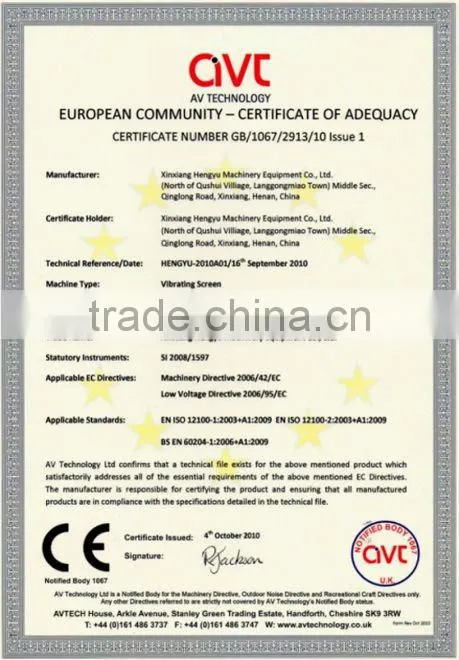

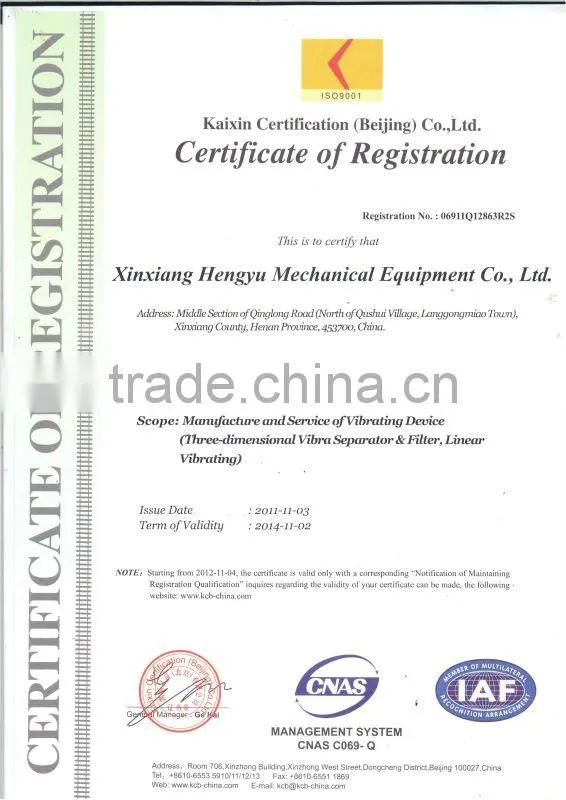

Our products passed the ISO9001:2000 and CE certification, please check the certifications as follows:



HY-1200 standard soil vibration shaker machine with dust cover       HY-1200 standard soil vibration shaker machine with dust cover

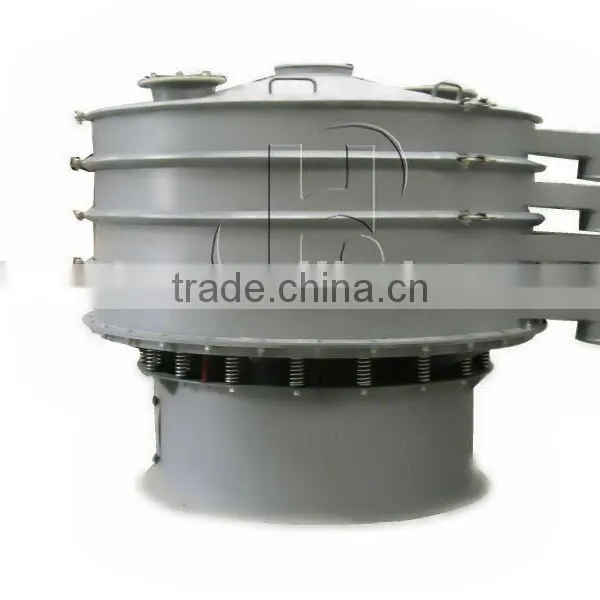

Some pictures of the vibrating sieve shaker show you.

Anti-blockage system: Rubber bouncing balls can guarantee No- blockage

 HY-1200 standard soil vibration shaker machine with dust cover

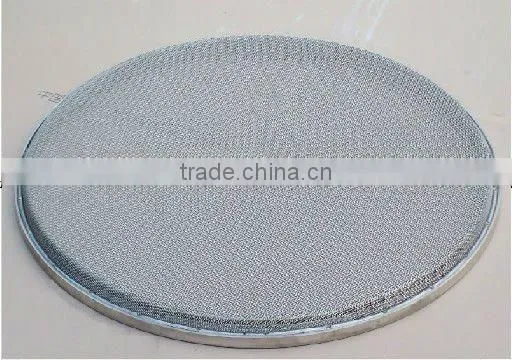

Screen mesh cloth: We use double mesh cloth a fine mesh cloth at upper,underlined by a strong hardware cloth, which could be bear the impact force from the processed material and extend the service life of the upper mesh cloth.

HY-1200 standard soil vibration shaker machine with dust cover

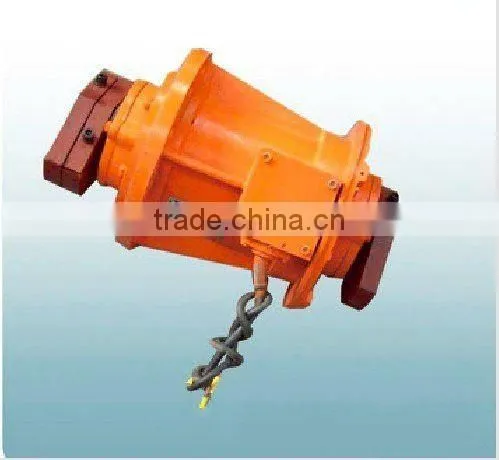

Vibrating motor:The vibrating separator is driven by horizontal motor.

 HY-1200 standard soil vibration shaker machine with dust cover
