High Efficiency Carbon Steel Gig Feeder Conveyor Machine

High Efficiency Carbon Steel Gig Feeder Conveyor Machine thumbnail-1
High Efficiency Carbon Steel Gig Feeder Conveyor Machine photo-1
US$ 859 - 6,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Cement,coal, building industry and other departments...
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Cement,coal, building industry and other departments...
Power Type Electric
Capacity(t/h) 15t/h
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number gig feeder conveyor machine - 200
Power(W) 7.4kw
Dimension(L*W*H) As per the model you choose
Weight 0.75*2 kw
Certification ISO9001:2008, CE, BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Carbon steel gig feeder conveyor machine
1.Big load capacity
2.Good applicability
3.Convenient to install



High efficiency carbon steel gig feeder conveyor machine

Summary Description



High efficiency carbon steel gig feeder conveyor machine use of self-synchronization principle of two eccentric vibration motor, and form a horizontal 60 ° angle of the resultant  force, through periodic vibration, thus promoting the throw or gliding to the materials within the trough reached the granular, small block and powdered materials from storage silos  to the subject material equipment in uniform, quantitative, continuously.



What advantages gig feeder conveyor machine will takes...

motor vibrating feeder compared with electromagnetic vibrating feeder and reciprocating feeder have the advantages of compact and easy structure, durable and sturdy, continuous and homogeneous feeding, and low wear of trough, long service life, and convenient maintaining. The feeder has two structure forms, open and closed, according to the requirements of field working environment; motor could be installed on upper, lower or side face in order to form three different vibrating source installation positions.

Technical parameters

Model

Feed size(mm)

Capacity

(t/h)

Motor

Power

(KW)

Double amplitude

Weight(KG)

Close

Open

ZG-25

60

25

YZS-2.5-4

0.25*2

2-3

240

174

ZG-30

80

30

YZS-5-4

0.4*2

2-3

256

184

ZG-50

90

50

YZS-5-4

0.4*2

2-3

295

235

ZG-100

105

100

YZS-8-4

0.75*2

2-5

384

321

ZG-200

115

200

YZS-17-4

0.75*2

2-5

432

372

ZG-400

140

400

YZS-20-4

2.0*2

2-5

686

606

ZG-750

190

750

YZS-30-4

2.5*2

4-6

1258

1030

ZG-1000

215

1000

YZS-50-4

3.7*2

4-6

1446

1156

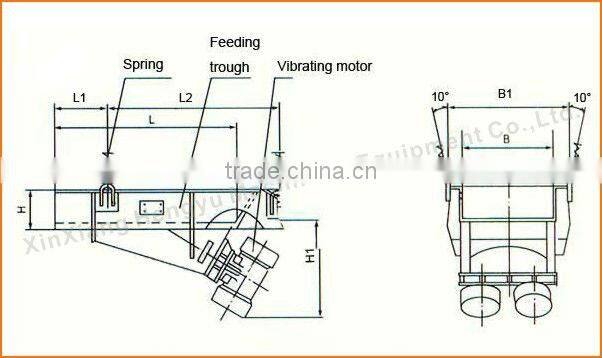

Structure of gig feeder conveyor machineHigh efficiency carbon steel gig feeder conveyor machine

High efficiency carbon steel gig feeder conveyor machine

Main applicable range

  High efficiency carbon steel gig feeder conveyor machine is a kind of linear direction feeding equipment,which is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants, such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

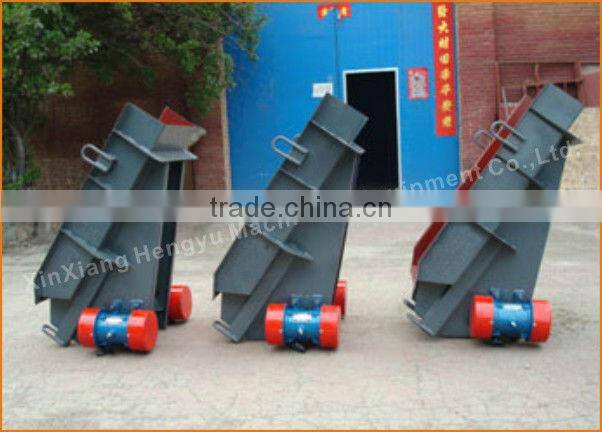

Picures of similar type gig feeder conveyor machine

High efficiency carbon steel gig feeder conveyor machine

High efficiency carbon steel gig feeder conveyor machine

Our best service

High efficiency carbon steel gig feeder conveyor machine

How to choose gig feeder conveyor machine suitable for you:

1. How about the capacity? Such as 5t/h,10t/h,20t/h etc.

2. What’s the max size of materials? Such as 5mm, 20mm, 50 mm, 100mm etc.

3. What’s material? Such as coal, powder, grain etc.

Tell me those data, we can help you choose the suitable machine for you.

Believe in us, best quality of gig feeder conveyor machine will be offered to you; here please send us your e-mails now.

High efficiency carbon steel gig feeder conveyor machine
