Gzd Series Ore Industry Vibrating Feeder Hopper

Gzd Series Ore Industry Vibrating Feeder Hopper thumbnail-1
Gzd Series Ore Industry Vibrating Feeder Hopper photo-1
US$ 800 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
gzd series ore industry vibrating feeder hopper, Powder, granule
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application gzd series ore industry vibrating feeder hopper, Powder, granule
Power Type Electric
Capacity(t/h) customized
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number ZG
Power(W) depend on the model
Dimension(L*W*H) depend on the model
Weight depend on the model
Certification ISO9001:2008, CE
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas

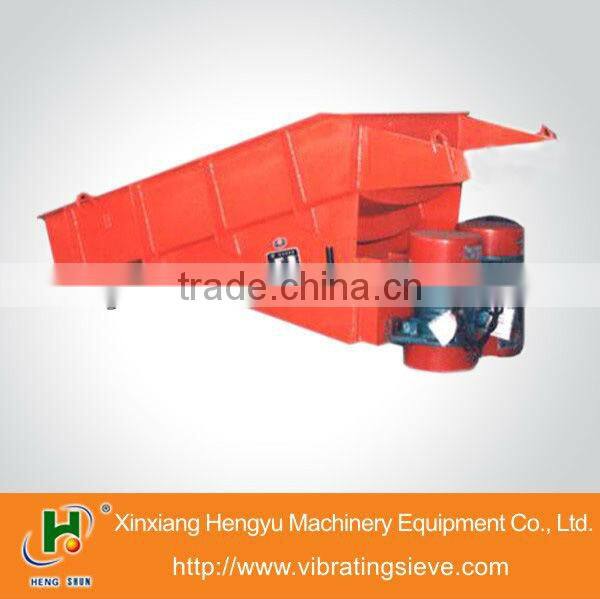

  gzd series ore industry vibrating feeder hopper
 sample introduction of ore industry vibrating feeder hopper

gzd series ore industry vibrating feeder hopper

Features



1. Stable vibration, reliable operation and long service life.

2.  Excellent service life of the electromechanical motors with little maintenance.

3.  Simple structure, light weight, low noise, reliable work, feeding capacity, easy installation and maintenance.

4.  Material according to parabolic trajectory continuous forward for jumping movement, so feed groove wear smaller.

5.  Small size, light weight, simple and compact structure;

6.  The vibrating motor as vibration origin, low energy consumption and low noise.

They are used where material is to be fed either continuously or in batches for –


•Discharging bulk material from bins
•Feeding crushers, mixers, furnaces and scales
•Feeding conveyor belts, bucket elevators, vibratory screens, loading and sorting plants.
•Compared with other conveying means Vibrating Feeders have low energy consumption and cause little pollution. They are wear resistant and thus do not influence the quality and character of the product they handle.

gzd series ore industry vibrating feeder hopper

Technical parameters

Model

Feed size(mm)

Capacity

(t/h)

Motor

Power

(KW)

Double amplitude

Weight(KG)

Close

Open

ZG-25

60

25

YZS-2.5-4

0.25*2

2-3

240

174

ZG-30

80

30

YZS-5-4

0.4*2

2-3

256

184

ZG-50

90

50

YZS-5-4

0.4*2

2-3

295

235

ZG-100

105

100

YZS-8-4

0.75*2

2-5

384

321

ZG-200

115

200

YZS-17-4

0.75*2

2-5

432

372

ZG-400

140

400

YZS-20-4

2.0*2

2-5

686

606

ZG-750

190

750

YZS-30-4

2.5*2

4-6

1258

1030

ZG-1000

215

1000

YZS-50-4

3.7*2

4-6

1446

1156



photos show
similar model in work site

gzd series ore industry vibrating feeder hopper



gzd series ore industry vibrating feeder hopper

FAQ

1.What is our product range?
Our company is specialized in manufacturing screening equipment, such as Round Vibrating Sieve, Linear Screening Machine, Laboratory Test Sieve, Ultrasonic Sieving Machine, 450 Type Vibrating Screen Filter, Powder Vibrating Sieve, Granule Sieve Machine, Liquid Vibration Filter, High-Frequency Vibration Filter and so on.

2.Which industry does the crane applied to?
Chemical industry, Food industry, Pharmaceutical industry, Metallurgical Industry and so on.

3.What method of payment do you support?
We usually support T/T, L/C or Western Union, and various methods of payment is available.

4.What are the advantages of our products?
1) Reasonable structure.
2) Favorable performance.
3) All goods examined before delivery by 4QC staff.
4) Electricity saving, large capacity.
5) All voltage can be customized, such as 220V, 380V, 415V and so on.

About us

Xinxiang Hengyu Machinery Equipment Co., Ltd. is a mechanical design, manufacturing, sales company. She is specialized in dealing with a wide range of screening and conveying system for solid, powder and liquid in various industries.

Our company has her own patented technology and a number of high-tech technical personnel. We can design and manufacture products according to customer’s special demands. For many years, our company is guided by requirements of market and customer, and we constantly update and improve our products to satisfy requirements of customers, market and different materials. We always believe-The only thing remains unchanged in the world is change itself, only by constantly improving can make ourselves live forever.

In future we adhere to –high starting point of technology, high quality of service. In marketing, we wish to see devolvement with friends from overseas and domestic on fair cooperation and mutual benefit.

our team

gzd series ore industry vibrating feeder hopper

our logo

gzd series ore industry vibrating feeder hopper
Contact us



Warmly welcome to visit our factory any time you like it !

gzd series ore industry vibrating feeder hopper
