Coal Belt Type Bucket Elevator

Coal Belt Type Bucket Elevator thumbnail-1
Coal Belt Type Bucket Elevator photo-1
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Bucket Conveyor
Material:
Other, coal belt type bucket elevator
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Bucket Conveyor
Material Other, coal belt type bucket elevator
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity vary from diffrent models
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number TD
Voltage 220V,380,415V
Power(W) 3-22kw
Dimension(L*W*H) vary from different models, Refer to the technical parameter
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

coal belt type bucket elevator



Brief description

coal belt type bucket elevator are designed to move flowing powders or bulk solids vertically. belt type bucket elevator  use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat. coal belt type bucket elevator



Features

1. Completely enclosed for dust and weather-tight operation

2. A wide range of elevated, not only handle the general powder, and elevate the mill cut larger materials.

3. Many different bucket and casing sizes available for capacities up to 15,000 cubic feet per hour.

4. Huge-volume hopper with tight arrangement. With little returned material or digged-out material, the ineffective power resulted is quite less.

5. Inlet section can be control fed or flood loaded with bulk materials.

6. coal belt type bucket elevator



Working principle

bucket belt elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators,dustpan,dustpan belt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.



Technical parameters



Type

TD160

TD250

TD315

TD400

hopper type

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

throughput(m3)

5

10

10

16

12

22

23

35

17

30

25

40

24

46

41

66

hopper width(mm)

160

250

315

400

hopper capacity(L)

1

1

1

2

1

2

3

5

2

4

4

6

3

6

5.9

9

hopper distance(mm)

280

350

360

450

400

500

480

560

chain width(mm)

200

300

400

500

hopper speed(m/s)

1.4

1.6

1.6

1.8

max block of material(mm)

25

35

45

55



Work for

Application
1. Metallic and Non-Metallic ores (Bauxite ,Coal, Sand ,Gravel Cement,Gypsum,Limestone ).
2.Food products (Sugar,Flour,Coffee,Salt )
3.Chemical Processing products (Fertilizers,Phosphates,Agricultural Lime,Soda Ash)
4. Pulp and Paper products (Wood Chips )



Photos display

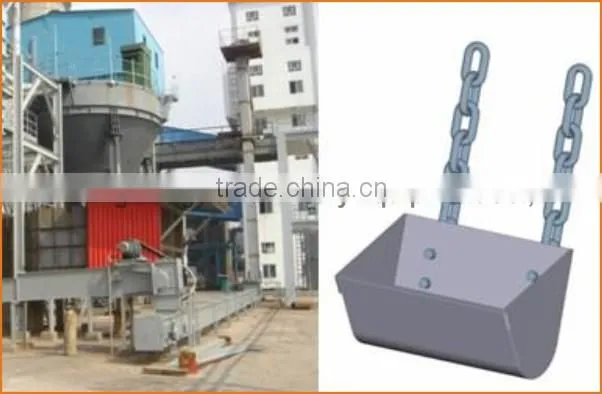

belt bucket elevator in worksite

coal belt type bucket elevator

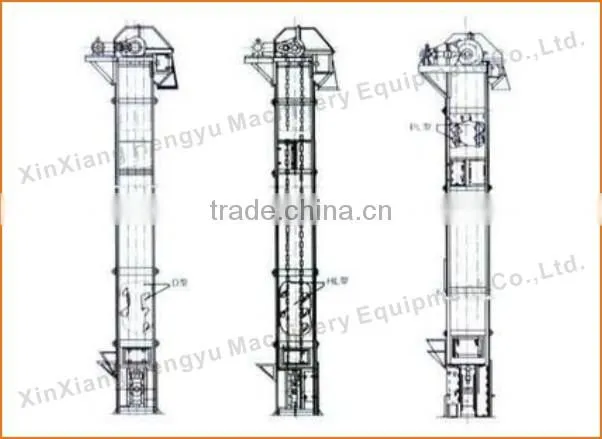

drawing of coal belt type bucket elevator

coal belt type bucket elevator

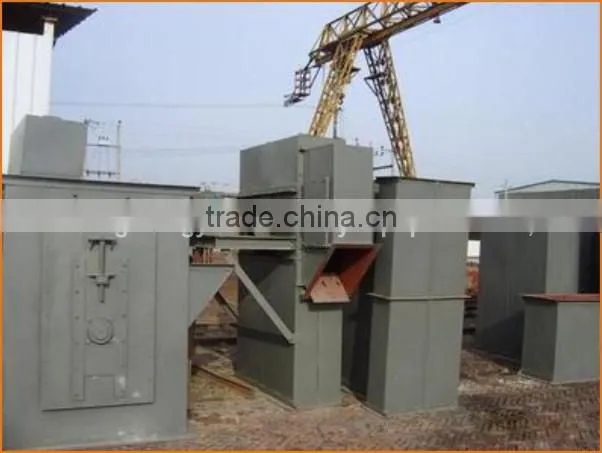

part of coal belt type bucket elevator

coal belt type bucket elevator



For right model

1. What's the material you are going to deal with?
2. What are the physical characteristics of the material?
Such as the size,temperature,density,moisture content,etc
3. What's the producing capacity you are going to achive?
4.What is the lifting height of the elevator (distance between inlet and outlet)?



For more details,contact us

coal belt type bucket elevator
