High-capacity Continuous Bucket Elevator for Sand

High-capacity Continuous Bucket Elevator for Sand thumbnail-1
High-capacity Continuous Bucket Elevator for Sand photo-1
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Bucket Conveyor
Material:
Other, Carbon steel
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Bucket Conveyor
Material Other, Carbon steel
Material Feature Other, high-capacity continuous bucket elevator for sand
Structure Conveyor System
Load Capacity vary from diffrent models
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number TD
Voltage 220V,380,415V
Power(W) 3-22kw
Dimension(L*W*H) vary from different models
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

   high-capacity continuous bucket elevator for sand



Brief description

continuous bucket elevator are designed to move flowing powders or bulk solids vertically. Bucket elevators use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat. high-capacity continuous bucket elevator for sand



Features

1. Completely enclosed for dust and weather-tight operation

2. A wide range of elevated, not only handle the general powder, and elevate the mill cut larger materials.

3. Obvious features like low power required, effective inflow feeding & guiding discharge,

4. Huge-volume hopper with tight arrangement. With little returned material or digged-out material, the ineffective power resulted is quite less.

5. Inlet section can be control fed or flood loaded with bulk materials.

6. high-capacity continuous bucket elevator for sand.



Working principle

high-capacity elevator bucket is composed of machine head, main frame,Maintenance cylinder,Ventilators,dustpan,dustpan belt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.



Technical parameters



Type

TD160

TD250

TD315

TD400

hopper type

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

throughput(m3)

5

10

10

16

12

22

23

35

17

30

25

40

24

46

41

66

hopper width(mm)

160

250

315

400

hopper capacity(L)

1

1

1

2

1

2

3

5

2

4

4

6

3

6

5.9

9

hopper distance(mm)

280

350

360

450

400

500

480

560

chain width(mm)

200

300

400

500

hopper speed(m/s)

1.4

1.6

1.6

1.8

max block of material(mm)

25

35

45

55



Work for

Application
1. Metallic and Non-Metallic ores (Bauxite ,Coal, Sand ,Gravel Cement,Gypsum,Limestone )
2.Food products (Sugar,Flour,Coffee,Salt )
3.Chemical Processing products (Fertilizers,Phosphates,Agricultural Lime,Soda Ash)
4. Pulp and Paper products (Wood Chips )



Photos display

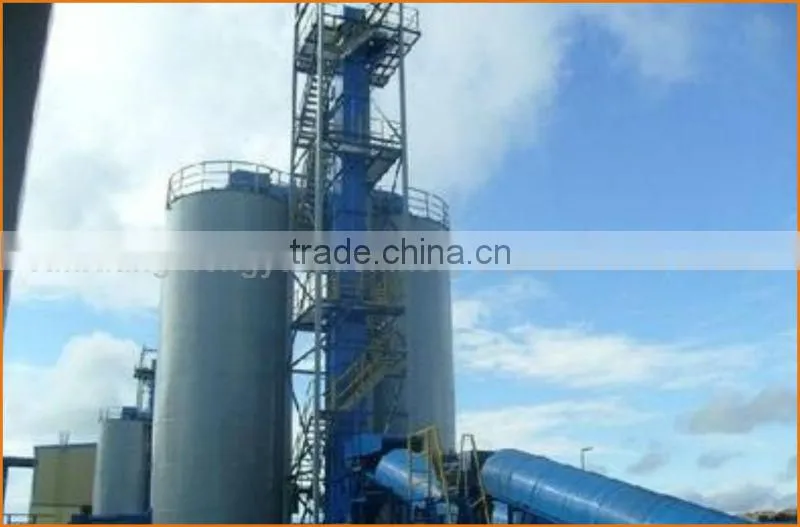

bucket elevator for sand

high-capacity continuous bucket elevator for sand

drawing of high-capacity continuous bucket elevator for sand

high-capacity continuous bucket elevator for sand

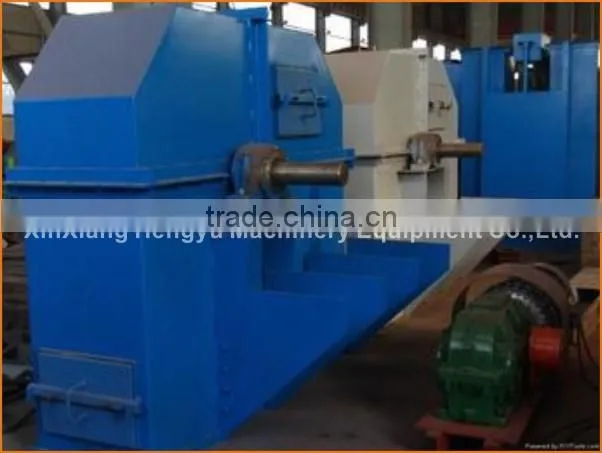

high-capacity continuous bucket elevator in factory

high-capacity continuous bucket elevator for sand





For right model

1. What's the material you are going to deal with?
2. What are the physical characteristics of the material?
Such as the size,temperature,density,moisture content,etc
3. What's the producing capacity you are going to achive?
4.What is the lifting height of the elevator (distance between inlet and outlet)?



For more details,contact us

high-capacity continuous bucket elevator for sand



Contact information


Contact person: Joy Yang
Company name:Xinxiang Hengyu Machinery Equipment Co., Ltd.
Tel: (0086-373) 3807161 Fax: (0086-373) 3807161 Mobile: (0086) 137 8195 2361
Alibaba TM:cn220009171 QQ:912507271



If you are interested in any of our model, do not hesitate to contact! We will give you our best suggestions and price.
