Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > Silo th Bucket Elevator Desgin

Silo th Bucket Elevator Desgin

Name: Silo th Bucket Elevator Desgin
Brand: HENG SHUN
SKU: 138903771

Silo th Bucket Elevator Desgin thumbnail-1

US$ 999 - 9,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Bucket Conveyor, Z type and bucket type

Material:

Stainless Steel

Contact Supplier Request Quote Chat Now

Xinxiang Hengyu Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Bucket Conveyor, Z type and bucket type

Material Stainless Steel

Material Feature Other, silo th bucket elevator desgin

Structure Conveyor System

Load Capacity vary from diffrent models

Place of Origin Henan, China

Brand Name HENG SHUN

Model Number TD

Voltage 220V,380,415V

Power(W) 3-22kw

Dimension(L*W*H) vary from different models

Certification ISO,CE

After-sales Service Provided Engineers available to service machinery overseas

silo th bucket elevator desgin

Brief description

th bucket elevato are designed to move flowing powders or bulk solids vertically. bucket elevator design use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat.

Features

1. Completely enclosed for dust and weather-tight operation

2. A wide range of elevated, not only handle the general powder, and elevate the mill cut larger materials.

3. Many different bucket and casing sizes available for capacities up to 15,000 cubic feet per hour.

4. Huge-volume hopper with tight arrangement. With little returned material or digged-out material, the ineffective power resulted is quite less.

5. Inlet section can be control fed or flood loaded with bulk materials.

6. silo th bucket elevator desgin

Working principle

silo bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators,dustpan,dustpan belt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

Technical parameters

Type	TD160				TD250				TD315				TD400
hopper type	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd
throughput(m3)	5	10	10	16	12	22	23	35	17	30	25	40	24	46	41	66
hopper width(mm)	160				250				315				400
hopper capacity(L)	1	1	1	2	1	2	3	5	2	4	4	6	3	6	5.9	9
hopper distance(mm)	280		350		360		450		400		500		480		560
chain width(mm)	200				300				400				500
hopper speed(m/s)	1.4				1.6				1.6				1.8
max block of material(mm)	25				35				45				55

Work for

Application
1. Metallic and Non-Metallic ores (Bauxite ,Coal, Sand ,Gravel Cement,Gypsum,Limestone )
2.Food products (Sugar,Flour,Coffee,Salt )
3.Chemical Processing products (Fertilizers,Phosphates,Agricultural Lime,Soda Ash)
4. Pulp and Paper products (Wood Chips )

Photos display

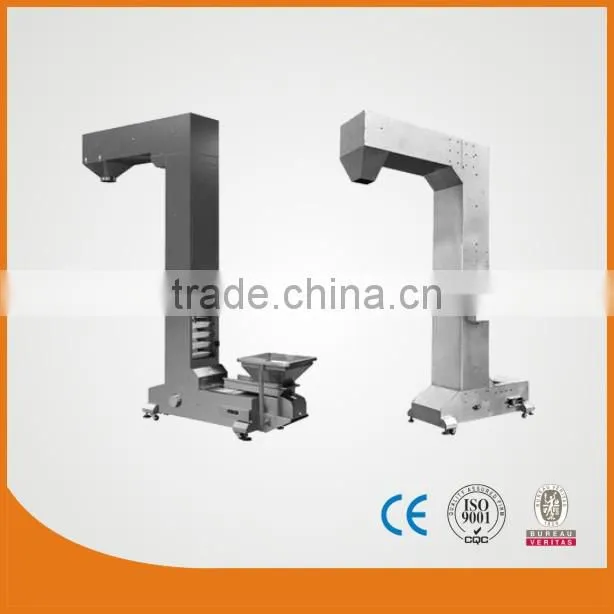

silo th bucket elevator desgin

drawing of silo th bucket elevator desgin

silo th bucket elevator desgin in worksite

For right model

1. What's the material you are going to deal with?
2. What are the physical characteristics of the material?
Such as the size,temperature,density,moisture content,etc
3. What's the producing capacity you are going to achive?
4.What is the lifting height of the elevator (distance between inlet and outlet)?

For more details,contact us

If you are interested in any of our model, do not hesitate to contact! We will give you our best suggestions and price.
