Home > Products > Diesel Concrete Mixer > Sell JZR350 Diesel Engine Mobile Concrete Mixer
Sell JZR350 Diesel Engine Mobile Concrete Mixer
- 2000 Set / Sets per Month
- Qingdao
- T/T
- SHANTUI JANEOO Double horizontal shaft concrete mixer JS3000
- JS500 DOUBLE HORIZONTAL SHAFTS FORCED CONCRETE MIXER
- simple operation js series large scale 3000l high quality concrete mixer for sale
- stand bucket electrical 3000l concrete mixer in concrete batching plant
- good design complete concrete mixer plant with hopper on market
- powerful electric concrete mixer js3000 the manufacturer direct to sell
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Unique |
Model Number: | JZR350 | Mixing Power: | 11KW | Charging Capacity: | 560 L |
Reclaiming capacity: | 350 L | Speed of Mixing Drum: | 13r/min | Water Supply Mode: | Auto |
Working Cycle Period: | 60s | Discharge Way: | Hydraulic | Outline Dimension: | 3250*2240*3200mm |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
JZR350 Diesel Engine Mobile Concrete Mixer:1.With Diesel Engine
2.High Mixing Quality
3.With Trailer Machine

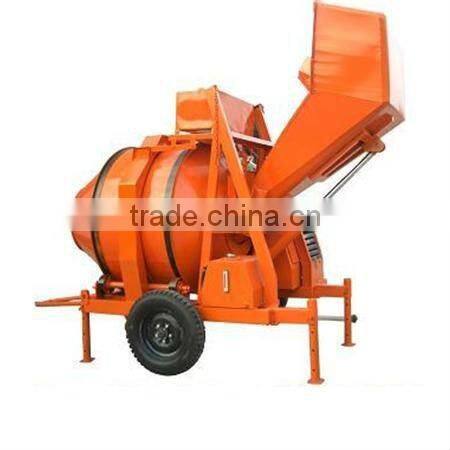

JZR350 Diesel Engine Mobile Concrete Mixer
Description of JZR350 Diesel Engine Mobile Concrete Mixer
1. It is a middle capacity self-dumping mixer;
2. Heavy duty channel chassis provides durability and stronger support in the areas where you need it;
3. Jack legs give maximum stability throughout the mixing cycle;
4. Towable chassis with pneumatic tyred wheels;
5. Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available.
6. Power source: diesel engine. So it can also be used in areas without electricity supply.
Parameters JZR350 Diesel Engine Mobile Concrete Mixer
Model | JZR350 |
Charging Volume | 560 L |
Discharge Volume | 350 L |
Capacity Per Hour | 10~14m3/h |
Capacity of water tank | 110L |
Power source | diesel engine, single cylinder, water-cooled with battery starter |
Power | 11KW |
Drum rotating speed | 13r/min |
Max. towing speed | 20km/h |
Towing | Two/four-towing wheels |
Dimension | 3250*2240*3200mm |
Total Weight | 1790/1840kg |
Hopper Lifting Model | Hydraulic tipping hopper |
Diesel concrete mixer with hydraulic hopper
The barrel is designed adopting Euro-style beautiful and hard,
The driving system adopts involute planetary gear ,the gimbal transmission shaft insures circumgyrate at the same speed in-phase of the two mixing shafts
The mixing system may choose the spiral mixing system ,which has high efficiency and the mixing effect is obvious ,
Scaleboard and the mixing blades adopts high rigidity and high tenacity wearable cast alloy steel ,to prolong the use length of life
The hydraulic station is equipped with manual device ,under accident power cut ,the emergency manual pump is used for opening the discharging door to let the concrete peremptorily
The discharging door adopts hydrostatic control ,and 3sticking dots are equipped ,convenient for affusing the truck to avoid only one stroke,
The lubricating system adopts the international advanced centralized oil lubricating system ,convenient for supplying the oil for the axle end sealing device, the system is equipment with overvoltage warning and low oil level warning ,safe and reliable
the mixing arms installed on the hexagon type horizontal mixing axis,all the mixing blades form interrupted spiral structure ,produces,three dimensional mixing space along the axial and radial direction ,this technical not only reduce the energy consumption to a considerable extent
