Help CenterHigh Crushing Ratio Impact Fine Cusher Supplier
Related Products
-
2013 Lime Stone Production Line SupplierUS$ 5,600 - 99,999MOQ: 1 Set -
Copper Crushing Machine SupplierUS$ 6,666 - 99,999MOQ: 1 Set
-
2013 Wet Limestone Mill SupplierUS$ 5,600 - 66,666MOQ: 1 Set
-
400mm Stone Grizzly Screen for GraniteUS$ 2,666 - 5,666MOQ: 1 Set
-
2013 Marble Ball Mill Machine SupplierUS$ 5,600 - 66,666MOQ: 1 Set
Specifications
Impact Fine Cusher Supplier1. Long service life;
2. High reduction ratio;
3. Energy saving;

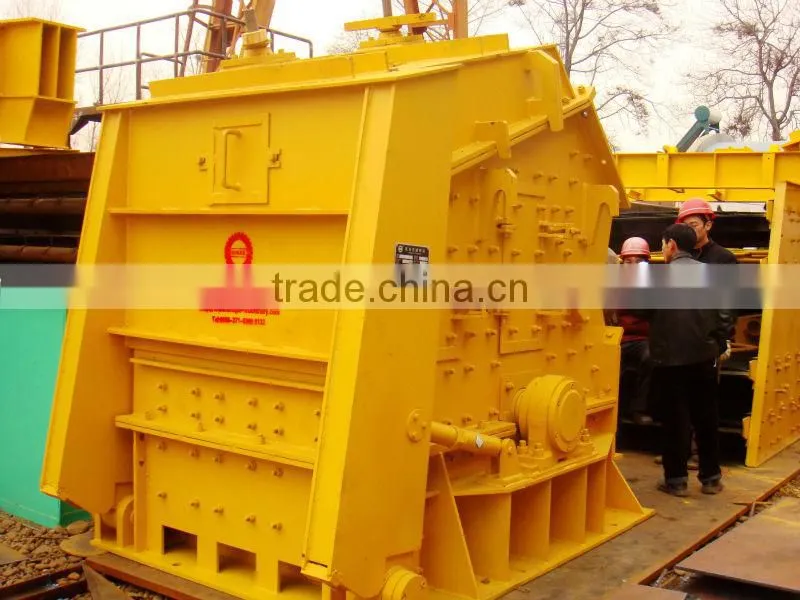

Industrial Impact Fine Cusher Supplier
Features of Industrial Impact Fine Cusher
Stone Making Machine, a type of Impact Crusher is mainly used in secondary crushing. It can crush various rocks, high efficiency, easy maintenance, and cubic shape of the products. Impact crusher is widely used in mining, highway, and construction.
Working Principle of Industrial Impact Fine Cusher
Impact crusher 's electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
Technical Specification of Industrial Impact Fine Cusher
| Model |
Max Feed Edge(mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Dimensions (L×W×H) (mm |
| PF-1007 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
| PF-1010 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
| PF-1210 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |

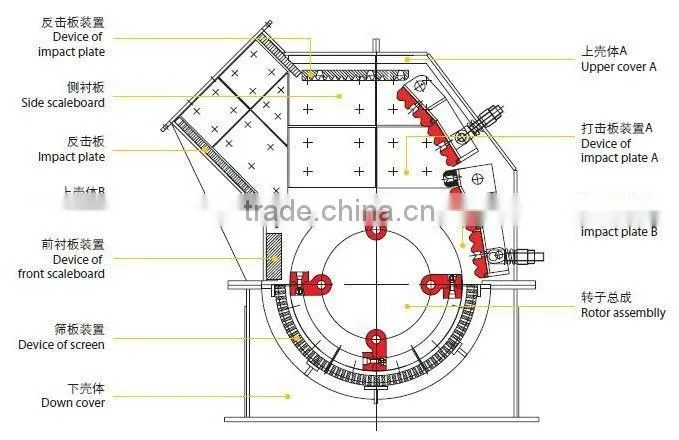

| Impact Crusher Structure |
|
