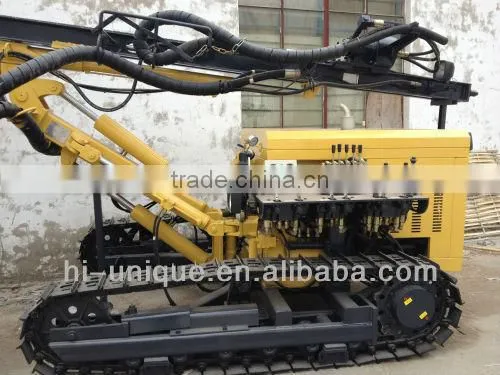

Hot selling Mini Drilling Rig

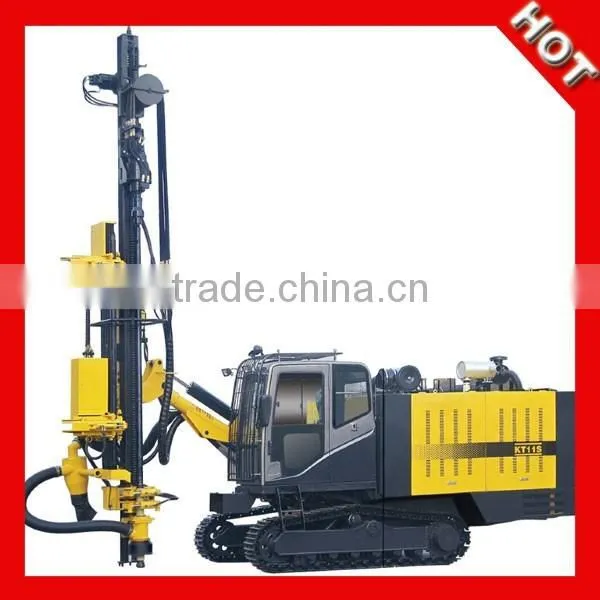

Brief introduction of KT11S
KT11S is a type of high wind pressure open-air DTH drill car,which uses one power to drive the Hydraulic system and the high wind pressure screw compressed system at the same time,with compact structure,high efficiency,automaticly meeting and discharging bar and the cabin air-conditioning and heating, dry dust collection and many other function modules.
Drill car has the characteristics of good entirety, environmental protection and energy saving,high automation,favourable effect of rock drilling,easy and flexibale operation and safe walking which is widely used in open-pit mine, the quarry, highway, railway, water conservancy, electric power, building and engineering project, deep hole drilling operations and ect.
Feature of Mini Drilling Rig
Reliable Pump Set

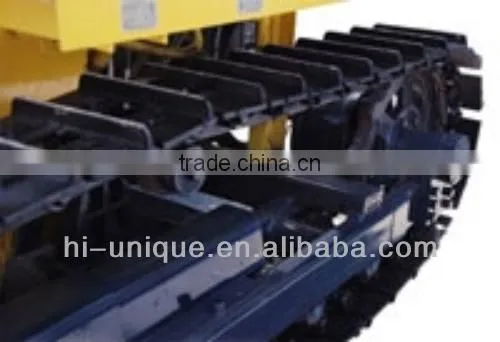

Safe & stable traveling system
Automatically Rod load & unload system
Advanced Dust-collecting system
Powerful Push& Rotating system
Anti-jamming system
Centralized control operation
- drill car design has the advanced hydraulic system and a complete function pneumatic system, all movements are centralized control, convenient operated.
- operating hydraulic maneuvering valve, which can realize the lift, swinging arm drill and drill frame of pitch, angular, translation (back) and crawler adjustment function, guarantee the equality of intersectorial drill hole drilling and drill car stability.
operating pneumatic maneuverings valve, which can realize oil pump is open and drill car propulsion (increased), slewing, impact and dust collector of dust collection, counter blowing function to guarantee a efficient rock drill car
Specification of Mini Drilling Rig
Crawler drill rig KT11S | |
Model |
KT11S |
Rock rigidity |
F=6~20 |
Dia. of hole |
Φ105~125mm |
Drilling depth |
18m |
Travelling speed |
0~2.2km/h |
Climb ability |
20° |
Ground clearance |
430 |
Total power |
239kw |
Diesel engine |
Cummin6LTAA8.9-C325 |
Compressor FAD |
18m3/min |
Compressor discharge pressure |
17bar |
Dimension(mm) |
8890*2580*3655mm |
Weight(kg) |
14600kg |
Rotation speed |
0~63rpm |

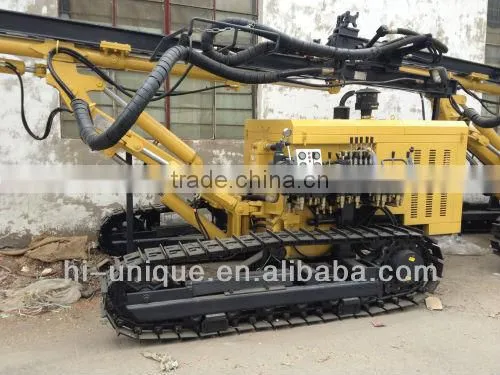

Photo Descripton
Package & shipment
Packaging: Standard Container, Nude Packs or in Bulk.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Our service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
New integrated type crawler drill machine KT11S for sale
