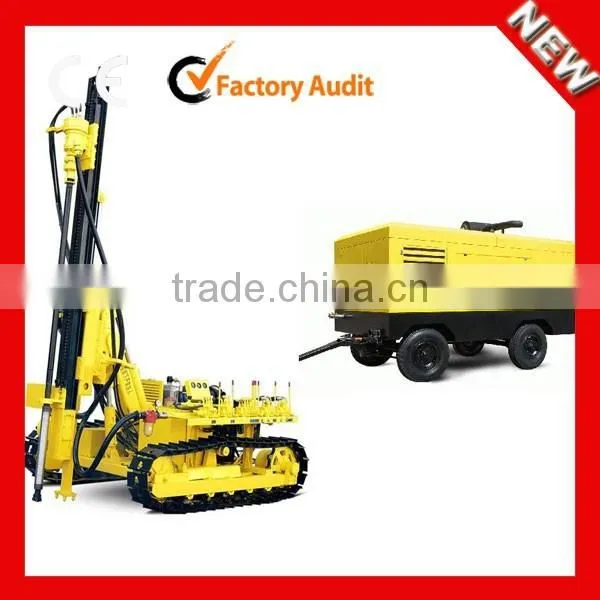

Hot selling new Hydraulic Drilling Rig For Sale
Introduction of Hydraulic Drilling Rig For Sale
KC120 is specially designed drilling equipments, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate drilling rig hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling etc.
Feature of Hydraulic Drilling Rig For Sale
Powerful rotating system
Centralized operating system
Powerful push &rotating system
Safe&stable traveling system
Multi-angle operation
Reliable pump set
Model: KC120
KC120 |
|
Rock rigidity |
f=6-20 |
Dia.of hole |
105-120mm |
Optium drilling depth |
25m |
Working pressure |
10-14 bar |
Air consumption |
≥ 21 m³/min |
Rotating speed |
0-67rpm |
Torque |
1200N.M |
Lift power |
13.6KN |
Dimension |
6000*2425*1800 |
Weight |
5600kg |
Drive system |
Pneumatic motor |
Standard Components |
|
1.Hammer |
HCD45A/HD45SKQG45A |
2.Rod |
Φ76*3000 |
3.Bit |
Φ115 |
4.Air hose |
Φ51*2P*20 |

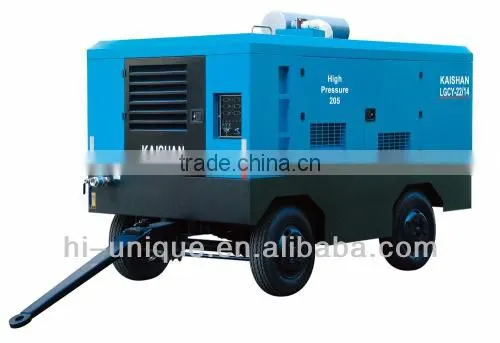

Recommonded |
LGCY-22/13 |
Specifications subject to change without notice |
|
Photo Descripton
Package & shipment
Packaging: Standard Container, Nude Packs or in Bulk.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Our service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
