Help CenterCN KY130(KG930) Air Compressor Drilling Rig
Related Products
-
CN Rock KY140(KG940A) Down Hole Rock Drilling RigNegotiableMOQ: 1 Set -
CN Rock KY125 Rock Blasting Drilling RigNegotiableMOQ: 1 Set
-
CN Rock KY100(KG910B) Rock Blasting Drilling RigNegotiableMOQ: 1 Set
-
CN Rock KY140(KG940A) Rock Blasting Drilling RigNegotiableMOQ: 1 Set
-
CN Rock KY100 Pneumatic Drilling RigNegotiableMOQ: 1 Set
Specifications
Air Compressor Drilling Rig:1.Stable travelling system
2.4-cylinder diesel engine
3.for blast hole drilling

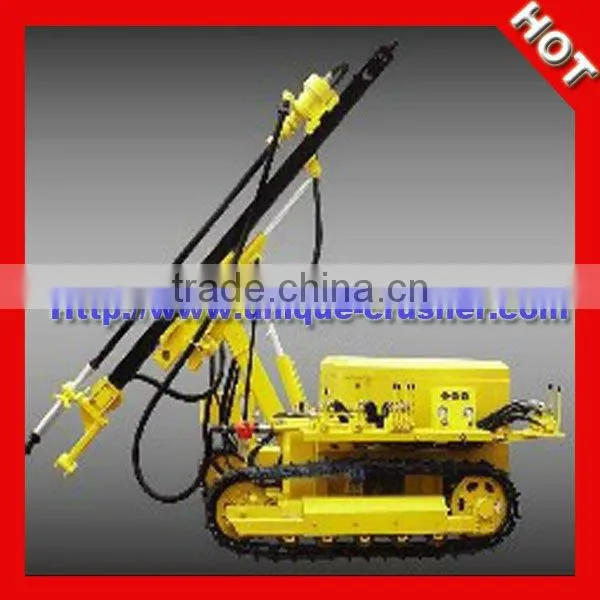

CN KY130 Air Compressor Drilling Rig
KY130 Blast Hole Drilling Rig is a type of High Wind Pressure Open-Air Down Hole Drilling Rig.
Safe and Stable Travelling System of KY130 Air Compressor Drilling Rig
1. This machine has low gravity center and big ground clearance, and can easily travel on bumpy road. It is driven by special wheel motor. That brings it strong grade-ability and low failure rate.
2. Equipped with advanced auto-balance and brake system, makes the crawler drilling rig travel stably and also greatly reduce its impact force to ensure the drive safety.
3. Special anti-lock device greatly improves the crawler drilling rig’s reliability.
4. Vehicle-mounted diesel engine provides strong power, so the crawler drilling rig can freely travel without air compressor.
Powerful and reliable engine of KY130 Air Compressor Drilling Rig
1. Adopt famous 4-cylinder diesel engine as driving force which has advantages of large power, small volume, small vibration and reliable operation.
2. Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter three-stage filter. That strengthens the crawler drilling rigl’s adaptability to severe environment and lengthened the diesel engine’s service life.
Powerful feed mechanism and rotating system of KY130 Air Compressor Drilling Rig
1. The new rotating system is composed of orbit hydraulic motor and planetary gearbox. That provides the crawler drilling rig with strong torque reserve and reduce the sticking drilling rate.
2. The feed mechanism driven by high power hydraulic motor can generate 20 KN lifting power. Adjust the pressure regulating valve on the control valve can got the favorable driving power which is required by the working condition.
New Drilling boom of KY130 Air Compressor Drilling Rig
Optimally designed luffing mechanism and round drilling boom with the advantages of neoteric structure and easy maintenance greatly improves the drilling hole’s coverage area. That also makes low-order horizontal hole drilling available.
Specification of KY130 Air Compressor Drilling Rig
|
Model
Specification |
KY130 |
Rock hardness |
F=6-20 |
Hole diameter(mm) |
105-140 |
Drill depth(m) |
25 |
Pressure (Mpa) |
1.0-2.4 |
|
Air consumption (M3/min) |
≥15 |
Rotating speed (Km/h) |
0-70 |
Lifting capacity (KN) |
18 |
Drill rod specification(mm) |
76×3000 /89×3000 |
Gradeability |
30° |
|
Ground clearance(mm) |
320 |
Walking speed (km/h) |
2.0 |
Drill arm rising angles (°) |
-15~+50 |
Drill arm swing angle (°) |
±45 |
Carriage swing angle(°) |
±50 |
Carriage pitch angle (°) |
180 |
Carriage Compensation(mm) |
1200 |
|
Overall Dimension (L*W*H)(mm) |
5600×2340 ×2550 |
Total Weight (Kg) |
5500 |
Note: |
Pneumatic -hydraulic |
