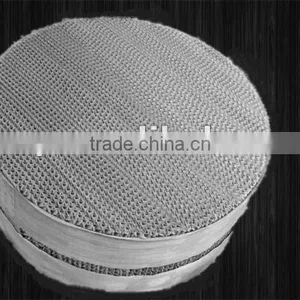

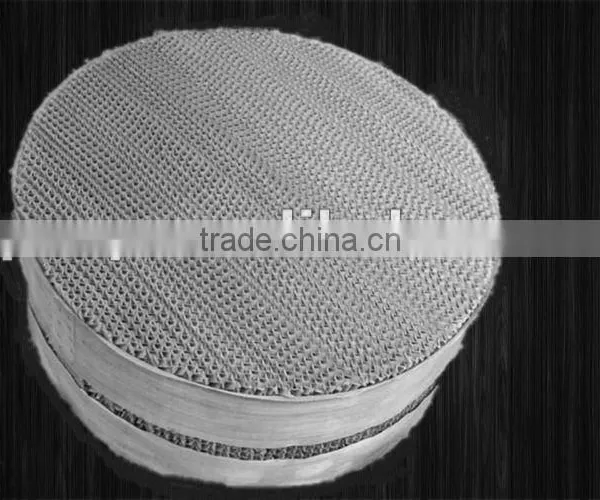

500X Metal Corrugated Gauze Packing

Specifications

1.acid&alkali function,long service life
2.Uniform contacting surface area
3.large void space, thin wall,small resistance

Main Specification of Metal Structured Packings  (Stainless steel 304)
Name	Type	Surface Area m2/m3	Void Fraction  %	Height     mm	Bulk Density kg/m3	Max Factor m/s(kg/m3)0.5	Theoretical Plate      M-1	Pressure Drop    (p)
Perforated & Corrugated Plate	125	125	98	25.4	85~100	3	1~2	150
	250	250	97	12.5	170~200	2.6	2~3	200
	350	350	94	9	240~280	2	2.0~2.5	300
	500	500	92	6.3	360~400	1.8	4~5	180
Pricked & Corrugated Plate	250Y	250	97	12.5	85~100	2.6	5~7	900
	500Y	500	93	6.3	170~200	2.1	3~4	200
	700Y	700	85	4.5	240~280	1.6	2.5~3	300
Corrugated Plate Gauze	SW-1	650	91.6	4.5	140	1.4~2.2	6~8	260~460
	SW-2	450	95.5	6.5	360	1.6~1.8	4~5	220~240
Corrugated Wire Gauze	250(AX)	250	97	12.5	70	2.5~3.5	2.5~3	25~120
	500(BX)	500	95	6.3	140	2.0~2.4	4~5	200
	700(CY)	700	87	4.5	180	1.5~2.0





Metal Corrugated Gauze packing informations:

protruded corrugated sheet packing forming by the following way that first press forming small intensity 0.4-0.5 hole, then stamp sheet with multi-thorn orifice plate form into corrugated combination regular packing, Because the special orifice structure of surface to enhance the packing wet ability ,and keep the character of the packings.



Available Materia of metal tower packing : Stainless steel, copper, aluminum and so on.



We can produce according to your tower  size .

Welcome to inquiry our products
