40*40 Cells&Square Hole Heat Exchanger Ceramic Honeycomb Media
- shanghai shengzhen or any port you need
- T/T Money Gram Credit Card
You May Like
-
Honeycomb Filter for Heat Exchanger(Cordierite, Mullite,90% Al2O3)
-
Thermal Storage Media, Heat Exchange Media for RTO/VOC
-
RTO/VOC Heat Exchange Media for Save Energy
-
Honeycomb Monoliths, Heat Exchange Media
-
Ceramic Honeycomb Substrate as Catalyst Carrier, Catayst Support
-
Catalyst Carrier, Ceramic Honeycomb Substrate, Ceramic Honeycomb Support
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Block | Brand Name | zy |
Product Description
Specifications
1.thin cordierite ceramic walls,thermal efficiency and pressure drop advantages2.RTO industry, Thermal stock,waste gas treat
Product Information:
--Product Name: Thermal storage honeycomb ceramic
--Material: Cordierite, Mullite. 92%, 95%, 99% al2o3
--Size: 150×150×50/100/150/300 , others:100×100×100×40
--HS code:691491000
--Payment: T/T, L/C, Paypal. Western Union
--Main Client: United States. Germany, United Kingdom, India, Poland
--Production Capacity: 10000pcs within 15 days
Terms of Business:
1. Minimum Order Quantity(MOQ): 50pcs
2. Methods of Payment: Generally speaking, we accept with 30% T/T in advance.
70% T/T against the copy of B/L.
if your total amount is above 50000 US dollars, we also accept with L/C
3. Delivery time: No special size & material, we will delivery them within 15 days
Package and Sample:
1. Wooden case+ Carton. Palletize+Carton, also if you have special demand of the package. we also can do that
2. Sample: except with our regular customer, we only supply with one free sample for new customer, for air cost you have to bear by yourself.
Shipping Item:
1. FOB ,CIF,DDP, EXW, we also can accept with it
2.Sea, Air, Truck, all we can accept
Note: For further confirmation, please contact with our sales.
Heat exchanger, RTO,VOC
Honeycomb Monoliths -Heat exchange media, Ceramic Heat Recovery Bed/ heat exchange beds, Thermal storage/ heat exchange elements/media, Ceramic monoliths media to save energy in steel works and metallurgy industry, Regenerative thermal oxidizers (RTO). Honeycomb monolith is the key components of the thermal storage style furnace, it is extensively used in many kinds of heater, sirocco furnace, heat treatment furnace, cracking column, roaster, melting furnace, balance heating stove and etc. This technology can save more than 40-70% of energy.
Honeycomb Ceramic Monolith Charactor:
1)It has advatange of high surface area, high heat capacity, low thermal expension, corrosion resistant and temperature
resistance, widely use in chemical, metallurgical, gas and environmental protection industries. Main application are:
a.Tower packing-high surface area, uniform distribution fluid, high efficiency of mass transfer.
b.Catalyst carrier-reduce the oxidation temperature of VOA in purification of industrial exhaus gas.
c.Thermal regenerative packing-good heat capacity, saving energy 40-70%in RTO system.
d.Gas combustion distributing pl ate-distribute uniformly and make the combustion complete, saving energy more than 10%
e.refractory kiln furniture-low bulk density, good thermal efficiency.
What's the application for Honeycomb Filter?
Used in high temperature regenerative combustion technology of metallurgical machinery industry, industrial waste gas treatment, flue gas of coal-fired power plants and NOX system, incinerator, chemical industry and mining of the toxic gas purification.
2):ZY Ceramic Monolith Technical Data:
| Tpye and Size of the product | |||||||
| Item | 1 | 2 | 3 | 4 | 5 | 6 | |
| Quantity of channels | 5×5 | 13×13 | 20×20 | 25×25 | 40×40 | 50×50 | |
| Channel density, cm-2 | 0.15 | 1 | 2 | 3 | 5 | 11 | |
| Width of channel, mm | 26.3 | 9.2 | 6.4 | 4.9 | 3 | 2.3 | |
| Thickness of wall, m2/m3 | 2 | 1.5 | 1.2 | 1.0 | 0.7 | 0.7 | |
| surface area,m2/m3 | 117 | 278 | 455 | 540 | 825 | 1005 | |
| Free volume% | 77 | 74 | 73 | 67 | 65 | 57 | |
| Sizes, mm | standard sizes:150×150×50/100/150/300 | ||||||
| others:100×100×100×40 | |||||||
3)Physical &Chemical Properties Honeycomb Monoiiths:
| Physical &Chemical Properties Honeycomb Monoiiths | |||||||
| Item | Aiumina | Mullite | Dense cordierite | Porous corierite | Mullire Cordierite | Stoneware | |
| Chemical composltion % | Ai2O3 | 48-55 | 66-72 | 32-36 | 32-37 | 55-65 | 20-26 |
| SiO3 | 40-45 | 25-30 | 45-52 | 46-52 | 28-36 | 68-75 | |
| MgO | / | / | 5/8 | 8/12 | 2.5-3.2 | 0.2-0.3 | |
| K20+Na20+CaO | 4.0-5.5 | ≤1.0 | ≤3.0 | ≤2.0 | ≤1.0 | ≤2.5-4.0 | |
| Density, G/cm3 | 2.7 | 2.9 | 2.4-2.6 | 1.9-2.0 | 2.9-3.2 | 2.3-2.5 | |
| Coefficient of thermal expansion (20-1000°C),×10-6·°C | 5/7 | 5.5-6.5 | 2.5-3.5 | 1.3-2.5 | 2.5-4.0 | 5/7 | |
| Heat capacity (20-1000°C), J/kg·°C | 800-900 | 1100-1300 | 800-1200 | 750-900 | 850-1100 | 840-920 | |
| Thermal conductivity (20-1000°C), W/m·°C | 1.5-2.5 | 1.5-2.0 | 1.5-2.5 | 1.3-1.5 | 1.5-2.3 | 1.0-1.2 | |
| Thermal shock, °C | ≥ 150 | ≥ 350 | ≥ 250 | ≥360 | ≥250 | ≥150 | |
| Max. Working temp.°C | 1300 | 1600 | 1300 | 1300 | 1400 | 1300 | |

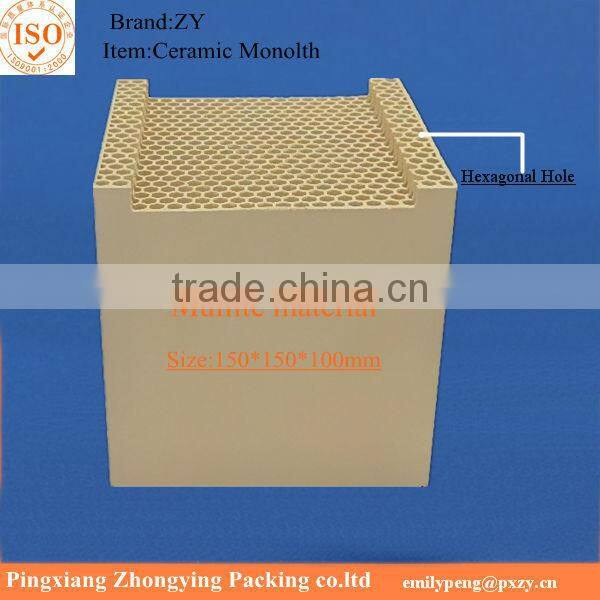

ZY Ceramic Monolith Sample Photo:
For the special size demand, we also can do according to your need
