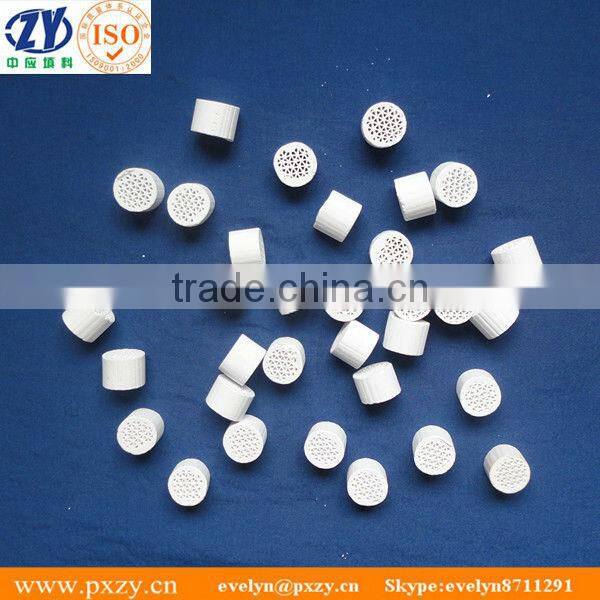

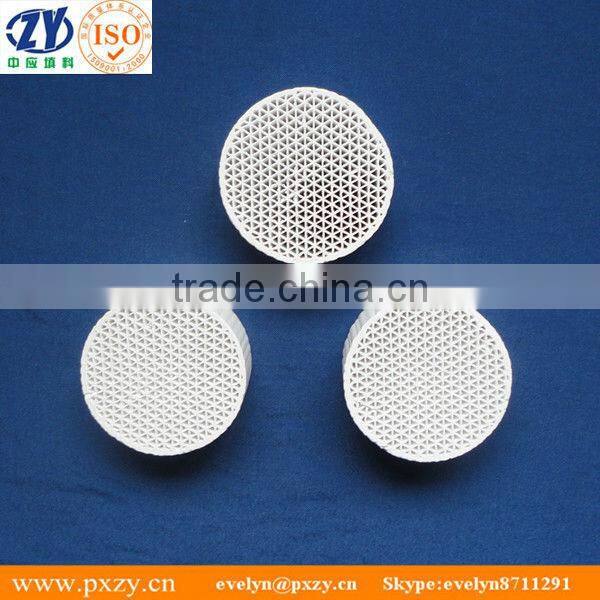

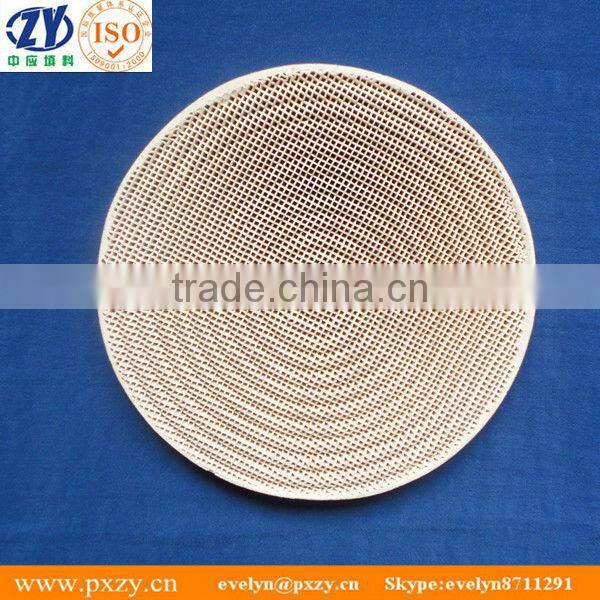

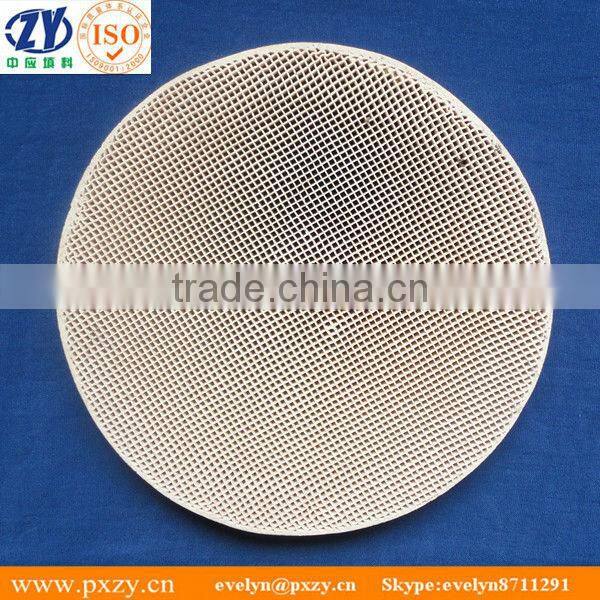

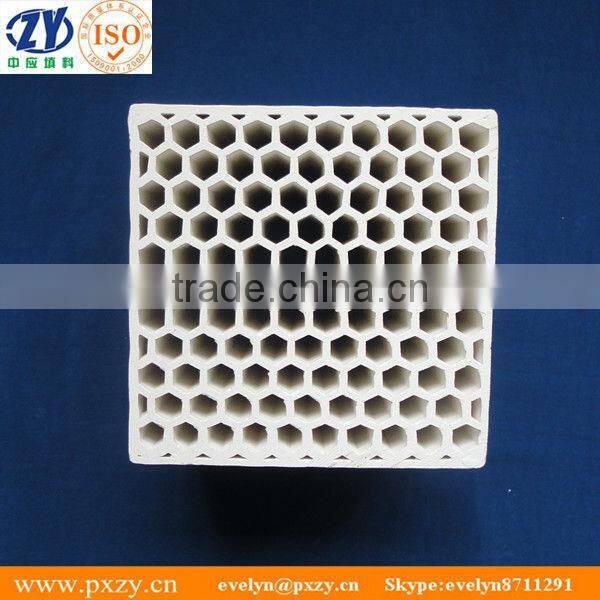

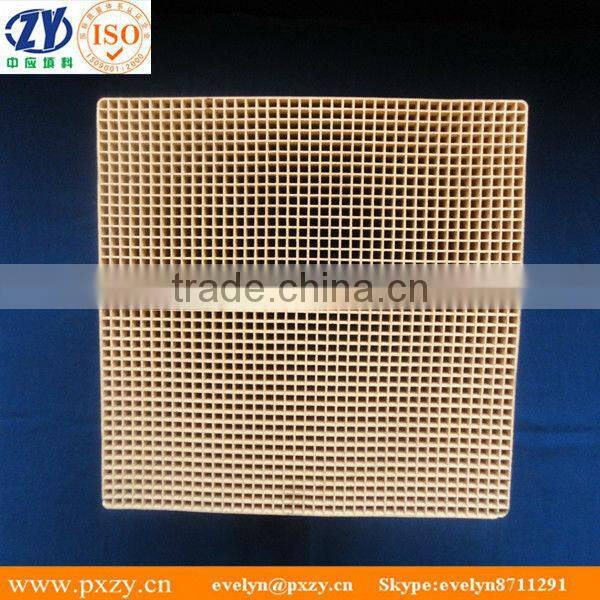

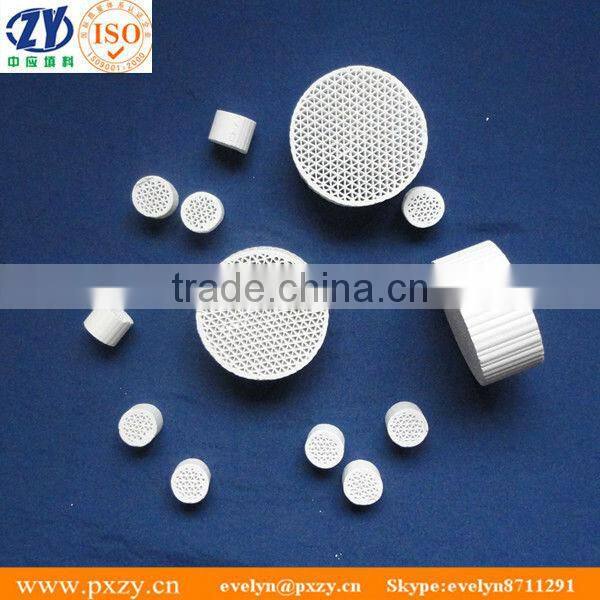

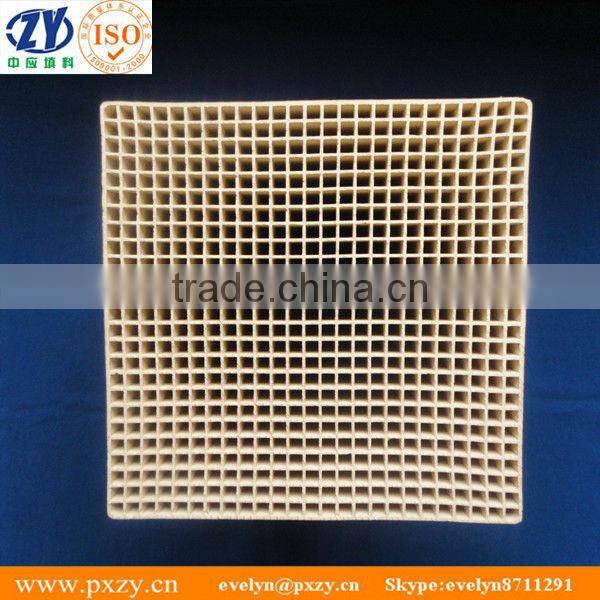

cordierite thermal storage honeycomb ceramics
USD $1.2 - $15
/ Cubic Meter
1 Cubic Meter(Min.Order)
- 2000 Cubic Meter / Cubic Meters per Month
- shanghai shengzhen or any port you need
- T/T Credit Card
You May Like
-
150*150*300mm Thermal Storage Honeycomb Ceramics
-
Honeycomb Ceramics for Gas Stove/Cooker/Burner
-
Alumina Honeycomb Ceramics for Gas Stove/Cooker/Burner
-
Ceramic honeycomb,structured tower packing,with high temperature resistant,alumina honeycomb filter
-
High quality&High temperature Ceramic Monoith, Ceramic Honeycomb Block for RTO/RCO
-
Steel Plant for heating Ceramic Honeycomb Monolith, Ceramic thermal block
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic | Brand Name | zy |
Product Description
Specifications
1)20 years' professional manufacture2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001:2008
Introduction

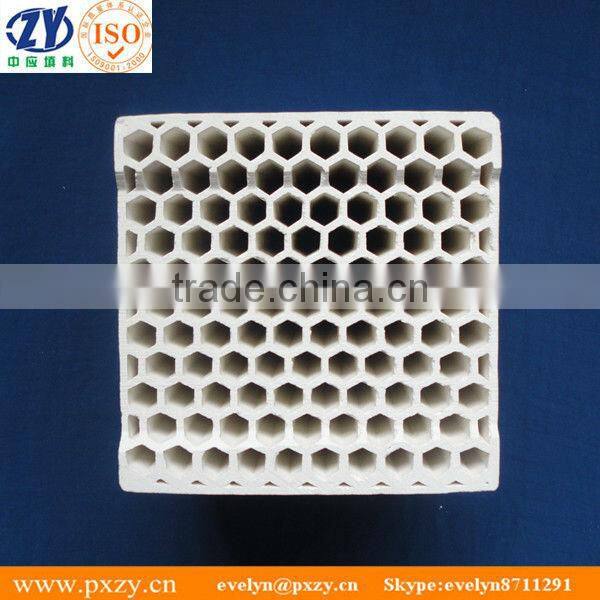

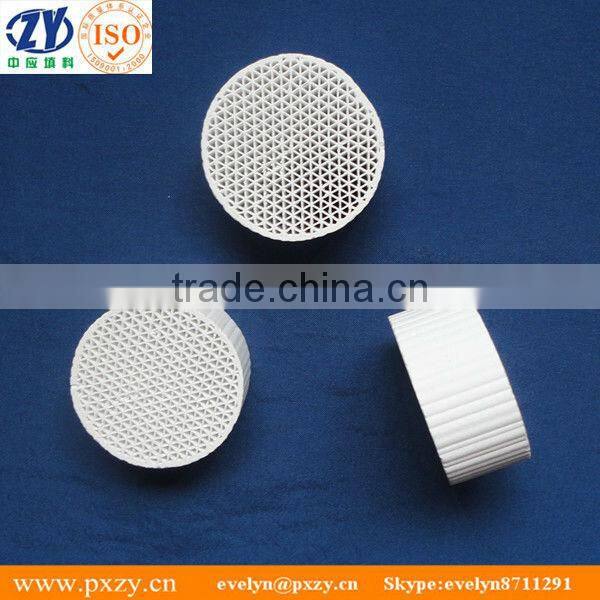

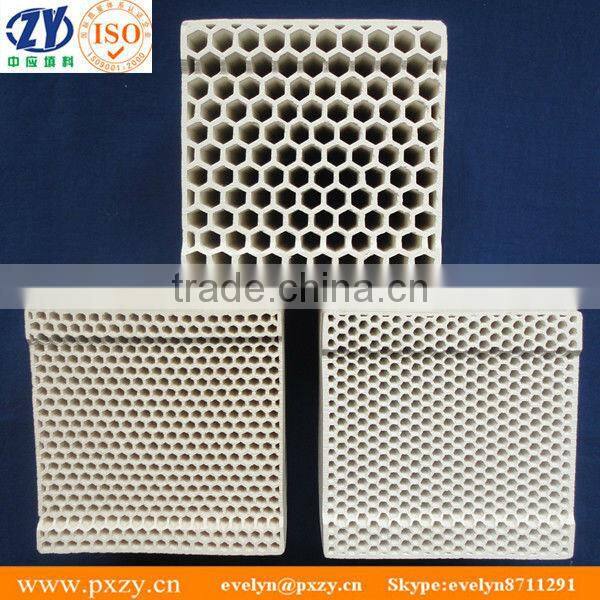

The honeycomb ceramic as heat exchange media is the key part for heat storage HTAC(High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO(Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.
Honeycomb ceramics as heat storage body, by the advantage of large specific surface area, small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat; reducing energy in the strict sense (up to 97% of true thermal energy can be recovery and also it can absorb NOx more than 40%).
Technical Data
| Dimension (mm) | Quantity of cells | Wall thickness (mm) | Width of cell (mm) | Surface area (m2/m3) | Void section (%) | Weight per piece (kg) |
| 150*150*300 | 25*25 | 1 | 4.96 | 580 | 68 | 4.7 |
| 150*150*300 | 40*40 | 0.7 | 3.03 | 891 | 65 | 5.5 |
| 150*150*300 | 50*50 | 0.6 | 2.39 | 1090 | 63 | 6.1 |
| 150*150*300 | 60*60 | 0.5 | 1.99 | 1303 | 63 | 6.3 |
| 150*100*100 | 40*40 | 1 | 2.5 | 784 | 49 | 1.2 |
| 150*100*100 | 33*33 | 1.1 | 3 | 691 | 52 | 1.13 |
| 150*100*100 | 20*20 | 2 | 5 | 392 | 49 | 1.04 |
| 100*100*100 | 40*40 | 1 | 2.5 | 784 | 49 | 0.81 |
| 100*100*100 | 33*33 | 1.1 | 3 | 691 | 52 | 0.75 |
| 100*100*100 | 20*20 | 2 | 5 | 392 | 49 | 0.68 |
Regenerator specification index
| Name | Alumina | Dense Cordierite | Porous Cordierite | Cordierite-Mullite | Dense Alumina | Mullite | Corundum mullite | |
| Density(g/cm3) | 2.0~2.3 | 2.1 ~2.5 | 1.5 ~1.9 | 1.8~2.3 | 2.4 ~2.7 | 2.0 ~2.5 | 2.3 ~2.7 | |
| Coefficient of heat expansion(×10-6K-1)(20~800°C) | ≤5 | ≤3.5 | ≤3.0 | ≤3.5 | ≤5 | ≤5 | ≤6 | |
| Specific Heat (J/Kg.K)(20~1000°C) | 900~1150 | 900~1100 | 900~1100 | 900~1150 | 1000~1150 | 1000~1150 | 1100 ~1300 | |
| Thermal Conductivity (W/m.k) (20~1000°C) | 1.5~2.0 | 1.5~2.5 | 1.2~1.8 | 1.5~2.0 | 1.5~2.5 | 1.5~2.0 | 1.5~2.5 | |
| Impact Thermal Resistance(°C/min) | ≥300 | ≥300 | ≥350 | ≥350 | ≥300 | ≥350 | ≥300 | |
| Max. Working Tem.(°C) | 1350 | 1300 | 1300 | 1320 | 1350 | 1450 | 1550 | |
| Water absorption(%) | 15-25 | ≤2 | 15~25 | 15 ~25 | ≤2 | 15~25 | 15 ~25 | |
| Compressive strength(MPa) | ≥28 | ≥28 | ≥25 | ≥25 | ≥28 | ≥28 | ≥30 | |
| Chemical composition (%) | Al2O3 | 55 ~65 | 25 ~38 | 28 ~38 | 40~52 | 55 ~65 | 60 ~70 | 70 ~80 |
| SiO2 | 25~35 | 50 ~60 | 45 ~55 | 45 ~55 | 25 ~35 | 25 ~35 | 15 ~25 | |
| MgO | 1~3 | 5 ~10 | 11 ~14 | 7~9 | 3~5 | 0 ~1 | 0 ~2 | |
| others | <5 | <5 | <5 | <5 | <5 | <5 | <5 | |
