Monolithic Honeycomb Ceramics

Specifications

1)20 years' professional manufacture
2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001:2008

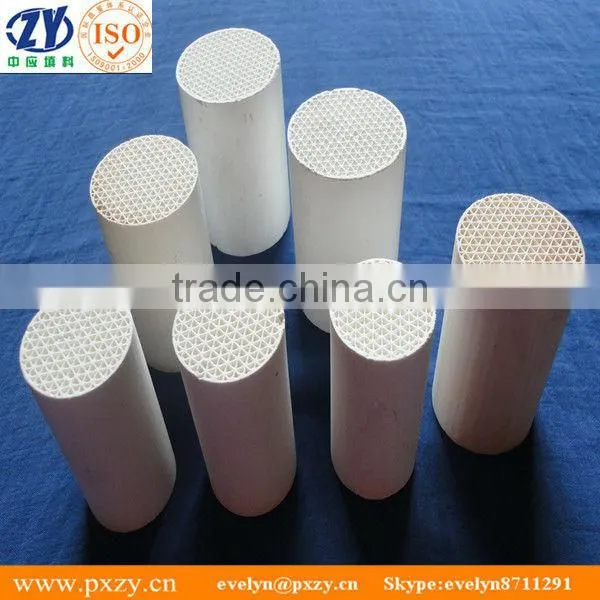

honeycomb ceramic catalyst carrier for automobile



Introduction: Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic substrate body able to withstand high temperatures.

The preferred catalyst support structure is a honeycomb configuration which includes a variety of unobstructed parallel channels sized to through gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.

The ceramic substrate is made of cordierite, The cells density can be 100 cpsi, 300 cpsi , 400 cpsi or 600 cpsi. The usual cpsi (Cell Per Square Inch) for catalytic converter substrate is 400, the shape of ceramic substrate is round, racetrack, ellipse and other special shape according to the customer’s requirement.



Technical Data:

Channel density	Shape	Dimensin (mm)
400cells/square inch2	Round	Φ150 x100
		Φ144 x152.4
		Φ118 x152.4
		Φ115.4 x152.4
		Φ106 x100.4
		Φ103x100
		Φ101.6x152.4
		Φ100x100
		Φ93 x152.4
		Φ83 x152.4
		Φ80x100
		Φ76x50
		Φ41x25
	Racetrack shape(ellipse)	Φ169 X 85.7 x115
		Φ169 X 80.8x115
		Φ148 X 84x152.4
		Φ144.8 X 81.3 x152.4
		Φ127 X 63.5x152.4
		Φ93 X 61x90
		Φ120 .6X 80 x152.4
		Φ143 X 98x152.4
		Φ147 X 95x152.4
		Φ177.8 X114.3x170
	Special shape	144x84x75
		114x105x115
		120.2x108.2x75
		112.2x92x115
		119.5x99.5x115
		122.3x104.4x80











Our advantages:

1. We will supply with the best price in 24 hours.

2. We will supply with all information to u ,about package, weight etc.

3. Except the size we have now , We also can produce special size as u need.

4. We can communicate with u by Fluently and professional English .

5. If u are urgent, U can add my Skype: evelyn8711291 , or Call me at any time: 8615279918717.

6. For all products u buy, our product's warranty is for 2 years.
