Infrared Cordierite Honeycomb Ceramic Plate for BBQ

Infrared Cordierite Honeycomb Ceramic Plate for BBQ thumbnail-1
Infrared Cordierite Honeycomb Ceramic Plate for BBQ photo-1
US$ 0.3 - 3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Plates
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Plates
Application Industrial Ceramic
Material Alumina Ceramic
Model Number honeycomb ceramics
Brand Name zy

Specifications

1)20 years' professional manufacture
2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001:2008

Applications:



Barbecues

Gyro Cookers

Broilers

Pizza Ovens

Convection Ovens

Pressure Fryers

Deep Fat Fryers

Process

Evaporators

Ranges

Gas Ovens

Rotisserie Ovens

Griddles

Space Heaters

Greenhouse CO2

Sear Cookers



Benefits:

    Outstanding Strength

    Uniform radiant burning

    Excellent thermal shock resistance

    Save up to 30~50% energy cost

    Burn without flame, high burning efficiency, low noise

    Reduce the harmful gas such as CO, NOx, etc more than 90%



Performance index:



Item

Index

Specifications

Materials

Cordierite

We can provide you
the product by you desire.

Water absorption

50.4%

Open Porosity

61%

Specific gravity

0.9-1.10Kg/cm3

Thermal expansion coeffecient

1.5-3(×10-6K-1)

Temperature softening

>1280°C

Cooking Surface Temperature

1000-1200°C

CO release

≤0.006%

NOx release

≤5ppm



Sample Dimensions:

Sample Dimensions (mm)

Shape

Square (LxW)

<200×140

Round (Diameter)

50--200

Thickness

11--15

Hole Diameter

1.1--1.8

Holes Interval

2--2.1

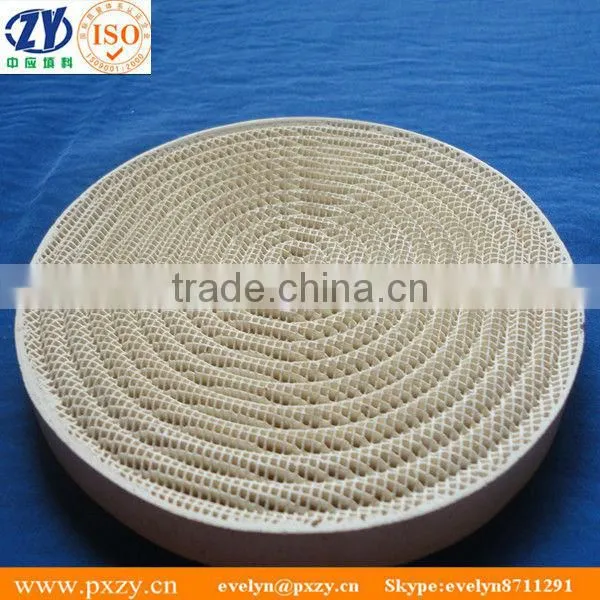

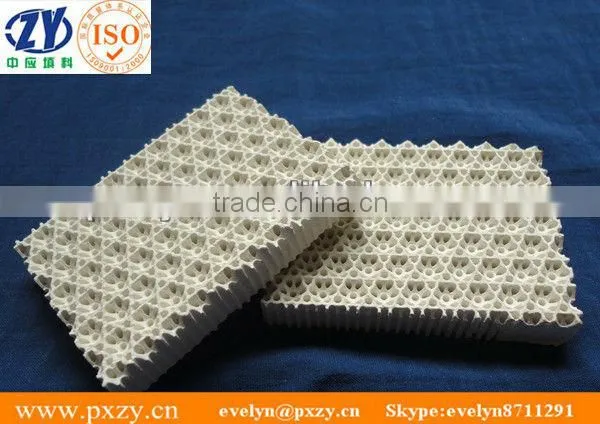

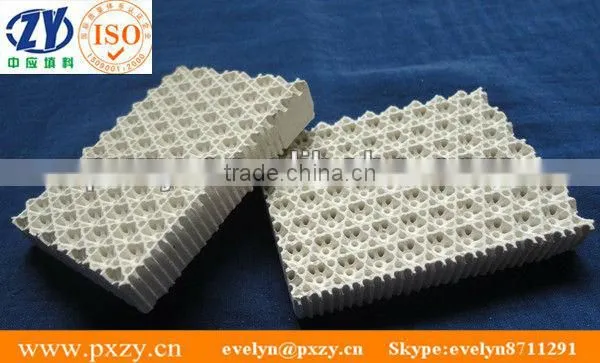

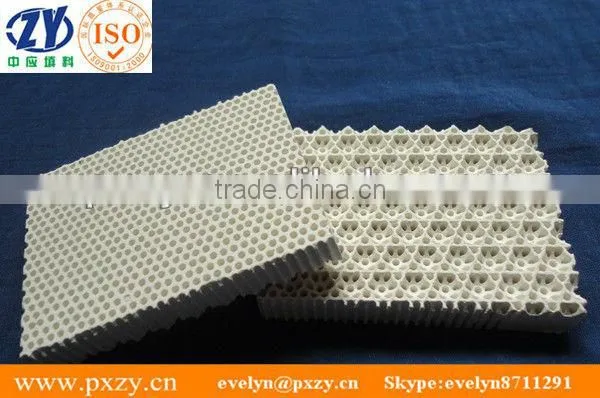

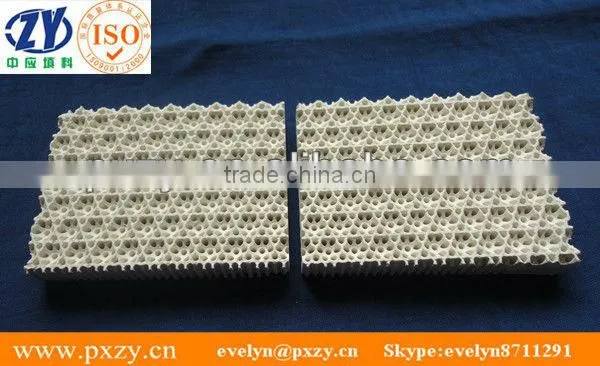

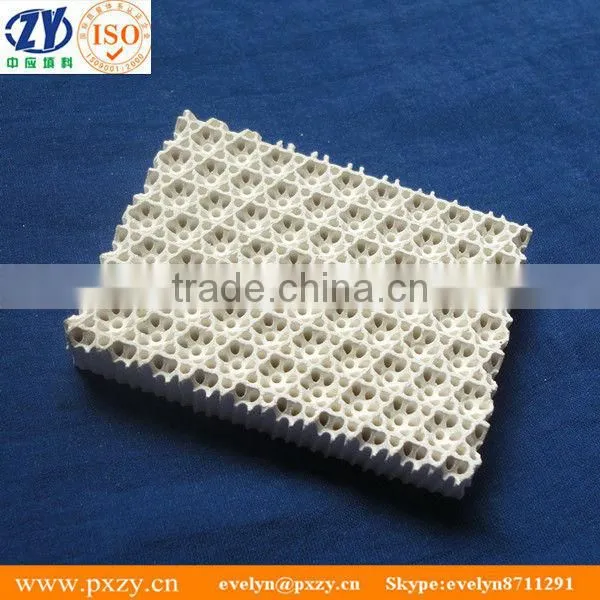

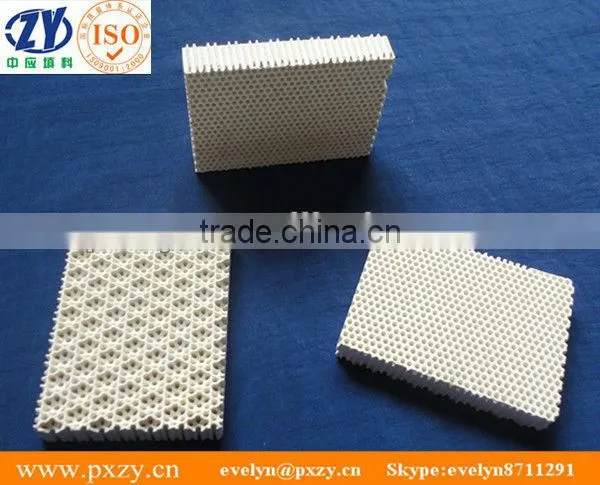

Infrared Honeycomb Ceramic Plate, It's widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost.



Technical data of infrared ceramic plate :



Hole

Round hole

Square hole

Material

cordierite

cordierite

Volume density

0.45-0.65g/L

0.45-0.65g/L

Hole density

300-320 hole/in2

260 hole/in2,280 hole/in2,320 hole/in2,520 hole/in2

Wall thickness

/

0.18-0.23mm,0.28-0.33mm, 0.35-0.40mm

Length of side of hole

/

1.06mm,1.13mm,1.2mm

Hole diameter

1.12mm,1.25mm,1.42mm

/

Distance between Two Holes Axis

1.8mm,2.2mm,2.7mm

1.33-1.59mm

Open hole ratio

33.5-46.5%

63.5-73.5%

Water-absorbing rate(%)

> 46%

> 40%

thermal expansion coefficient

2.0-2.3×10-6

2.0-2.5×10-6

Heat stability

850°C--25°C, do not crack in three times

1200°C--25°C, do not crack in the condition of reduplicate cooling

Highest Working Temperature(°C)

> 1375°C

> 1375°C

Compression Strength

(Lengthways)

>13.0Mpa

>10.0Mpa

Compression Strength

(Horizontal)

>6.0Mpa

>3.0Mpa
