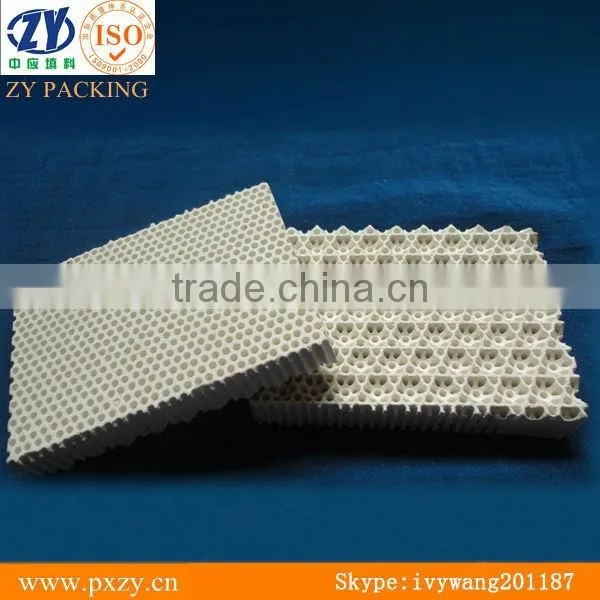

Ceramic Honeycomb Plate ,structured Ceramic Packing as Matrix

Ceramic Honeycomb Plate ,structured Ceramic Packing as Matrix thumbnail-1
Ceramic Honeycomb Plate ,structured Ceramic Packing as Matrix photo-1
US$ 1,000 - 1,500 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Plates
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai and any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Plates
Application Industrial Ceramic
Material Alumina Ceramic
Model Number honeycomb
Brand Name ZY

Specifications

1)20 years professional manufacture
2) Ceramic honeycomb plate
3)Ontime delivery
4)One-stop service
5)ISO9001:2000

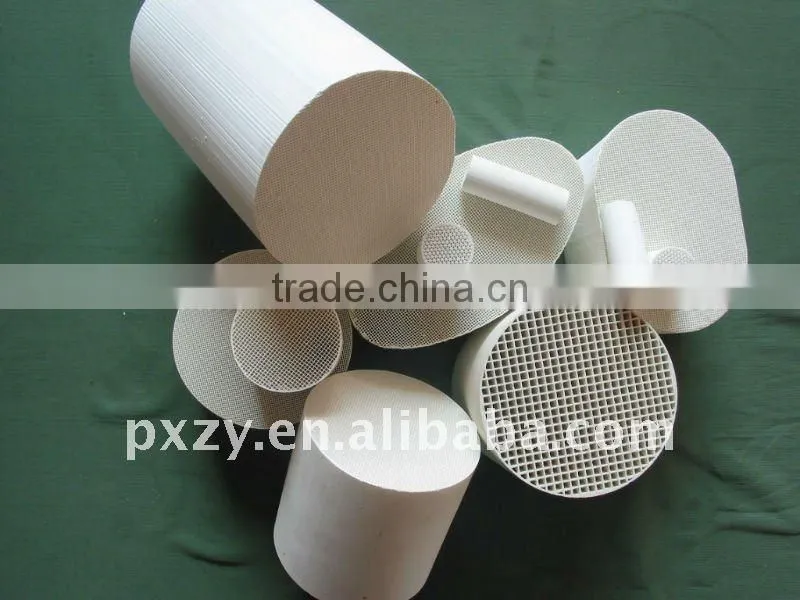

Ceramic honeycomb is one kind of industrial porous ceramics, many passable parallel channels are ramified over its inside. Each individual part made up of these honeycomb ceramics are constructed into the shape with square cells at two ends. Compared with ordinary ceramic materials, they are characterized by low heat expansion ratio, high thermal shock resistance, large specific surface area, anticorrosion etc .



Ceramic honeycomb regenerator is the key and core component on high temperature air combustion technology. It has large specific area, specific heat, low coefficient of thermal expansion.



Application:





It  can be used as heat-exchanger and apply into the RTO of heat recovery devices .



It can be used as catalyst supporter to purify Automobile exhaust and remove

abnormal flavour of gas.

It can be used as filters  and apply to food service industry, environmental protection industry and Metallurgical Industry .





Technical data:





                 Type

 Performance

Alumina porcelain



Mullite porcelain



Dense cordierite porcelain



Loose cordierite

porcelain

Mullite cordierite porcelain

Stoneware porcelain



Chemical composition



AL2O3

48-55

66-72

32-36

32-37

55-65

20-26

SiO3

40-45

25-30

45-52

46-52

28-36

68-75

MgO





5-8

8-12

2.5-3.2

0.2-0.3

K2O+Na2O+CaO

4.0-5.5

≤1.0

≤3.0

≤2.0

≤1.0

2.5-4.0



Density       g/cm3

2.7

2.9

2.4-2.6

1.9-2.0

2.9-3.2

2.3-2.5

Coefficient of thermal expansion

(20-100°C)*10-6·°C

5-7

5.5-6.5

2.5-3.5

1.3-2.5

2.5-4.0

5-7

Calorific capacity(20-1000°C).J/kg·°C

800-900

1100-1300

800-1200

750-900

850-1100

840-920

Thermal conductivity

(20-1000°C)W/m·°C

1.5-2.5

1.5-2.0

1.5-2.58

1.3-1.5

1.5-2.3

1.0-1.2

Thermal shock resistance °C

≥150

≥350

≥250

≥360

≥250

≥150

Max working temperature °C

1300

1600

1300

1300

1400

1300



                             Type

                                    Item

1

2

3

4

5

6

End hole number

5*5

13*13

20*20

25*25

40*40

50*50

Hole density                    cm-2

0.15

1

2

3

7

11

Aperture                      mm

26.3

9.2

6.4

4.9

3.0

2.3

Thickness                     mm

2

1.5

1.2

1.0

0.7

0.7

Surface area                  m2/m3

117

278

455

540

825

1005

Opening rate                    %

77

74

73

67

65

57

Size                          mm

Standard: 150*150*600/450/300/150/100/50

Other: 100*100*100/40





Our advantage:



1.Handle in this line for 20 years,It's a very professional company.

2.Patient Saler can give you best service.

3.Have our own factory,can offer you the best price and one-stop service.

4.ISO9001 certification available.

5.We offer free samples, with shipping and taxes paid by the buyer.the paypal payment way is acceptable for samples.



Ceramic honeycomb plate   alumina honeycomb,ceramic honeycomb filter

 ceramic honeycomb   porous ceramic filter

 Ceramic honeycomb plate ,structured ceramic packing as Matrix



Ceramic honeycomb plate ,structured ceramic packing as Matrix









Welcome to inquiry!
