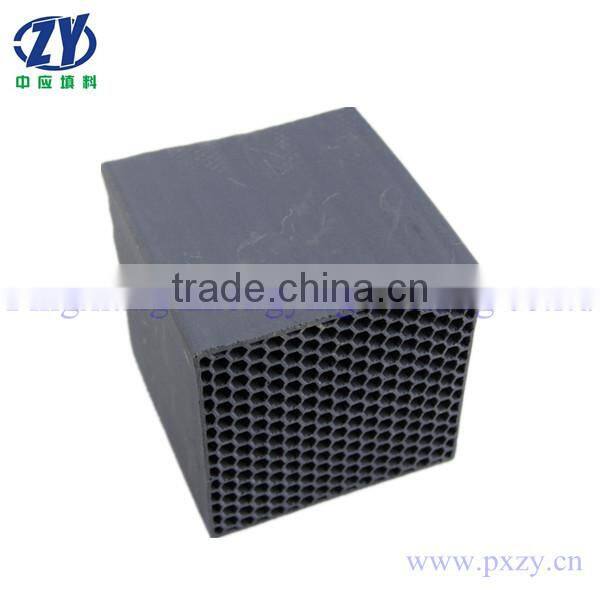

HTAC/RTO ceramic Honeycomb block(SIC material)

Specifications

1.Size:100*100*100,150*150*75/150/300mm
2.Ceramic Honeycomb block material:SIC, high temperature, >1700C
3.ISO9001:2008

                                               SIC Ceramic Heat Storage Block

a.Product Introduction:

     SIC Ceramic heat storage block, compare with other material, like cordierite, Mullite, Corundum and so on,

It can bear more higher temperature, also can use for long service life .



b. Product Application

• The  ceramic Block as heat exchange media is the key part for heat storage HTAC
• (High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO (Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, f
• orging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap
•  incendiary apparatus, covering furnace, high temperature hot blast stove in metallurgical machine building and all kinds of ceramic cellar stove,
• glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove,
• other industrial stove cellar, too.

c. Product Charactor

    ZY Ceramic blocks have the advantages body by offer:

    heat storage boday

    large specific area

    small heat resistant

    quickly exchanging heat; reducing energy in the strict sense



d. Product Technical Data:



Dimension (mm)	Quantity of cells	Wall thickness (mm)	Width of cell (mm)	Surface area (m2/m3)	Void section (%)	Weight per piece (kg)
150*150*300	25*25	1	4.96	580	68	4.7
150*150*300	40*40	0.7	3.03	891	65	5.5
150*150*300	50*50	0.6	2.39	1090	63	6.1
150*150*300	60*60	0.5	1.99	1303	63	6.3
150*100*100	40*40	1	2.5	784	49	1.2
150*100*100	33*33	1.1	3	691	52	1.13
150*100*100	20*20	2	5	392	49	1.04
100*100*100	40*40	1	2.5	784	49	0.81
100*100*100	33*33	1.1	3	691	52	0.75
100*100*100	20*20	2	5	392	49	0.68

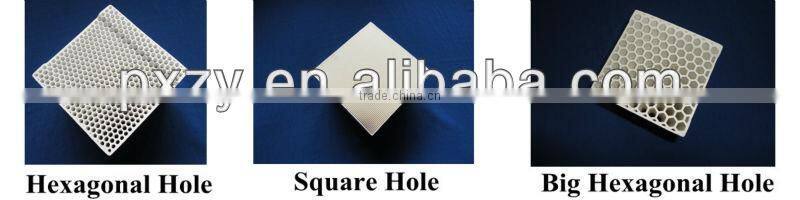

Other Ceramic  Block Production and Sample Photo:



Ceramic Block Product Photo:
