Oval Ceramic Honeycomb Substrate for Nissan,Buick Excelle Car

FOB Price

USD $1.9 - $49.8 / Piece

50 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shenzhen Shanghai or In china
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangxi, China	Type	Ceramic Parts
Application	Industrial Ceramic	Material	Alumina Ceramic
Model Number	As you need	Brand Name	ZY

Product Description

Specifications

1.for waste gas treatment, Car waste gas
2.HIgh temperate resistance,Long service life
3.ISO9001:2008.100-600CPSI,

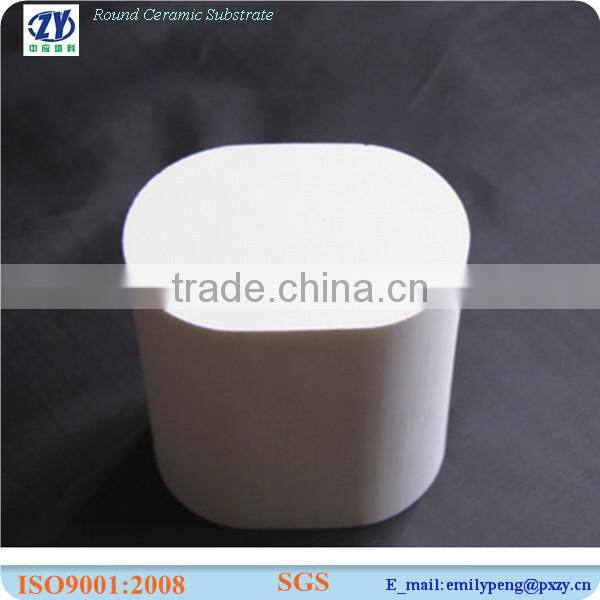

Oval Ceramic Honeycomb Substrate

1. Oval ceramic honeycomb susbtrate mainly size:

Below the length 170mm

2. Oval Ceramic Honeycomb Substrate mainly application car:

Mainly applicable to Nissan. Buick Excelle ,Hongda, etc

3.Product Photo:

Material: cordierite
Cell density: 100-600 cpsi
round, oval, racetrack
Euro II, III, IV
Customization available

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.

4.Specification for other Honeycomb ceramic substrate:

Shape	Hole density (hole/in²)	Size (mm)	Size (inch)
Round	300 CPSI	Φ101.6 x152.4	4×6
Round	300 CPSI	Φ118.4 x100	4.66×3.94
Round	300 CPSI	Φ118.4 x152.4	4.66×6
Round	300 CPSI	Φ150 x100	5.9×3.94
Round	300 CPSI	Φ170 x100	6.69×3.94
Round	300 CPSI	Φ190 x100	7.48×3.94
Round	300 CPSI	Φ210 x130	8.26×5.12
Round	300 CPSI	Φ240 x76.2	9.45×3
Round	300 CPSI	Φ240 x100	9.45×3.94
Oval	300 CPSI	Φ120.6 x 80 x 152.4	4.75×3.15×6
Oval	300 CPSI	Φ144.8 x 81.3 x 152.4	5.7×3.2×6
Oval	300 CPSI	Φ169.7 x 80.8 x 115	6.68×3.18×4.52
Round	400 CPSI	Φ150 x100	5.9×3.94
Round	400 CPSI	Φ144 x 152.4	5.66×6
Round	400 CPSI	Φ118.4 x 152.4	4.66×6
Round	400 CPSI	Φ115.4 x 152.4	4.54×6
Round	400 CPSI	Φ106 x 100	4.17×3.94
Round	400 CPSI	Φ103 x 100	4.05×3.94
Round	400 CPSI	Φ101.6 x 152.4	4×6
Round	400 CPSI	Φ100 x 100	3.94×3.94
Round	400 CPSI	Φ93 x 152.4	3.66×6
Round	400 CPSI	Φ83 x 152.4	3.26×6
Round	400 CPSI	Φ80 x 100	3.15×3.94
Round	400 CPSI	Φ76.2×50	3×1.97
Round	400 CPSI	Φ60×85	2.36×3.34
Oval	400 CPSI	Φ169 x 85.7 x 115	6.65 x 3.37 x 4.52
Oval	400 CPSI	Φ169 x 80.8 x 115	6.65 x 3.18 x 4.52
Oval	400 CPSI	Φ148 x 84 x 152.4	5.82 x 3.3 x 6
Oval	400 CPSI	Φ144.8 x 81.3 x 152.4	5.7 x 3.2 x 6
Oval	400 CPSI	Φ127 x 63.5 x 152.4	5 x 2.5 x 6
Oval	400 CPSI	Φ93 x 61 x 90	3.66 x2.4 x 3.54
Oval	400 CPSI	Φ120.6 x 80 x 152.4	4.75 x 3.15 x6
Oval	400 CPSI	Φ143 x 98 x 152.4	5.63 x 3.86 x 6
Oval	400 CPSI	Φ147 x 95 x 152.4	5.78 x 3.74 x 6
Oval	400 CPSI	Φ177.8 x 114.3 x 170	7 x 4.5 x 6.7
Abnormity	400 CPSI	144 x 84 x 75	5.67 x 3.3x 2.95
Abnormity	400 CPSI	114 x 105 x 115	4.49 x 4.13 x 4.52
Abnormity	400 CPSI	112.2 x 92 x 115	4.42 x 3.62 x 4.52
Abnormity	400 CPSI	119.5 x 99.5 x 115	4.7 x3.92 x 4.52
Abnormity	400 CPSI	120.2 x 108.2 x 75	4.73 x 4.26 x 2.95
Abnormity	400 CPSI	122.3 x 104.4 x 80	4.81 x 4.11 x 3.15

Note:we can be customized as per client's requirements.

Order demand:

1. CPSI,Size

2. Coating or not, Coating Proportion

3. Qty

4.FOB or CIF price

Honeycomb Substrate Technical Data:

Manufacture progress:
