Specifications
1.Size:100*100*100,150*150*75/150/300mm2.Ceramic Honeycomb block material:Cordierite,Mullite,Alumina,Corundum
3.ISO9001:2008
Heat Storage Honeycomb Ceramic Block as heat exchange media is the key part for heat storage HTAC
Heat Storage Honeycomb Ceramic Block Application as bellows:
- (High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO (Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, s
- teel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.
And also have the charactor
as heat storage body, by the advantage of large specific surface area, small heat resistance, good thermal conductivity, excellent thermal shock resistance,
realize quickly exchanging heat; reducing energy in the strict sense (up to 97% of true thermal energy can be recovery and also it can absorb NOx more than 40%).

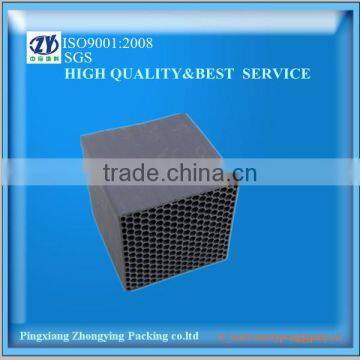

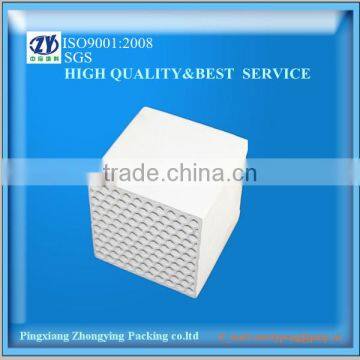

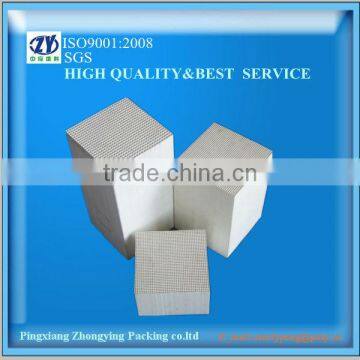

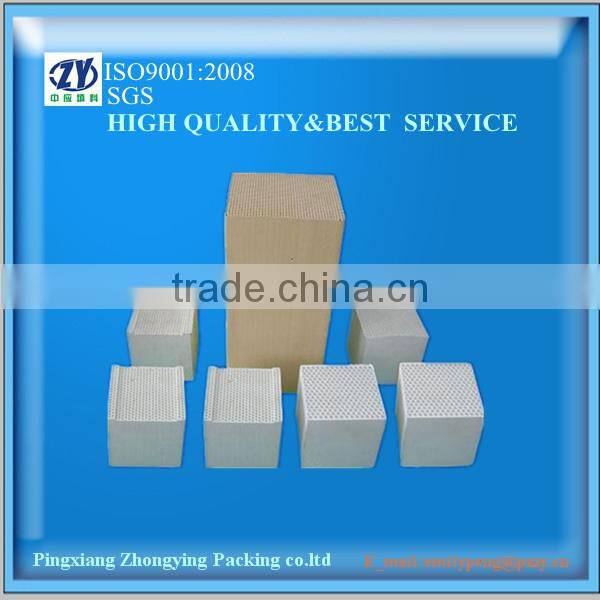

PRODUCT PHOTO:
PRODUCT TECHNICAL DATA:
| Dimension (mm) | Quantity of cells | Wall thickness (mm) | Width of cell (mm) | Surface area (m2/m3) | Void section (%) | Weight per piece (kg) |
| 150*150*300 | 25*25 | 1 | 4.96 | 580 | 68 | 4.7 |
| 150*150*300 | 40*40 | 0.7 | 3.03 | 891 | 65 | 5.5 |
| 150*150*300 | 50*50 | 0.6 | 2.39 | 1090 | 63 | 6.1 |
| 150*150*300 | 60*60 | 0.5 | 1.99 | 1303 | 63 | 6.3 |
| 150*100*100 | 40*40 | 1 | 2.5 | 784 | 49 | 1.2 |
| 150*100*100 | 33*33 | 1.1 | 3 | 691 | 52 | 1.13 |
| 150*100*100 | 20*20 | 2 | 5 | 392 | 49 | 1.04 |
| 100*100*100 | 40*40 | 1 | 2.5 | 784 | 49 | 0.81 |
| 100*100*100 | 33*33 | 1.1 | 3 | 691 | 52 | 0.75 |
| 100*100*100 | 20*20 | 2 | 5 | 392 | 49 | 0.68 |
1. Carton+Pallet
2. Wooden Case
Why Choice Us? What Can we do for you?
1. Quality: ISO9001:2008 certification, Strictly Quality Control Department,. Self Product Inspection Ability.
We will supply with the best quality products for our customer
2. Production: We have the advanced equipment and professional worker, Can finish with your goods within the shortest time.
3. Experience: Our factory have more than 10 years experience, and our worker have more than five working professional years experience.All of them Can give you professional suggestion and response your question within 24 hours
4. Warranty: All products under one year or two years warranty, You can rest assured to buy our products
Pingxiang Zhongying Packing Co., Ltd., which is located in Pingxiang City, Jiangxi Province, the hometown of ceramics, is a manufacturer of petrochemical and environmental protection packing and catalyst, such as molecular sieves, activated aluminum, inert alumina ceramic ball, ceramic packing, plastic packing, metallic packing, honeycomb ceramics, catalyst bed support media, activated carbon, petrochemical additives, ceramic filter, water treatment filter etc.
Our factory is situated in Xiangdong Industrial Park in Pingxiang City,and it covers an area of 70000 square meters, with a construction area of 30000 square meters and fixed assets worth RMB17.5 million.For better development and international standards, our company has passed ISO9001-2000 quality system certification. Our product has been widely used in petroleum, chemical industry, metallurgy, electric power, environmental, pharmaceutical, aerospace, aviation and other industries. Our product sells well at home and abroad
1.a. Are you Trading Company or Factory:
b. We have more than 20 experience year production in this line .
2.a. What's your production ability for one month?
b. We can product 1000 metric ton for one month .
3.a. What's your MOQ?
b. 100pcs is available .
4.a. What's your shipping port?
b. Shenzhen,Shanghai and any port in China
5.a. What's your Payment Terms?
b.L/C,D/A,D/P,T/T,Western Union
