Home > Products > Crushing Equipment > Sand Washing Machine for Beneficiation Procution Line
Sand Washing Machine for Beneficiation Procution Line
- 15 Set / Sets per Month
- TIANJIN/QINGDAO PORT
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Motor Type: | AC Motor | Power(W): | 5.5-18.5 kw |
Capacity(t/h): | 20-350 | Place of Origin: | Henan, China | Brand Name: | MS |
Model Number: | MS260 | Certification: | ISO9001:2008 | Warranty: | 1 YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude package Ocean shipping ordinary package
Product Description

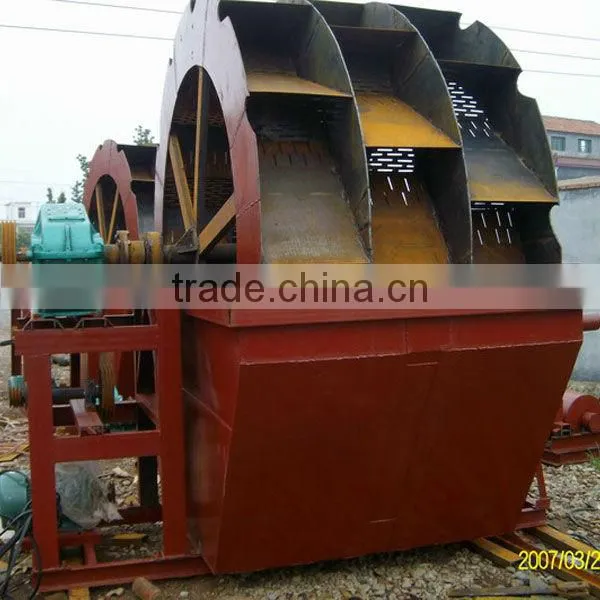

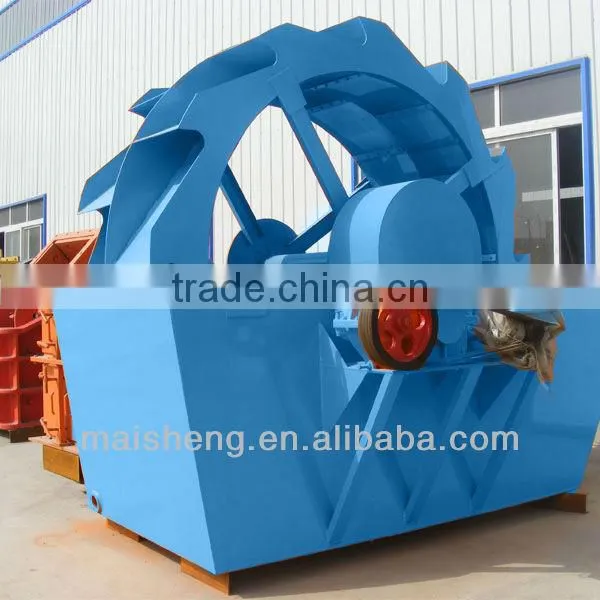

Sand Washing Machine for Beneficiation Procution Line
Sand Washing Machine Usage and Application

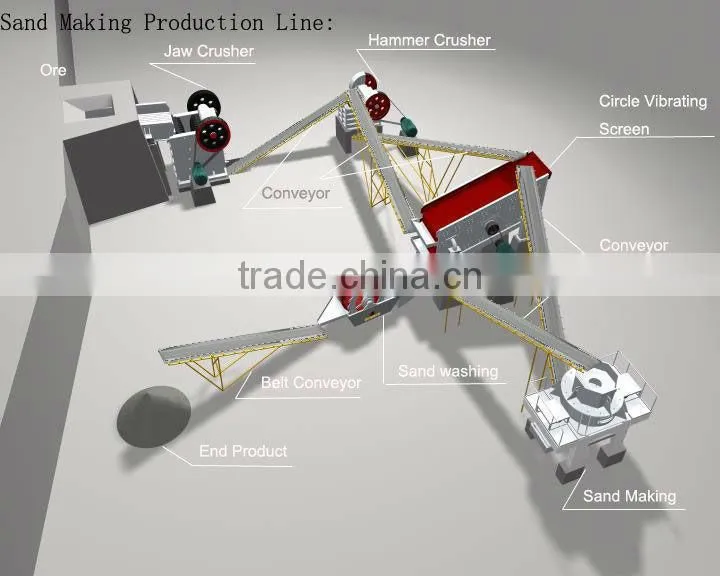

The sand washing machine is a efficient sand washing equipment adopting wheel-like structure, sand washer works with sand making machine in the sand making plant. sand washer can wash the stone powder and impurity from the mixed sand that made by sand making machine, which can improve the sand quality. Sand washer is widely used in washing, grading and dehydrating in the industry of stone factories, construction site and quartz sand in glass factory.
sand washing machine is widely used for sand washing, separating, and cleaning in the construction of high speed road, high speed railway, hydroelectric project, public works and so on.
Sand Washing Machine Features
1. High efficiency, reasonable structure, high capacity and low consumption
2. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimized, and the grade and fineness can meet the required standard
4. Sand Washing machine is with long service life and low maintenance costs.
Sand Washing Machine Main Specifications
Model | Impeller Size | Max. Feeding Size | Capacity | Motor Power | Weight | Overall |
MS2610 | Φ2600×1000 | 10 | 20-50 | 5.5 | 2.68 | 3255×1982×2690 |
MS2816 | Φ2800×1600 | 10 | 30-60 | 7.5-11 | 3.05 | 3540×3000×2880 |
MS3016 | Φ3000×1600 | 10 | 50-120 | 11-15 | 3.26 | 3845×3000×3080 |
MS 3620 | Φ3600×2000 | 10 | 60-150 | 18.5 | 4.3 | 4500×3206×3480 |
Model | Spiral Diameter | Number | Feeding | Capacity | Water Consumption | Motor Power | Overall Dimensions | Weight |
MS -762 | 762 | 1 | <10 | ≤75 | 9-63 | 11 | 9070×2650×1530 | 5.20 |
2 MS -762 | 762 | 2 | <10 | ≤140 | 20-150 | 2×11 | 9070×3250×1530 | 7.45 |
MS -914 | 914 | 1 | <10 | ≤100 | 10-80 | 15 | 9070×2650×1638 | 6.35 |
2 MS -914 | 914 | 2 | <10 | ≤200 | 60-300 | 2×15 | 9070×3510×1638 | 11.30 |
MS -1118 | 1118 | 1 | <10 | ≤175 | 13-168 | 22 | 9070×2830×1900 | 12.70 |
2 MS -1118 | 1118 | 2 | <10 | ≤350 | 60-600 | 2×22 | 9070×3890×1900 | 16.50 |
....
Company Profile
HENAN MACHINERY & EQUIPMENT COMPANY LIMITED is a manufacturer of machines with well-equipped testing equipment and strong technical force.We own import & export rights and mainly produces large and medium-sized mining machinery, refining equipment,briquetting machine and girder transporting vehicle. There are 6 branches company and a research institute,Now, We integrate the research, development, production, and sale together.
Our office is located at No. 1202, Floor 12, Unit 1, Bldg. No. 24, Shangwu Neihuan Road, Zhengdong New District.Our headquarters, covering 65,000 square meters,owning more than 60 sets of heavy processing equipment There are more than 800 workers including 48 administrators with secondary and senior occupational titles and engineering technicians in our head office.
We lay much emphasis on the quality and clients. We serve clients
with the quality guideline of being responsible for every working procedure,product and client. All of the products have passed the authentication of ISO9001.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in machinery and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs,sales to Iran, Pakistan, India, Vietnam, Singapore, Russia,Australia and have long-term customers to cooperate with us.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
