High capacity &Good quality Sand washing machine
Key words:
Sand Washer Sand Making Plant ,Sand Product Line , Sand Washing Machine,Silica Sand Washing Machine,River Sand Washing Machine , Sand Washing Plant, Sand Washing Machine Price,Sand Screw Washer
Introduction :

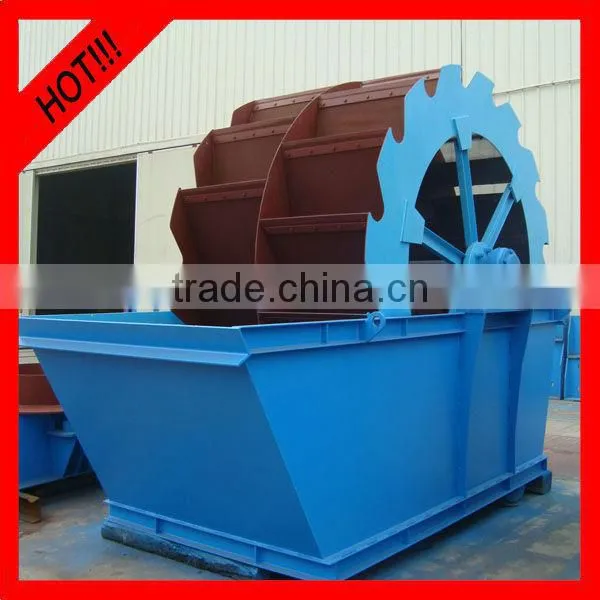

Sand Washing Machine is a kind of water washing equipment to be matched with the sand making machine .This series XSD Sand Washing Machines are a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand. XSD series Sand making machine is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factorys quartz sand and refilling pressure sand.
Working Principle of :
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Characteristics of :
1.Reasonable structure,
2. large capacity,
3.low consumption,
4.little loss of the sand during the washing process,
5. low failure rate.Main Technical Data of sand washing machine
Main Technical Parameters Data :
| Model | XS2200 | XS2600 | XS2900 | XS3500 |
| Dia of wheel bucket(mm) | 2200 | 2600 | 2900 | 3500 |
| speed(r/min) | 1.0-2.0 | 1.0-2.0 | 0.8-1.5 | 0.8-1.2 |
| capacity(t/h) | 15-30 | 20-50 | 50-100 | 120-200 |
| Power (kw) | 4 | 5.5 | 7.5 | 11 |
| weight(kg) | 4300 | 5600 | 8100 | 9900 |
| size (mm) | 3150×1910×2280 | 3520×2390×2690 | 3820×2640×3200 | 4420×2930×3800 |
Package: Nude packing or by wooden case in container,except too heavy and big,once exceed container limit should shipped by bulk carrier.
Sand Washer Sand Making Plant ,Sand Product Line , Sand Washing Machine,Silica Sand Washing Machine,River Sand Washing Machine , Sand Washing Plant, Sand Washing Machine Price,Sand Screw Washer
More piture :
Where does it used for:
About What we have in the warehouse:
We care what clients care mostly:
What certificate we have:
...
