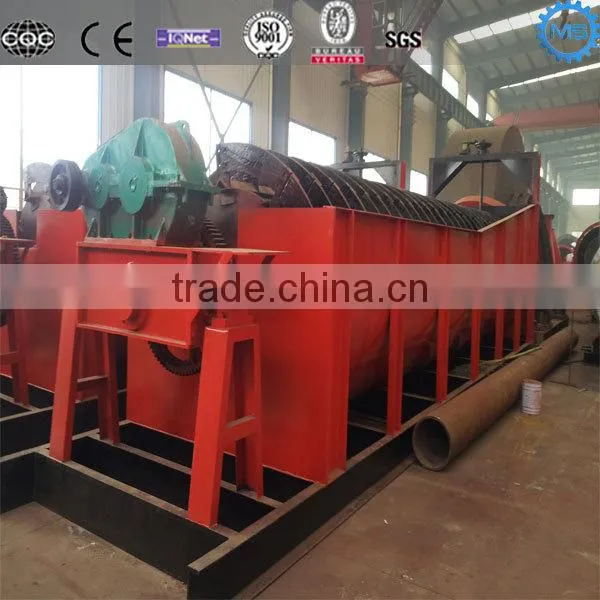

Screw Sand Washing Machine Used For Sand Factory
The Related Key Words:
Screw Classifier,Ore Washing Machine, High Quality Screw Washer Classifier,Screw Sand Washing Machine,Manganese Washing Machine
Mainly Types:
High-dam single spiral.
High-dam double spiral.
Submerged single spiral
Submerged double spiral classiffier.
1.Brief Introduction of Screw Sand Washer , Screw Classifier :
Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral
sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process. This machine
has features of simple structure, reliable and convenient operation, etc.
2.Structure of Screw Sand Washer , Screw Classifier : We produce high weir type,single and double spiral,and immersed single and double spiral classifiers.The seat of
the machine features channel steel material,while the body is armor plated and the spiral axie is made of cast iron
for durability.The machine's lifting equipment can be classified as manually or electronically.
3.Application of Screw Sand Washer , Screw Classifier : Spiral classifier are widely used in the distribution of ore in closed-circuit with ball mill in mining processing,in order to get a certain degree fineness of ore particles,meanwhile
increasing the efficiency of grinding.This machine can also be used to washed sand classify ore sand and play
other functions.
4.Feature of Screw Sand Washer , Screw Classifier :
This product features simple structure,reliable working conditions and convenient operation.
5.Principle of Screw Sand Washer , Screw Classifier :
Different grains have different specific gravity and sedimentation rates in liquid,this product allows the fine ore to
flow in the water,while coarse ore sinks to the bottom.This classifier can filter materials and send coarse materials
to the feeding mouth and dischanrge fine materials from the pipe.
6.Technical parameters of Screw Sand Washer , Screw Classifier :
Model |
Spiral Dia. |
Spiral Speed |
Through Length |
Motor Power(kw≤) |
Dimension(mm≤) |
Weight(t) |
|||
Driving |
Lifting |
L |
W |
H |
≤ |
||||
FG-3 |
300 |
12-30 |
3000 |
1.1 |
---- |
3850 |
490 |
1140 |
0.7 |
FG-5 |
500 |
8-12.5 |
4500 |
1.1 |
---- |
5430 |
680 |
1480 |
1.9 |
FG-7 |
750 |
6-10 |
5500 |
3 |
---- |
6720 |
980 |
1820 |
3.1 |
FG-10 |
1000 |
5-8 |
6500 |
5.5 |
---- |
7590 |
1240 |
2380 |
4.9 |
FC-10 |
8400 |
7.5 |
---- |
9600 |
1240 |
2680 |
6.2 |
||
FG-12 |
1200 |
4-6 |
6500 |
7.5 |
2.2 |
8180 |
1570 |
3110 |
8.5 |
FC-12 |
8400 |
7.5 |
2.2 |
10370 |
1540 |
3920 |
11.0 |
||
2FG-12 |
6500 |
15 |
4.4 |
8230 |
2790 |
3110 |
15.8 |
||
2Fc-12 |
8400 |
15 |
4.4 |
10370 |
2790 |
3920 |
17.6 |
||
FG-15 |
1500 |
4-6 |
8300 |
7.5 |
2.2 |
10410 |
1880 |
4080 |
12.5 |
FC-15 |
10500 |
7.5 |
2.2 |
12670 |
1820 |
4890 |
16.8 |
||
2FG-15 |
8300 |
15 |
4.4 |
10410 |
3390 |
4080 |
22.1 |
||
2FC-15 |
10500 |
15 |
4.4 |
12670 |
3370 |
4890 |
30.7 |
||
FG-20 |
2000 |
3.6-5.5 |
8400 |
11-15 |
3 |
10790 |
2530 |
4490 |
20.5 |
FC-20 |
12900 |
11-15 |
3 |
15610 |
2530 |
5340 |
28.5 |
||
2FG-20 |
8400 |
22-30 |
6 |
11000 |
4600 |
4490 |
35.5 |
||
2FC-20 |
12900 |
22-30 |
6 |
15760 |
4600 |
5640 |
48.7 |
||
FG-24 |
2400 |
3.67 |
9130 |
15 |
3 |
11650 |
2910 |
4970 |
26.8 |
FC-24 |
14130 |
18.5 |
4 |
16580 |
2930 |
7190 |
41.0 |
||
2FG-24 |
9130 |
30 |
6 |
12710 |
5430 |
5690 |
45.8 |
||
2FC-24 |
14130 |
37 |
8 |
17710 |
5430 |
8000 |
67.9 |
||
2FG-30 |
3000 |
3.2 |
12500 |
40 |
8 |
16020 |
6640 |
6350 |
73.0 |
2FC-30 |
14300 |
--- |
--- |
17091 |
--- |
8680 |
84.8 |
||

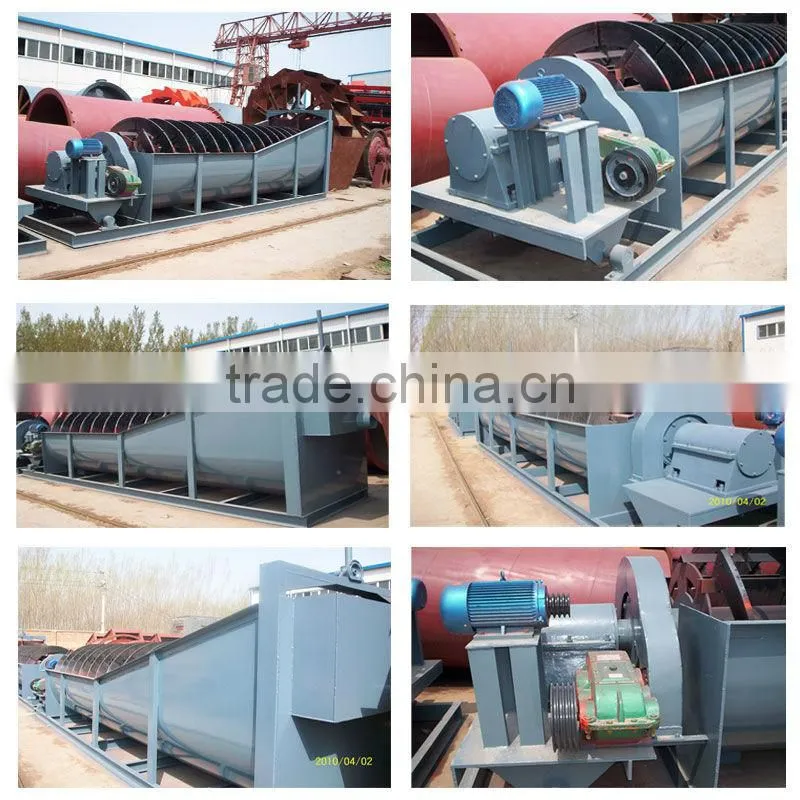

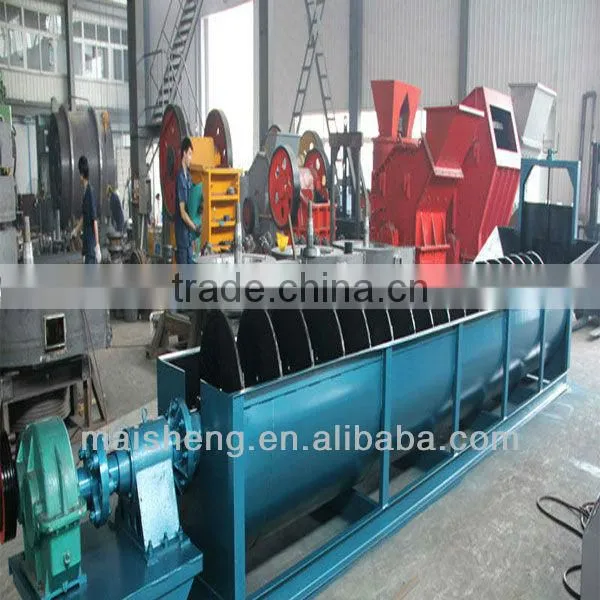

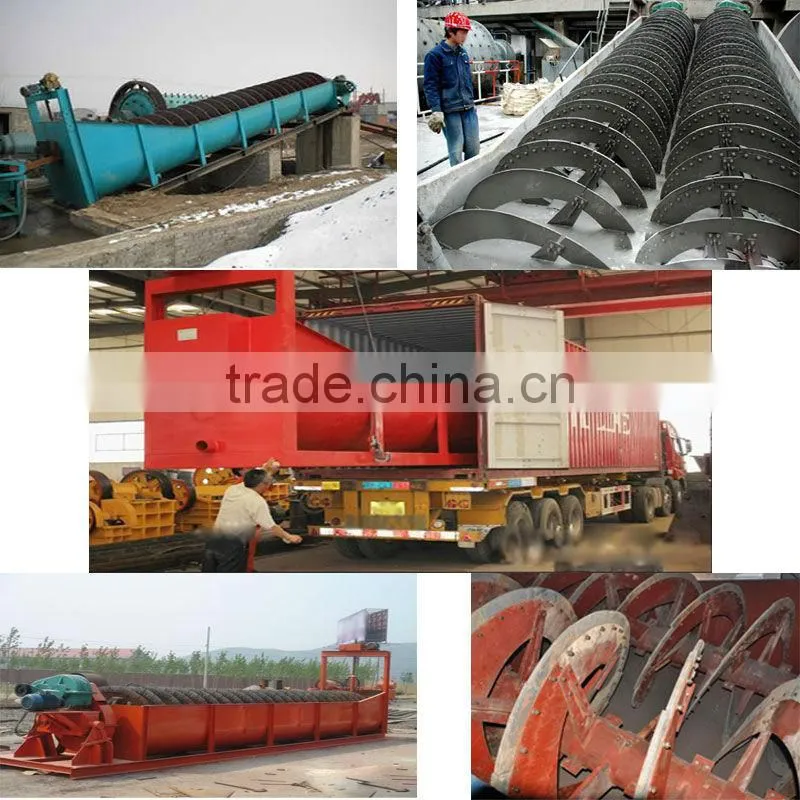

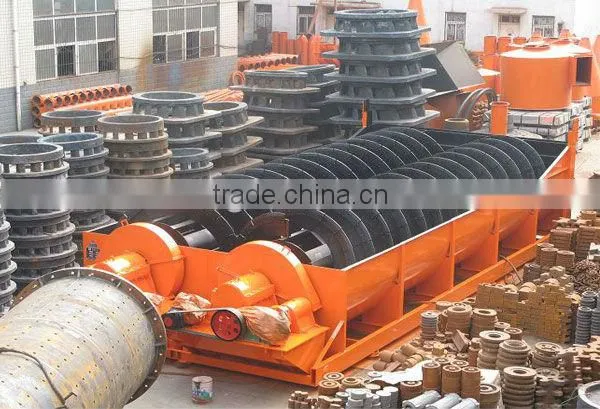

More Photos for Screw Spiral Classifier Separator:

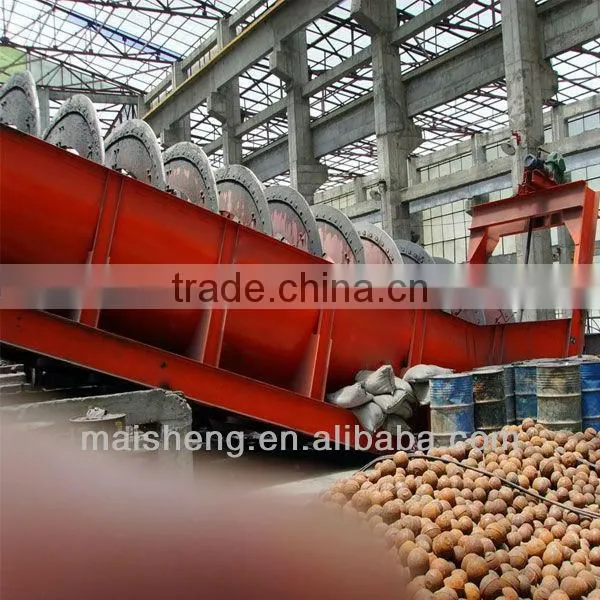

Usage for Ore Floation Production Line :
About Us:
Our Certificate :
In order to give you a responsible quotation, you can inform us the following information:
1. What’s the material you are going to deal with?
2. What Spiral diameter do you want?
3. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
Why Choose Us?
Services:
Pre-sales Service
1.Offering comprehensive technical and business consultation services;
2.Proposing th e most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After-sales Service
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging;
....
