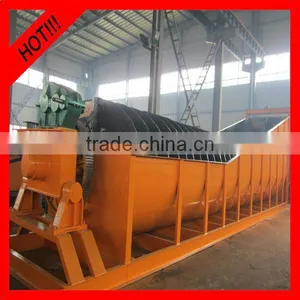

2013 High Efficiency Spiral Classifier
1.classifying mineral and with ball mill to form closed cycle in beneficiation plants
2.classifying mineral sand and fine mud in gracity benefication plant
3.granularity classifying of ore magma.in the process of metal benefication
4. ore washing precess for deslinming and dewatering
Types:
High-dam single spiral.high-dam double spiral.submerged single spiral
and submerged double spiral classiffier.
Technical Parameters:
Type |
Model |
Screw diameter (mm) |
Screw speed (r / min) |
Sink Length (mm) |
Motor Power (kw) |
Machine weight (t) |
|
Transmission |
Lifting |
||||||
|
High-weir-type classifier |
FG-3 |
300 |
12-30 |
3000 |
1.1 |
---- |
0.7 |
FG-5 |
500 |
8-12.5 |
4500 |
1.1 |
---- |
1.6 |
|
FG-7 |
750 |
6-10 |
5500 |
3 |
---- |
2.7 |
|
FG-10 |
1000 |
5-8 |
6500 |
5.5 |
|
4.0 |
|
FG-12 |
1200 |
4-6 |
6500 |
7.5 |
2.2 |
8.5 |
|
2FG-12 |
1200 |
4-6 |
6500 |
15 |
4.4 |
15.8 |
|
FG-15 |
1500 |
4-6 |
8300 |
7.5 |
2.2 |
12.5 |
|
2FG-15 |
1500 |
4-6 |
8300 |
15 |
4.4 |
22.1 |
|
FG-20 |
2000 |
3.6-5.5 |
8400 |
11-15 |
3 |
20.5 |
|
2FG-20 |
2000 |
3.6-5.5 |
8400 |
22-30 |
6 |
35.5 |
|
FG-24 |
2400 |
3.67 |
9130 |
15 |
3 |
25.7 |
|
2FG-24 |
2400 |
3.67 |
9130 |
30 |
6 |
45.8 |
|
2FG-30 |
3000 |
3.2 |
12500 |
40 |
8 |
73 |
|

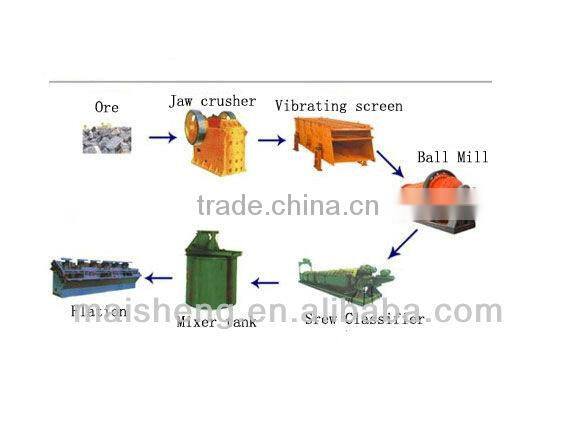

Using in Beneficiation Production Line:

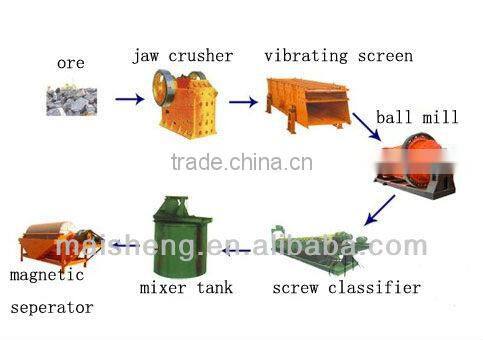

Usage for Magnetic Ore separate Production Line:

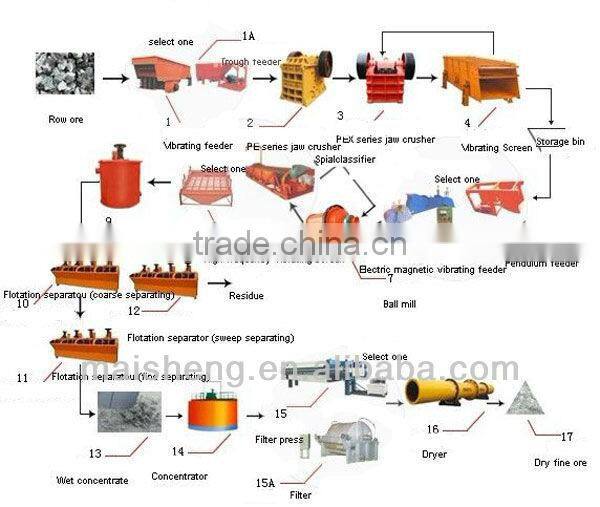

Usage for Ore Floation Production Line :
In order to give you a responsible quotation, you can inform us the following information:
1). What's the material you are going to deal with?
2). What's the granularity of the material?
3). What's the granularity of the final products are you going to achive?
4). What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
....
