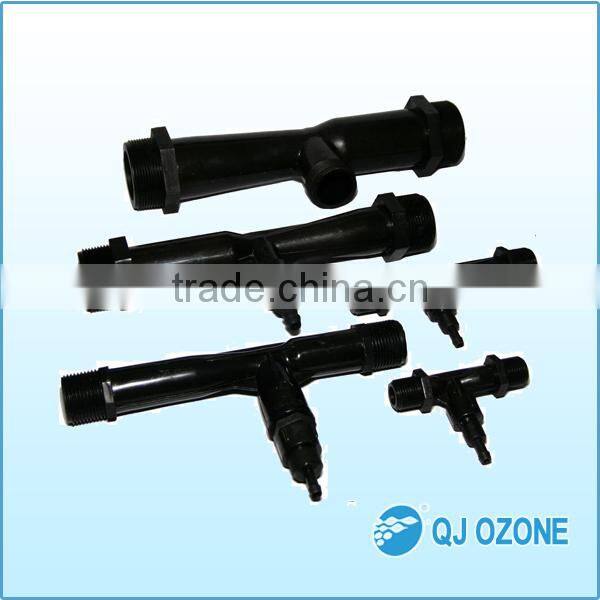

ozone generator accessory venturi injection
- 10000 Set / Sets per Month
- Guangzhou/Shenzhen/HK
- Credit Card
You May Like
-
ozone appliance , ozone generator parts , ozone generator cell
-
Completed spare parts Ozone generator quartz glass tube ozone cell
-
Industry standard Quartz glass tube ozone generator cell spare parts
-
ozone generator quartz tube , ozone generator spare parts
-
Control Medium Temperature ac220v valve / solenoid valve 220v/110v ac
-
12v solenoid valve 3/4 inch/ water solenoid valve for hot sale
Product Details
| Place of Origin | Guangdong, China | Brand Name | QuanJu | |
| Model Number | IJ1/2 |
Product Description
Description

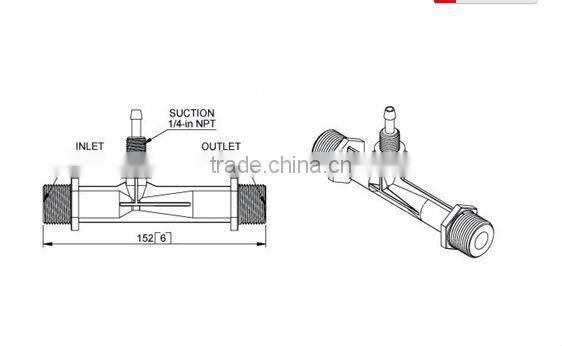

The ozone venturi injector is made of three parts, which is tressurized pipe, the suction chamber, and the nozzle. It is a gas water hybrid approach which use the venturi principle. The ozone venture produce the negative pressure which use the high-speed water flow the throat of the mixing tube, cause the vacuum state of the suction chamber, under the influence of the pressure difference, the input-gas is sucked to the mixing tube. The water is stir strongly, gas is smashed to the small air bubble, turn into Gas-water emulsion of the mist, finally, be erupt through the spread port of the mixing tube, in continued, begain the Vortex stirring in the next tube, make the gas dissolve in the water.
Venturi Injectors (Injectors) work by forcing water through a conical body which initiates a pressure differential between the inlet and outlet ports. This creates a vacuum inside the injector body, which initiates ozone suction through the suction port.
Characteristics:
very high ozone mass transfer rate (up to 90%)
requires water pump to initiate suction
efficiency rarely decreases over time
| Model | Water Inlet & Outlet Connection | Water Flow | Construction Material |
| IJ1/2 | 1/2inch | 0.1-1T | PVDF body, Teflon ball, Kel-F seat, Hastelloy-C spring |
| IJ1/8 | 1'inch | 3-10T | PVDF body, Teflon ball, Kel-F seat, Hastelloy-C spring |
| IJ1/10 | 3/4nch | 1-3T | PVDF body, Teflon ball, Kel-F seat, Hastelloy-C spring |
| IJ16/100 | 1.5'inch | 10-25T | PVDF body, Teflon ball, Kel-F seat, Hastelloy-C spring |
| IJ2/10 | 2'inch | 25-50T | PVDF body, Teflon ball, Kel-F seat, Hastelloy-C spring
|
