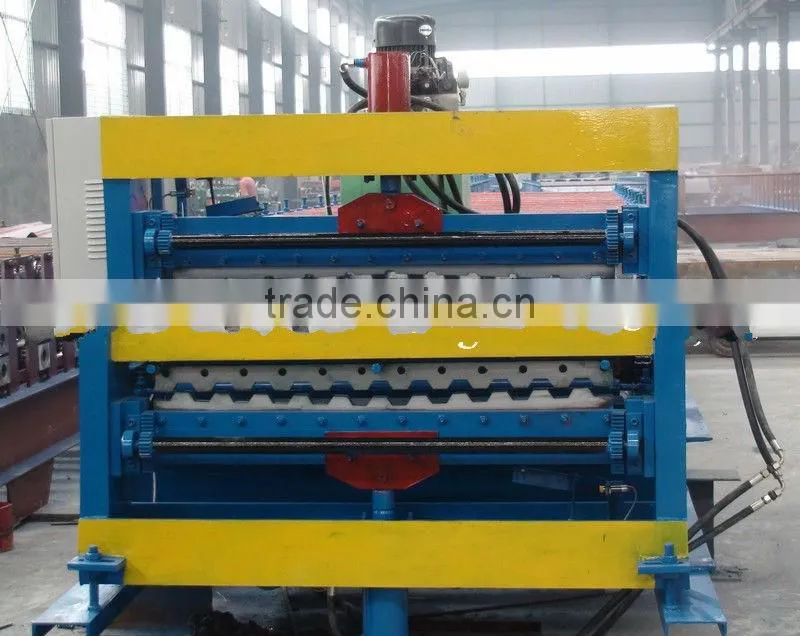

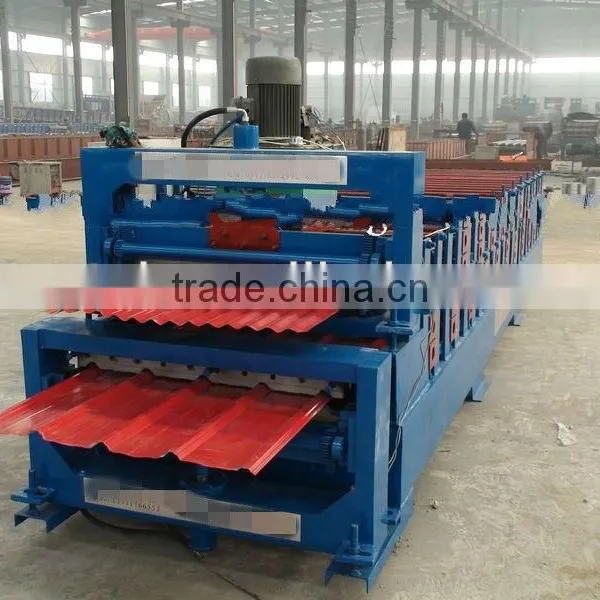

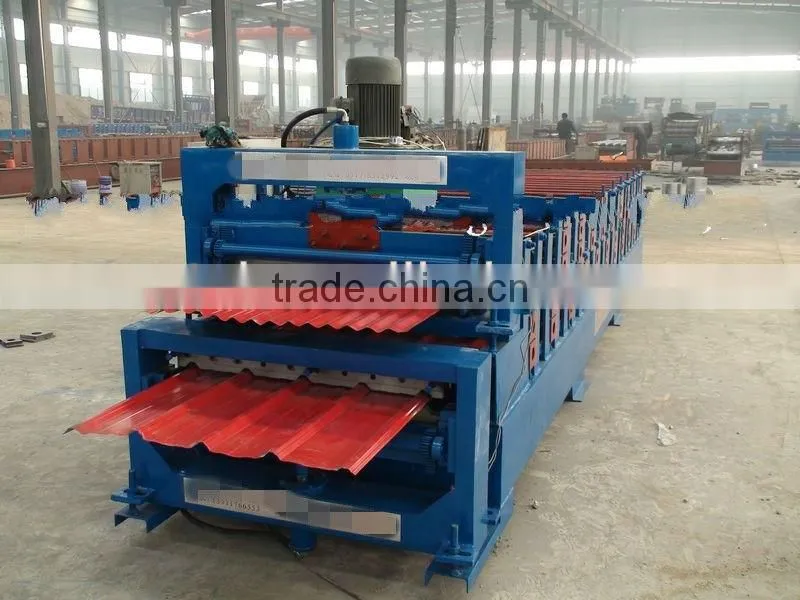

china brand cheap high quality Double Layer Roll Forming Machine
Specifications:
Double Layer Roll Forming Machine;
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type.
The main advantages of kexinda double layer roll forming machine:
•Variable frequency speed control
•Multi-purpose for overlap connection
•Auto power off.
Welcome both national and international customers to contact us for more information.
Attributes :
- Easy to operate
- Easy installation
- High efficiency
- Less noise
- Simple structure
- Precisely constructed
- Cost effective
- Low maintenance cost
Details :
- Model : SF-400DL
- Number of Stations : 16
Components of a Machine :
- Hydraulic single head type uncoiler
- Roll forming main machine
- PLC automatic control cabinet
- Guillotine Cut-off Unit
- Products Stacker
Technical Data
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness |
mm |
0.4-0.8 |
| 2 | Effective width |
mm |
840 |
| 3 | Coil width |
mm |
1000 |
| 4 | Forming Speed |
m/min |
8-15 |
| 5 | Roller stands |
stand |
12 |
| 6 | Roller Material |
45# steel, coated with chrome |
|
| 7 | Main Motor Power |
Kw |
5.5 |
| 8 | Hydraulic cutting Power |
Kw |
2.2 |
| 9 | Power Supply |
380V, 50HZ,3 phase |
|
| 10 | Material of cutting |
Cr12 |
850-840 Double Layer Roll Forming Machine
C10-8 Double Layer Roll Forming Machine
For more information, please contact us.
Contacts: Olek Zheng (sales)
Tianjin Votai Industry Co.,Ltd
Tel: +86-22-23708680
Fax: +86-22-23707535
Skype:votaisales02
Address: D-410, Hi-tech Information Square, Huayuan Industry Zone,Tianjin,China
Website: www.votai.net
