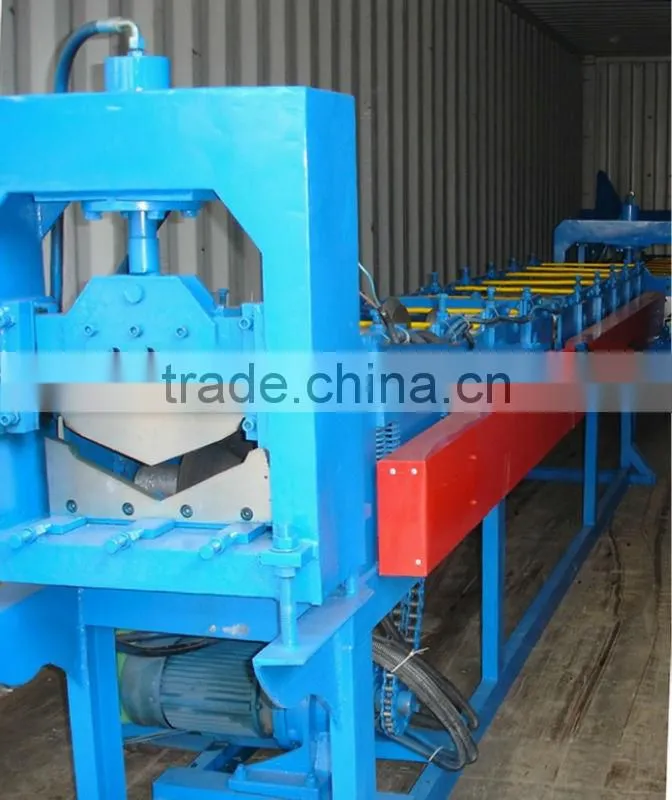

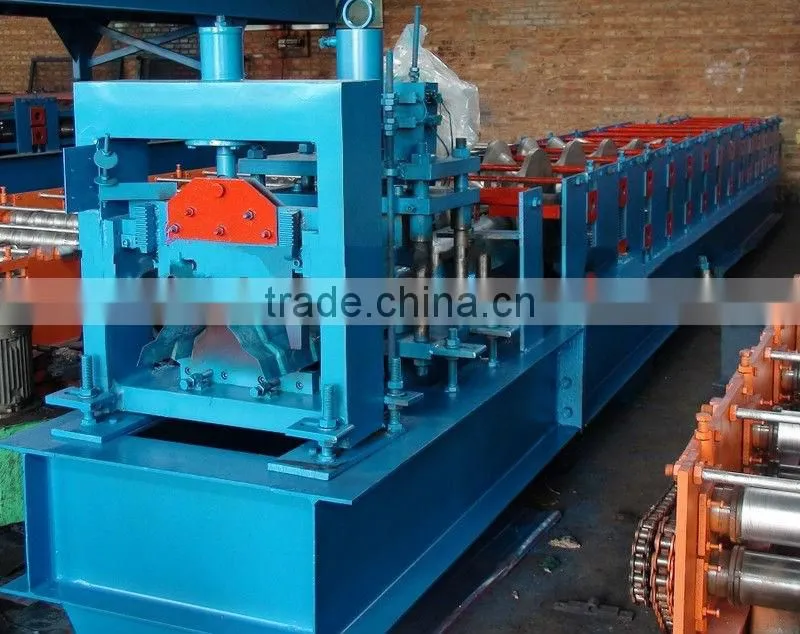

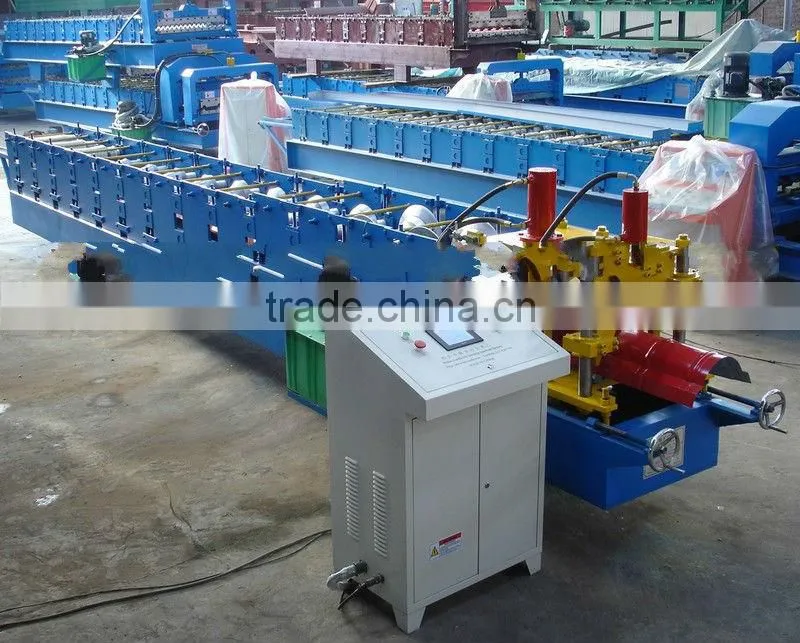

312 Ridge Cap Roll Forming Machine
Specifications:
Ridge Cap finishes off hips and ridges. A ridge capping provides an effective watertight barrier, as well as an aesthetic finish to the cut ends of the sheet at the ridge and hip lines. Ridge Cap can provide the utmost protection in roofing with its industry-leading design to decorate as well as optimize the function of the roof and increase the life span of the roof. Our many different metal material options provide you with a wide array of design options to consist with your shingle style. Roof ridge cap made of fiberglass provide a watertight, and easy to install and are long-lasting solutions for utility buildings.
We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome.
350 Ridge Cap Roll Forming Machine
457 Ridge Cap Roll Forming Machine
Technological Process:
Uncoiling—Feeding—Leveling—Punching—Roll forming—Cutting—Products
Main Technical Specifications of Roof Ridge Cap Roll Forming Machine:
Number |
Items |
UnitType |
RF-RC |
1 |
Steel Thickness |
mm |
0.5-0.6 |
2 |
Forming Speed |
m/min |
3-6 |
3 |
Roller stands |
stand |
16 |
4 |
Roller Material |
45# steel, coated with chrome |
|
5 |
Main Motor Power |
Kw |
7.5 |
6 |
Hydraulic cutting Power |
Kw |
4 |
7 |
Hydraulic pressure |
Mpa |
10-12 |
8 |
Power Supply |
380V, 50HZ,3 phase |
|
9 |
Tolerance |
mm |
1.5 |
10 |
Material of cutting |
Cr12 |
|
11 |
Control system |
PLC with touch screen |
|
12 |
Machine net weight |
T |
8 |
For more information, please contact us.
