Roller Shutter Door Machine:
Specifications:
760-800-830 Roller Shutter Door Machine
Insulation shutter machine
roller slat shutter machine

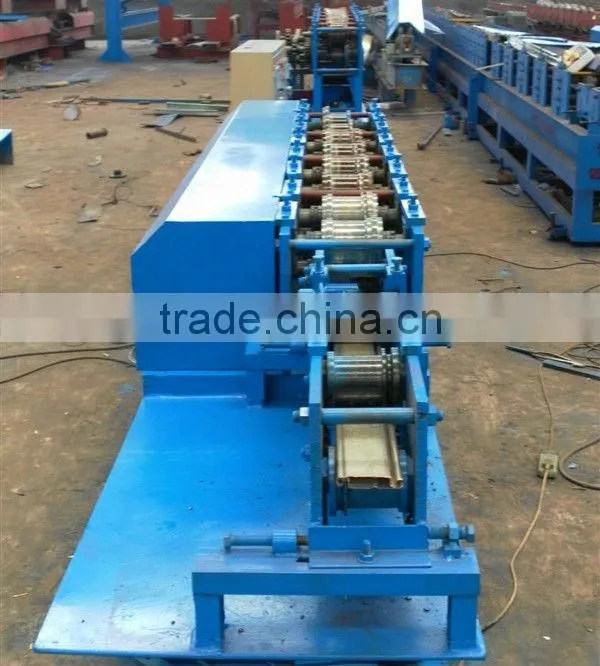

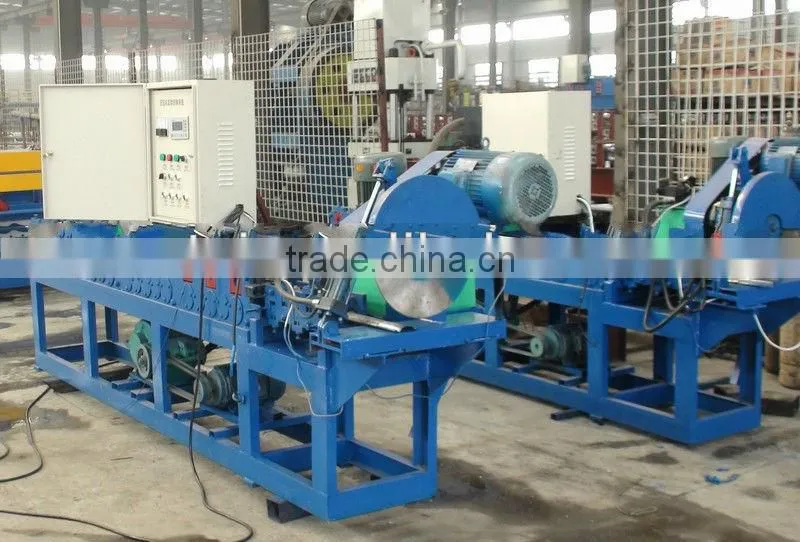

1. Introduction of Roller Shutter Door Roll Forming Machine
The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.
2. Technical Parameters
No |
Item |
Parameter |
Note |
|
1 |
Suitable
Material |
Type |
Steel sheet |
|
Roller Shutter |
Thickness: 0.7-1.0 mm |
|
||
2 |
Product Specifications |
Detail as the attached drawing |
||
3 |
Power Requirement |
Type |
380V/3PH/50HZ |
|
Main motor power(KW) |
3 |
|
||
Cutting power(KW) |
2.2 |
|
||
4 |
Forming Speed(m/min) |
15-18 |
|
|
6 |
Forming Stand |
12 |
Depend on actual design |
|
7 |
Forming Shaft Diameter(mm) |
65 |
Depend on actual design |
|
8 |
Type of Cutting |
Roll-formed and length-set cutting |
|
|
9 |
Control System |
Mitsubishi PLC and inverter |
|
|
10 |
Run Out Table |
2mX3 |
|
|
11 |
Installation Dimension(m) |
8X1.5 |
Without the panel length |
|
12 |
Total Weight(T) |
8 |
Depend on actual design |
|
Control system PLC
thickness 0.25-0.6mm
Forming speed 12m/min

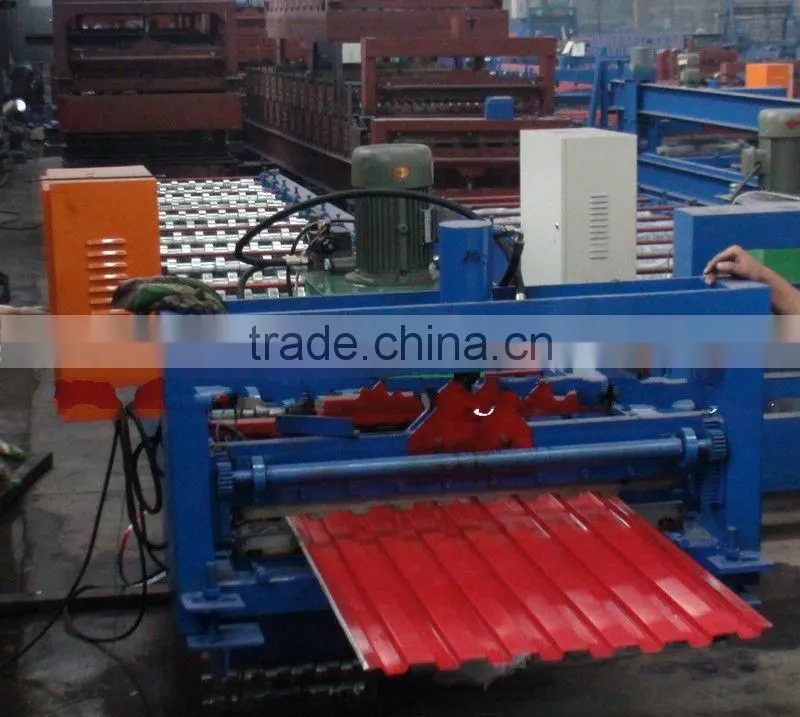

1,The colored steel tiles produced by this roll forming machine look beautiful,eleglant and noble.they are widly used as the roof of garden,factory,hotel,exhibition center and villa,etc.
2,components of line,
No |
name |
qty |
1 |
decoiler |
1 |
2 |
Automatic control system |
1 |
3 |
Hydraulic system |
1 |
4 |
Automatic cutting |
1 |
5 |
Products receiving tables |
1 |
3,process of line,
Decoiler-active feeding-coil strip leveing –roll forming -measure length-cut to length-product packing
4,technical datas,
|
Description |
Specification |
1 |
Main moter power |
3 kw |
2 |
Hydaulic sation power |
4 kw |
3 |
Hydraulic station pressure |
10-12 MPa |
4 |
Control system |
PLC |
5 |
thickness |
0.25-0.6mm |
6 |
Forming speed |
12m/min |
7 |
Effective width |
840mm |
8 |
Hydraulic oil pump |
CBN-E310 |
9 |
Diameter of principal axis |
85mm |
10 |
Frame thickness |
20mm |
11 |
sprocket |
P-25.4 |
12 |
Material of roller |
45#steel hard chrome palting |
13 |
Extemal dimension |
6200mm*1350mm*1300mm |
14 |
Total weight |
2.2 T |
15 |
Equipment parts:includes:roll forming system,hydraulic system,PLC frequency conversion control system,counter,cutting system,product supporter. |
|
5,terms,
Terms |
Delivery: in stock |
Package: package for container |
Payment: T/T(30% T/T pay in advance ,the balance by T/T when we sending the machine) |
Validity :good for 30 days |
For more information, please contact us.
Contacts: Olek Zheng (sales)
Tianjin Votai Industry Co.,Ltd
Tel: +86-22-23708680
Fax: +86-22-23707535
Skype:votaisales02
Address: D-410, Hi-tech Information Square, Huayuan Industry Zone,Tianjin,China
Website: www.votai.net
