Camda Natural Gas Generator 250kw for sale/Natural gas generator/Gas engine/LPG gas generator/ Power plant/Gas Cogeneration with CE&ISO certificates
Specifications of 300kw natural gas generator/biogas generator/LPG power generator/Landfill gas generator:
Model Item |
KDGH300-G |
|
Rated power |
KW |
300 |
KVA |
375 |
|
|
Rated Voltage (V) and Rated Frequency (Hz) |
380V-415V (50Hz), 220V-480V (60Hz) |
|
Voltage Stabilized Regulation |
≤±1.5% |
|
Voltage Instantaneous Regulation |
≤±20% |
|
Voltage Recovery Time (S) |
≤1 |
|
Frequency Fluctuation Ratio |
≤1% |
|
Generator Insulation Class |
H |
|
Noise Level (Db) |
≤100 |
|
Engine Model |
HGKT19 |
|
Aspiration |
Turbo |
|
Arrangement |
Inline |
|
Engine Type |
Four stroke, electronic control spark plug ignition, watercooling, premix proper ratio of air and gas before combustion |
|
Cooling Mode |
Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit |
|
Cylinders |
6 |
|
Bore X Stroke (mm) |
159*159 |
|
Displacement (L) |
18.9 |
|
Compression Ratio |
11.5 : 1 |
|
Engine Rated Power (kw) |
336 |
|
Rated Speed (r/Min) |
1800 |
|
Fuel |
Natural Gas / Biogas |
|
Max Gas Consumption (m3/kw.h) |
0.3/0.6 |
|
Idling Speed (r/Min) |
700 |
|
Oil Recommended |
API service grade CD or higher SAE 15W-40 CF4 |
|
Oil Consumption (g/kW.h) |
≤0.5g |
|
Exhaust Temperature |
≤ 600℃ |
|
Net Weight (Kg) |
3380 |
|
Dimension mm) |
L |
3500 |
M |
1250 |
|
H |
2020 |
|
Advantages:
l Experiment- evidential gas engine technology
l Overhaul term: 18000~25000 hours
l Over 85% cogeneration efficiency
l Economical and low-cost running: lower gas and oil consumption
l Specially designed air valves, crankshaft, camshaft, pistons, ignition system and combustion chamber according to international brands gas engine technology(Waukesha, MAN, Guascor, Daewoo).
l 4 air valves design for each cylinder, sufficient air intake and exhaust, more air intake, to realize higher power output and stronger capability of load
l Electronic Air/Fuel Ratio mixer, better combustion and lower emission, sufficient combustion to reduce gas consumption and increase engine heat efficiency, effectively lessen NOX emission.
l Original Cummins engine body, 90% parts made by Cummins China factory, long life and durable engine parts produced strictly accord to ISO9001:2008 International Quality Management System.
l Unique air-fuel ratio adjusting system adapting 30%~70% CH4 Methane concentration.
l Integrated Crankshaft Forging for gas engine made by Cummins, different from other China brands whose crankshaft is only forged by subsections from diesel engine and then assembled into a whole.crankshaft. But our engine body is specially designed for gas power generation.
l Continuous rating up to 90% of prime power rating.
l Exceed 10-year genset repair and maintenance experience
l Low pressure gas intake, biogas no need boosting pressure
l Larger displacement engine to keep much surplus for genset power output.
l Electrical efficiency higher 10%~20% than other China brands
l With good command of biogas anaerobic technology, we can make better biogas genset, design and testing.
l ISO standard production
l Adopting highprecision special gas engine speed governor: precise speed governing, instant recovering ability so as to fit different loads upon the three signals: rotating speed, load and temperature.
l Precisely-controlled engine air intake and exhaust time.
l Advanced ignition sensor and ECU (Electronic Control Unit) ignition system with computer core:
Precise ignition at right cylinder and right time, prompt startup ability to avoid the ratio of detonation and make stable engine.
l Crankshaft and Rod: Robust and fully balanced crankshaft design for a more steadily rotation and higher strength.
l Lubrication System: Dual spin-on filter can separate impurity above 10um effectively and lower cost.
l Less accumulated carbon, reduces the abrasion between cylinder and valve, it can much prolong genset lifetime.
l Compact design: small size and weight
l Wide spare parts availability: Base on Cummins engine parts, the engine base body made of the parts from the supplying factory for Cummins engine China factory.
l Equipped with the most well-known brand generator—Leroy Somer.
l Using advanced intelligent PLC genset controller: capable computer chip, with full monitoring, control, alarm and protecting function, all-in-one configuration for all kinds of demands.
l Electrical system: 24V cranking motor starting and battery charging system.
l Parallel operation with genset or city power grid for option.
Our product list:
Genset Model |
Engine Model |
Alternator Model |
Controller |
Prime Power (kVA/kW) |
KDGH24-G |
HG4B |
LSA42.3VS3 |
DSE7320 |
30/24 |
KDGH30-G |
HG4B |
LSA43.2S4 |
DSE7320 |
37/30 |
KDGH50-G |
HG6B |
LSA44.3S2 |
DSE7320 |
62/50 |
KDGH80-G |
HG6TB |
LSA44.3S5 |
DSE7320 |
100/80 |
KDGH120-G |
HGN14 |
LSA44.3L10 |
DSE7320 |
150/120 |
KDGH160-G |
HGNT14 |
LSA46.2M5 |
DSE7320 |
200/160 |
KDGH200-G |
HGNT14 |
LSA46.2L6 |
DSE7320 |
250/200 |
KDGH250-G |
HGKT19 |
LSA46.2VL12 |
DSE7320 |
312/250 |
KDGH300-G |
HGKT19 |
LSA47.2VS2 |
DSE7320 |
375/300 |
KDGH400-G |
HGKT38 |
LSA47.2M7 |
DSE7320 |
500/400 |
KDGH500-G |
HGKT38 |
LSA49.1S4 |
DSE7320 |
625/500 |

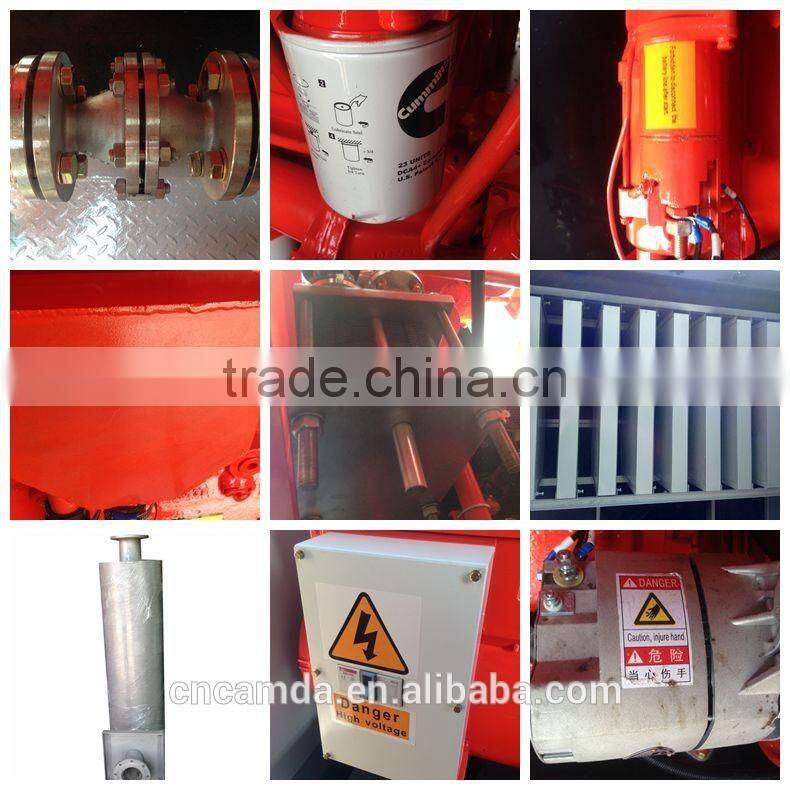

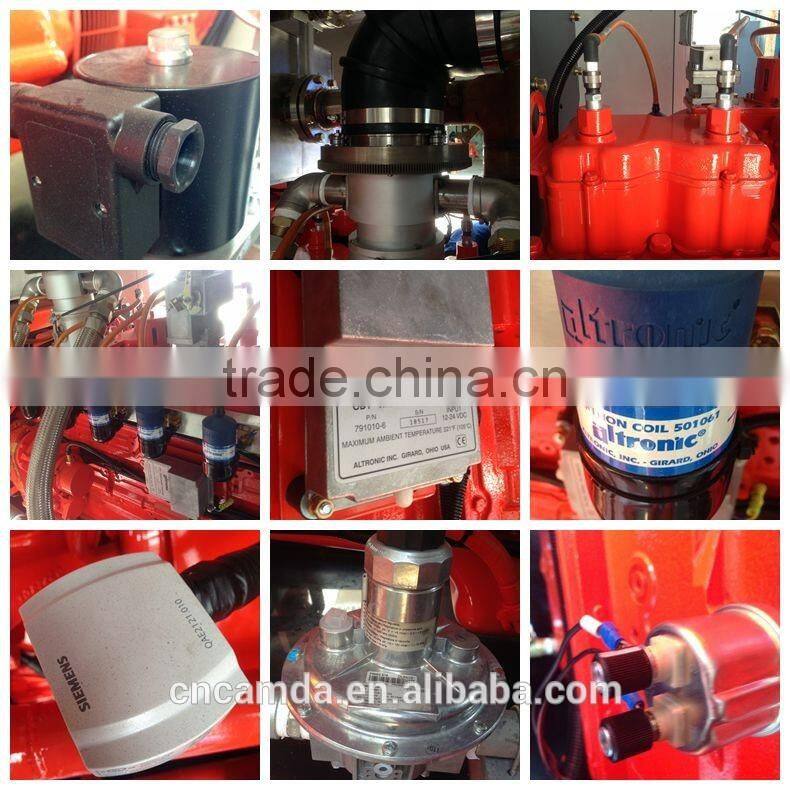

Specific photos:

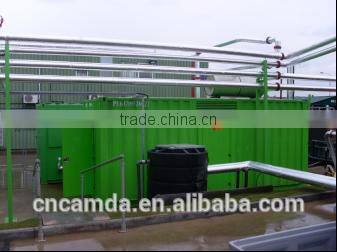

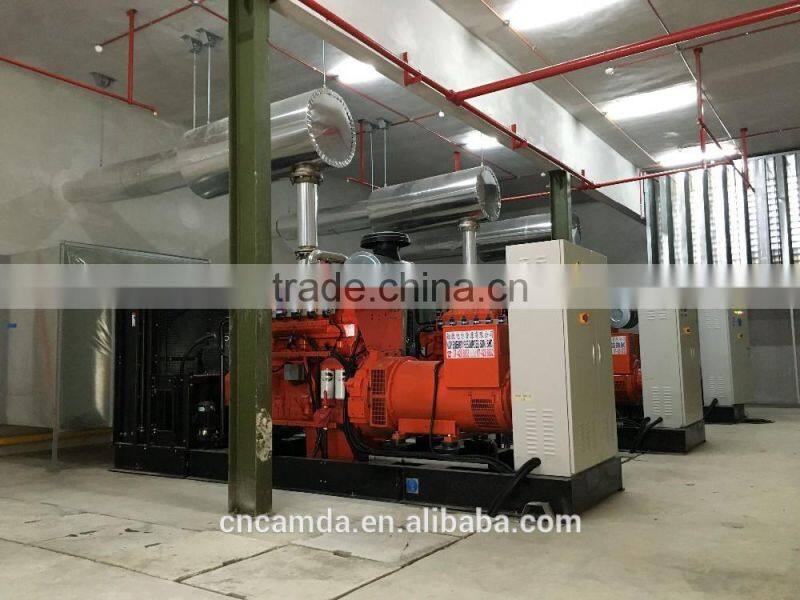

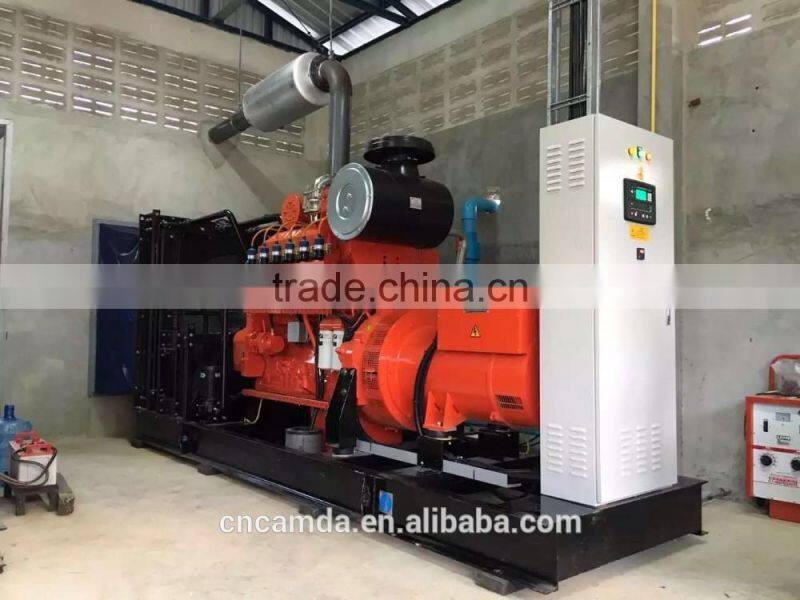

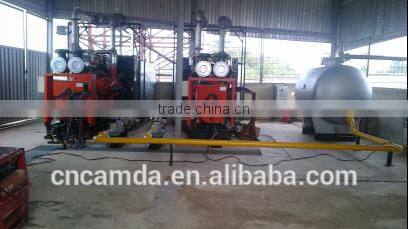

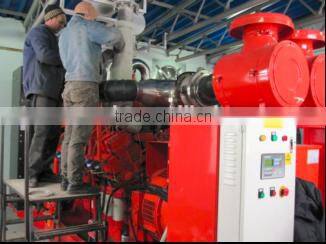

Some of our gas generators projects cases
a. 2x500kW gas generators in Nigeria, installed in October of 2012.
b. 2x500kW gas generators in Russia, installed in December of 2011.
c. 2x250kW gas generators in England, installed in May of 2011.
Genset lifetime and Warranty
LIFETIME
According to product design and end users' years experience, strictly following our operation manual and make
gen-set load under 85% of prime power, we guarantee the major overhaul terminal more than 15000 hours, and
lifetime is over 20 years.
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since
leaving China port, our company provides free easily-damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect man-made operation. After expiration, our company provides spare parts with cost for maintenance forever.
