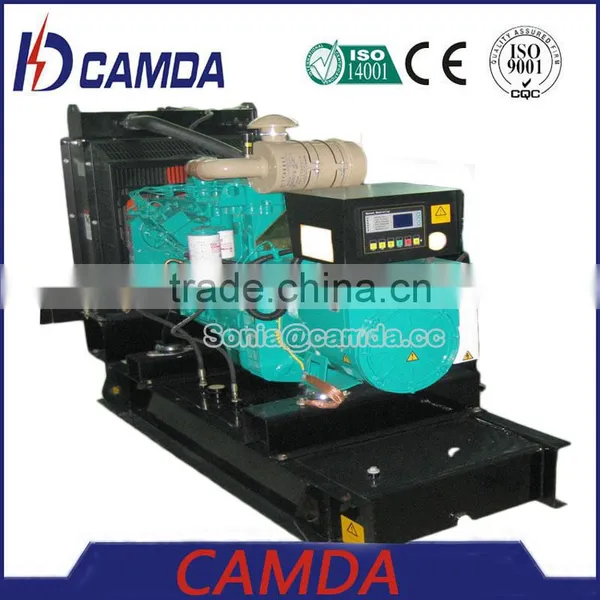

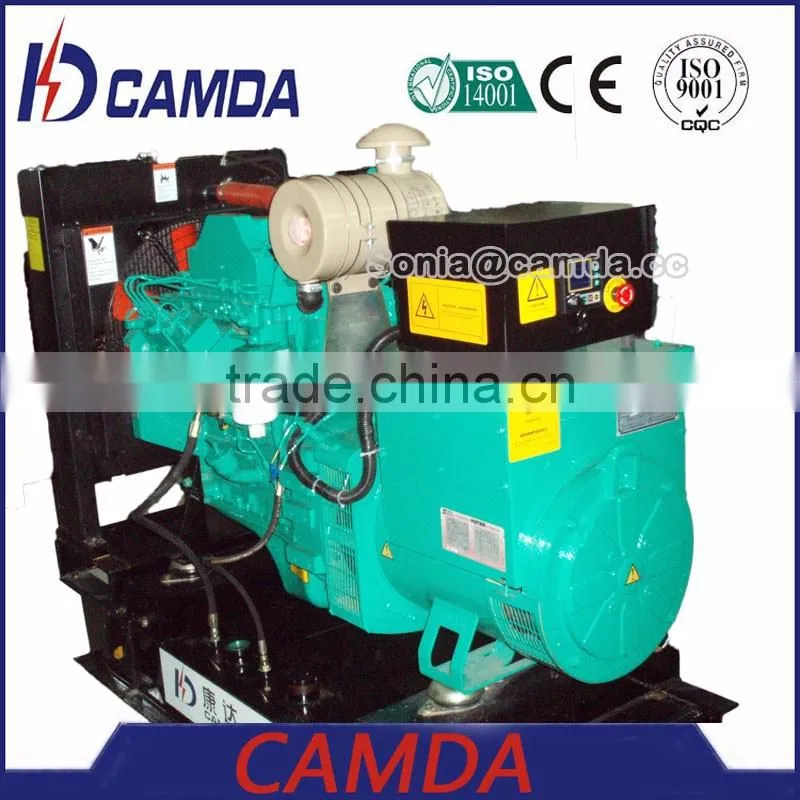

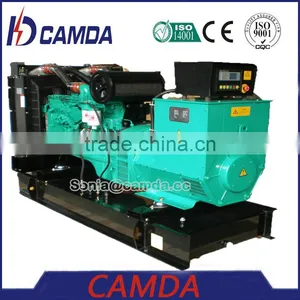

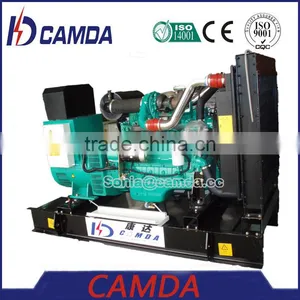

Portable diesel 23kva genset prices permanent magnetic power generator
About Generator set:
GENERATOR SET DETAILS | |||
Model |
KDGC21S |
||
Standby Power |
kVA |
27 |
|
|
kW |
21 |
|
Prime Power |
kVA |
23 |
|
|
kW |
18 |
|
Engine Model |
4B3.9-G1 |
||
Alternator Model |
BCI 162G |
||
Controller Model |
DSE6020 |
||
Rated Frequency (Hz) |
50 |
||
Rated Voltage (V) |
400/230 |
||
Rated Current (A) |
38 |
||
Output Type |
3 phase , 4 wire |
||
Fuel Consumption (L/h) |
6 |
||
Lube Oil Consumption (L/h) |
0.04 |
||
Open-type Genset |
Packed Dimension (mm) L×W×H |
1700*710*1270 |
|
Silent-type Genset |
Packed Dimension (mm) L×W×H |
2300*1050*1700 |
|
About Engine:
ENGINE DETAILS | |
Brand |
DCEC |
Model |
4B3.9-G1 |
Rated Power (kW) |
24 |
Standby Power (kW) |
27 |
Rated Speed ( r/min) |
1500 |
Bore×Stroke (mm×mm) |
102×120 |
Displacement (L) |
3.9 |
Compression Ratio |
16.5:1 |
Fuel Injection Pump |
BYC A Injection Pump |
Governor |
Mechanical |
Steady Speed Droop |
≤5%(Mechanical Governor) |
Lubricant Capacity(L) |
10.9 |
Coolant Capacity(L) |
7.2(engine only) |
Aspiration |
Natural |
2.Optional Parts
- Synchronizing parallel cabinet
- ATS
- Supper silent Canopy
- Water heater
- Oil heater
- Water and diesel Separator
- Outside fuel tank
- Spare parts
- 21KW-1320KW Diesel Generator Sets
-
3.Related Products
1. 1000KW Diesel Generator Set
2. 400KW Diesel Generator Set
3. 24-500KW Syngas Generator Set
4.Lifetime and Warranty
LIFETIME:
According to product design and end users' years experience, strictly following our operation manual and make genset load under 85% of prime power,
we guarantee the major overhaul terminal more than 15000 hours, and lifetime is over 20 years.
WARRANTY:
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since leaving China port,
our company provides free easily-damaged parts for the faults caused by the quality of products or raw material,
but exclude the damageable parts of engine due to customer's incorrect man-made operation.
After expiration, our company provides spare parts with cost for maintnance forever.
Before sales service:Free charge on load capacity analysis,complete-set forming,
technology consultatioon as well as assisting user to fix up machinery room and lay out equipment installation plan.
Under sales service:For the purpose of helping user to master all type of gensets' operation,use and maintenance better,
we specially offer the cost-free full set on-site training session in our company.
After sales service:We attach great importance of after sale service,we establish the computer backup for follow up service and periodic inspection.
Our maintenance center has the quick reaction management system,
we'll indicate user eliminate fault in an hour via phone or arrange the service people doing on-site maintenance for more complicated condition.
About the complain,we always strictly follow the principle of seeking truth,and appoint the responsible person to solve trouble.
1.Which brand is the best for choosing diesel generator set?
Camda CCEC or DCEC diesel generator set, just searching "Camda diesel generator set" on Google/Alibaba/Baidu
2.How to calculate the power of diesel generator set which you need?
Do not need to calculate the power, there is obviously marked on the diesel generator
3.How to calculate the fuel consumption?
Power*0.25=fuel consumption, the 0.25 is the factor, different brand have different fuel factor, for example, the actor of weichai deutz is 0.2
4.How to solve the noisy problem?
Buying the silent diesel generator the noise just like the people has a big mouth, it is very good
5.What should buyer pays attention to the diesel generator when buying diesel generator set?
After-sales service, price and quality.
After-sales is the most important, if there is no good after-sales service, do not buy. because you not only buy the diesel generator but also the service,
6.The construction of diesel generator set.
Including 4 parts: diesel engine, alternator. underframe and control system
5.Certificate

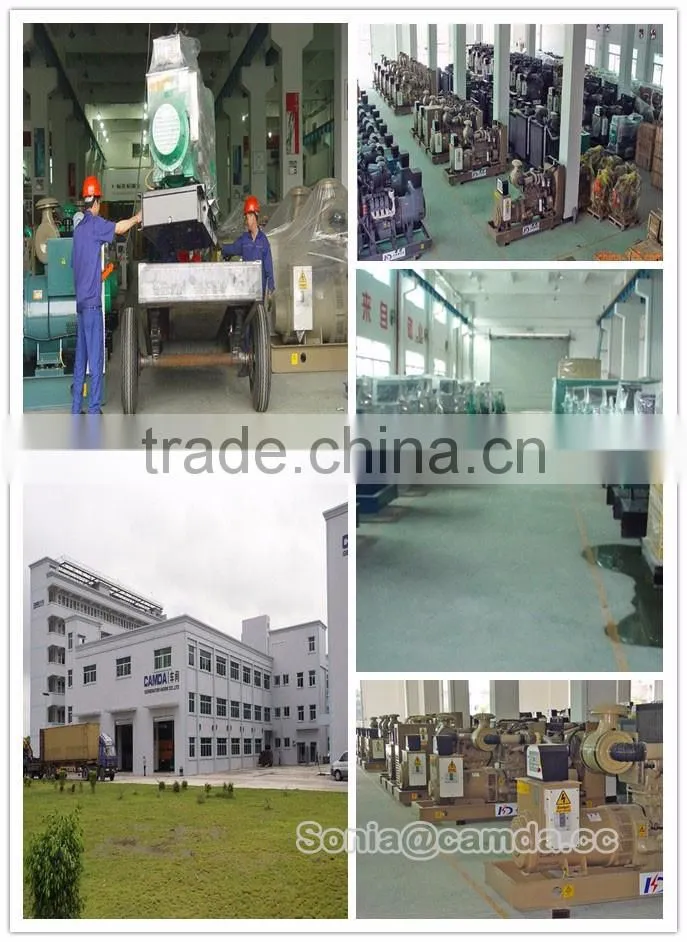

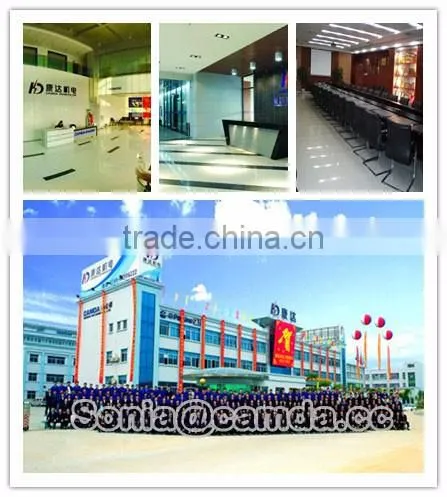

6.Company Profile
Camda New Energy Equipment Co.,Ltd.
(Authorized distributor of GE gas engines, Jenbacher & Waukesha)
Email or Skype: sonia@camda.cc • Wechat: sonia_zeng
TEl: +86-769-88996275
Web:
Address: Tangchun Industrial Zone, Liaobu Town, Dongguan city, Guangdong Province, China. (Postal Code 523407)
