50KW Diesel Generator Set /diesel genset/electric generator/electric engine/power generator/power engine/power plant with CE&ISO certifications powered by DCEC engine, Leory Somer alternator and Deepsea controller

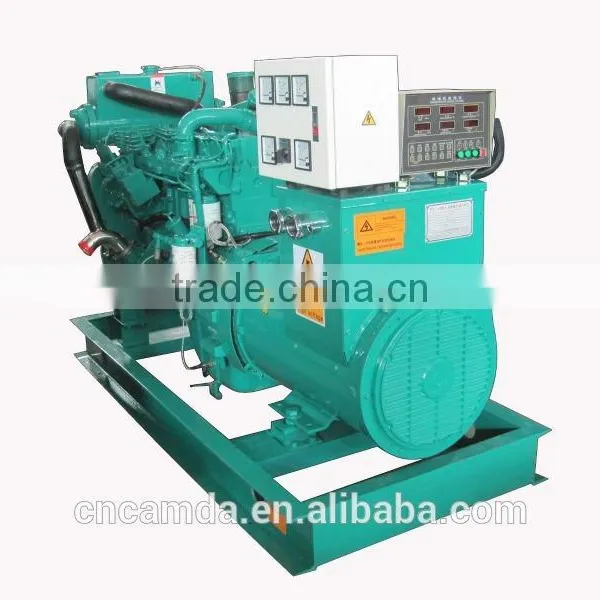

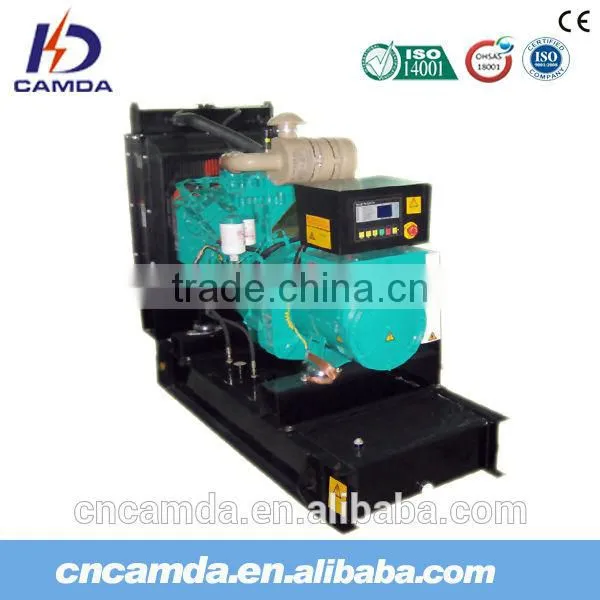

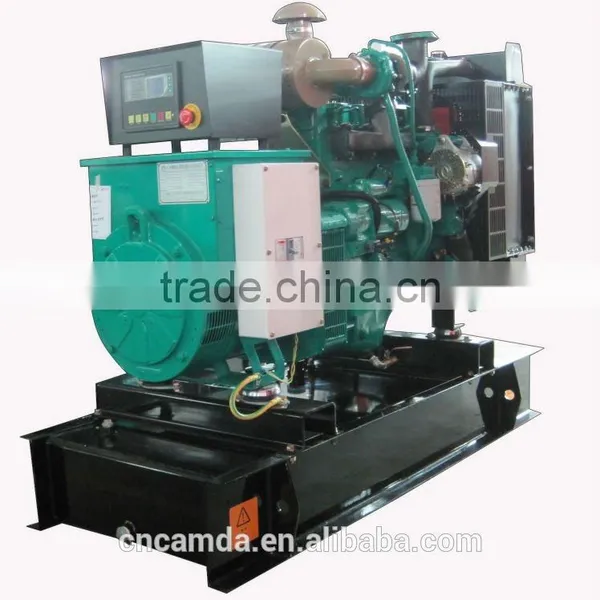

Open type:

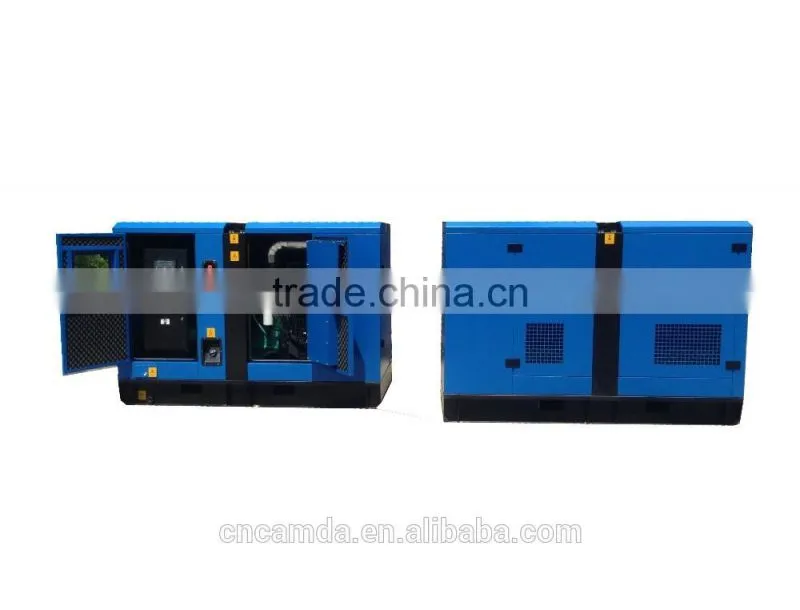

Silent type:
* The color of genset and silent canopy are optional
Specifications:
KDGC56S1 60HZ
Ratings
Standby Power |
KVA |
70 |
KW |
56 |
|
Prime Power |
KVA |
63 |
KW |
50 |
|
Voltage type |
60Hz,480/240V, 3 phases and 4 wires |
|
Engine Brand & Model: Powered by DCEC 4BT3.9-G2
No. of Cylinders |
4 vertical in-line |
Gross Engine Power (kW) |
Prime |
60 |
Cycle |
4 Stroke |
Standby |
65 |
|
Bore * Stroke (mm) |
102 * 120 |
Compression Ratio |
16.5:1 |
|
Induction |
Turbocharger |
Displacement (L) |
3.9 |
|
Cooling Method |
Water cooled |
Governing Type |
Electronic
|
|
Starting method |
24V DC motor |
Coolant capacity engine only (L) |
8 |
|
Lubricant Oil |
15W40-CF4 or above grade |
Lube System Capacity (L) |
11 |
|
Alternator Brand & Model: LSA42.3L9, 60Hz
Continuous power |
69KVA / 55.2kW |
Efficiency (%) |
91 |
Power factor |
0.8 |
Temperature rise |
125K |
Excitation system |
Shunt |
Insulation class |
H |
A.V.R. |
R220 |
Enclosure protection |
IP23 |
Voltage regulation |
± 0.5 % |
Winding leads |
12 |
Bearing number |
1 bearing |
Ambient temperature (°C) |
40 |
Shipment to Venezuela:
KDGC56S1 60HZ Silent type
Accessory list :
1.After-sale service: Tech training,Outstanding maintenance,Operator training
2.Lifetime service:Maintenance service,Tech consultancy,Components supply
Send Inquiry to This Supplier
