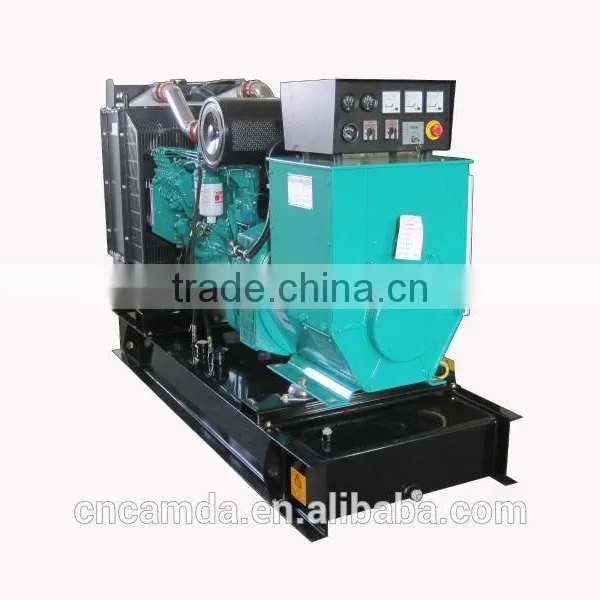

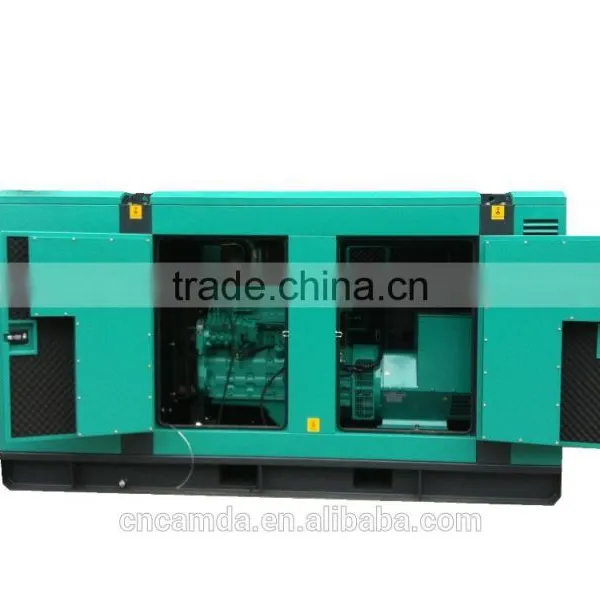

Camda diesel generator set 60kw generator set, power plant with ISO&CE certification 60Hz
Specifications:
Ratings
Standby Power |
KVA |
83 |
KW |
66 |
|
Prime Power |
KVA |
75 |
KW |
60 |
|
Voltage type |
60Hz,480/240V, 3 phases and 4 wires |
|
Engine Brand & Model: DCEC 6BT5.9-G2
Standard DCEC Engine Data
No. of Cylinders |
6 vertical in-line |
Gross Engine Power (kW) |
Prime |
100 |
Cycle |
6 Stroke |
Standby |
110 |
|
Bore * Stroke (mm) |
102 * 120 |
Compression Ratio |
17.5:1 |
|
Induction |
Turbocharger |
Displacement (L) |
5.9 |
|
Cooling Method |
Water cooled |
Governing Type |
Electronic |
|
Starting method |
24V DC motor |
Coolant capacity engine only (L) |
11 |
|
Lubricant Oil |
15W40-CF4 or above grade |
Lube System Capacity (L) |
16 |
|
Alternator Brand & Model: LSA44.3S2, 50Hz.
Standard Leroy Somer Alternator Data
Continuous power |
75KVA / 60kW |
Efficiency (%) |
91.9 |
Power factor |
0.8 |
Temperature rise |
125K |
Excitation system |
Shunt |
Insulation class |
H |
A.V.R. |
R250 |
Enclosure protection |
IP23 |
Voltage regulation |
± 0.5 % |
Winding leads |
12 |
Bearing number |
1 bearing |
Ambient temperature (°C) |
40 |
More diesel generators:
Genset model Engine Model Standby /Prime(KW) Alternator model
♣Please contact with us for more information if you are interested.
1.After-sale service:
Tech training,Outstanding maintenance,Operator training
2 Lifetime service:
Maintenance service,Tech consultancy,Components supply
