4XLAN 3G EVDO Industrial M12 Router

Specifications

4XLAN 3G EVDO Industrial M12 Router
1. Supporting VPN and PPTP, MPPE, L2TP, GRE and IPSEC
2 Support IPTABLES firewall, packet

4XLAN 3G EVDO Industrial M12  Router

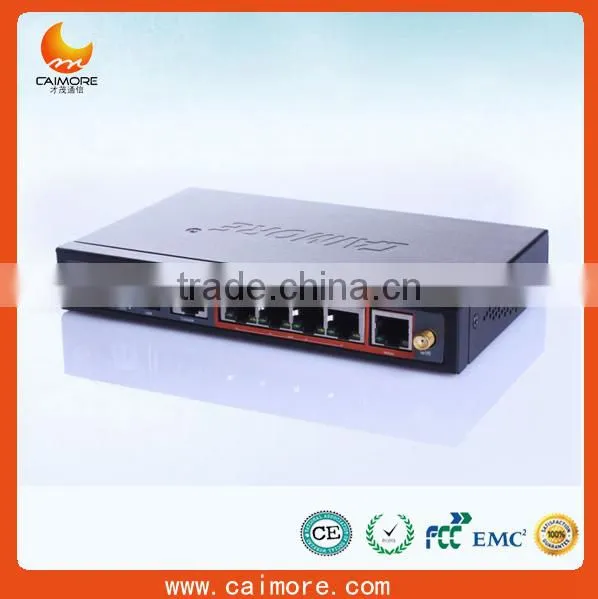

 Caimore Wireless 3G EVDO Router (Type:  CM520-82E ) is EVDO router with industrial design and 4 RJ45 Ethernet port.



Produce interface diagram







Accessories photos





I. Wireless parameters:

Item	Content
Wireless module	use industrial wireless module
Standards and frequency bands	Support  IS-95 A/B, CDMA2000 1XrTT, and 1X EV-DO(Revision 0 and A) 800Mhz ,Optional 800/1900Mhz or 450Mhz
Coding scheme	IS-95 A/B, CDMA2000 1XrTT,and 1X EV-DO mode
Communication bandwidth	Download 3.1Mbps, Upload 1.8Mbps
Transmit power	<23dBm
Receiver sensitivity	<-107dBm
Function support	Support data, voice, SMS and fax


II Interface Type:

Item	Content
Ethernet port	1xLAN(One 10/100 Base-T Ethernet ports), Ethernet IEEE 802-3, 802-2; built-in 1.5KV  magnetic isolation protection
Serial ports	1 RS232 serial port or 1 RS485 interface (supports RS422/TTL) Bytesize: 7,8 bit Stopbits: 1, 2-bit Parity: no parity, odd parity, even parity, SPACE and MARK parity Baudrate: 110bps ~ 230400bps Flow Control: None flow control, RTS / CTS hardware flow control or XON / XOFF  software flow control
Indicator	With “POWER”, connecting “Link / ACT”, communication “COMM” and “ONLINE”  indicator LED
Antenna Interface	Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension  cable, meet the different needs of customers
UIM interface	1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
Voice Interface	Standard headset interface (requires software)
Power Interface	Standard 3-pin power jack

III product characteristics

1.Supports Ethernet data communication and packet forwarding, also supports serial port



TCP / UDP transparent data transmission or serial configuration
2.Support VPN tunnel, including PPTP, MPPE, L2TP, GRE and IPSEC
3.Intelligent anti-dropped, support online testing, online maintenance, automatic redial, router is always on-line
4.Support IPTABLES firewall, packet filtering
5.support Regular on-line offline functionality
6.Support a variety of trigger and offline modes
7.Support dynamic routing and static routing
8.Support multiple protocols:



9.Support DHCP / DHCPD functionality
10.Supports NAT port mapping function
11.Support DDNS(Dynamic Domain Name Server)
12.Support DMZ
13.Support the APN / VPDN network
14.Convenient WEB configuration, Remote WEB Management
15.Support WEB configuration save and restore to achieve the rapid deployment parameters backup and



batch of equipment
16.Support telnet management
17.Support multiple terminals sharing router ppp wan
18.Support multiple wireless dial-up mode
19.Support as a PPP server, multiple authentication methods, support mutual authentication
20.Easy to use COM and SYSLOG System diagnostics, debugging
21.Support Serial port local software upgrades
22.Supports TFTP remote software upgrade
23.Support real-time clock
24.Support both LINUX and WINDOWS operating systems
