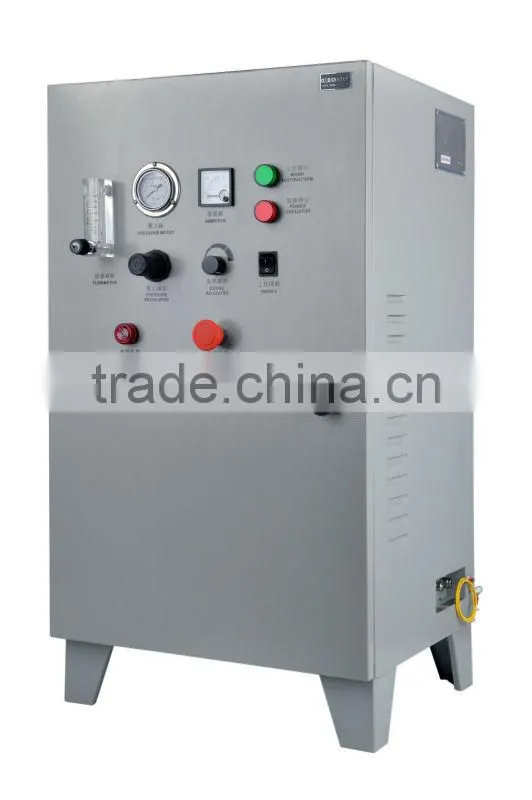

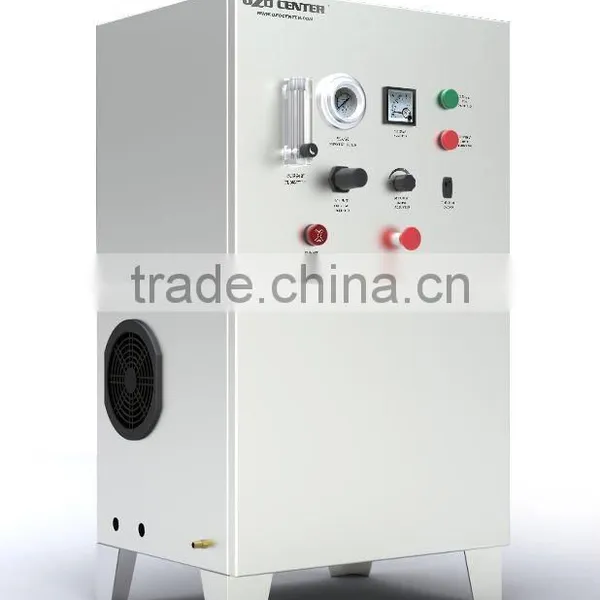

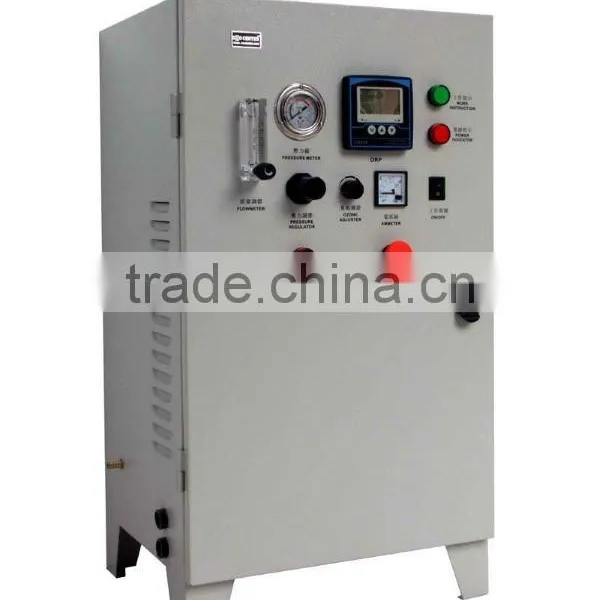

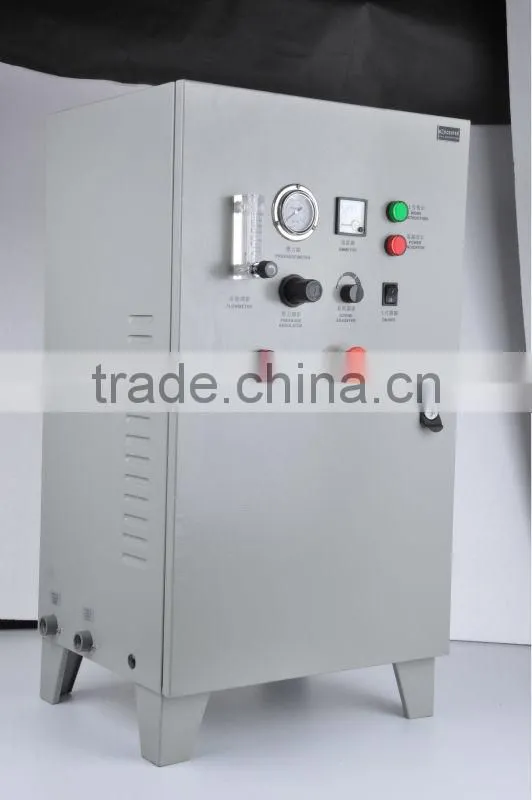

most usefull and high qualityWater Cooling Oxygen Source Ozone Generating Device/Ozonizer
Features of CH-WZQ series industrial ozone generator:
1. Carbon Steel Sprayed cabinet
2. Install with CH-PC 10-60g/hr enamel ozone generator tube, Water cooled for internal &external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration.
3. Adjustable ozone output, Use high-frequency & Intelligent power supply inverse system, ozone outpt can be changed on demand to achieve accuracy control.
4. Feed air ambient or Feed external oxygen source (oxygen cylinder)
5. High ozone concentration is more 90mg/L
6. Easy to maintain and assemble
7. Control Panel: Gas flow meter ,Voltage meter ,Current meter ,Work instruction ,Power indication ,On/Off ,Ozone output adjuster ,Pressure regulator ,Trouble alarm, Emergency stop device ,Water flow switch
Application:
1. Industrial waste water treatment
2. Swimming pool water, SPA water, hot tub
3. Aquaculture, marine and aquarium
4. Drinking water, Bottle water treatment
5. Food processing
6. Indoor air control, air purify, etc
Specification:
Item |
Unit |
CH-WZQ 10G |
CH-WZQ 20G |
CH-WZQ 30G |
CH-WZQ 50G |
CH-WZQ 60G |
Flow rate of oxygen supply |
L/Min |
1-4 |
3-10 |
3-6 |
6-15 |
8-18 |
Ozone concentration |
Mg/L |
100-66 |
104-51 |
120-94 |
115-65 |
90-58 |
Ozone output |
g/hr |
6-15.80 |
18.72-30.60 |
21.6-33.84 |
41.40-58.50 |
43.2-62.64 |
Power |
KW |
0.40 |
0.40 |
0.60 |
0.60 |
1.30 |
Frequency |
KHZ |
6 |
||||
High voltage output |
V |
PP3600V |
||||
Power amplification |
A/V |
IGBT 50A/600V |
||||
Way of cooling |
Water cooled for internal & external electrodes |
|||||
Cooling water flow rate |
L/Min |
4 |
4 |
5 |
6 |
10 |
Cooling water temperature |
°C |
30 |
||||
Adjustable(Variable control) |
% |
20-100 |
||||
Power supply |
V/HZ |
220v/110v 50/60HZ |
||||
Dimension |
mm |
460×385×840 |
||||

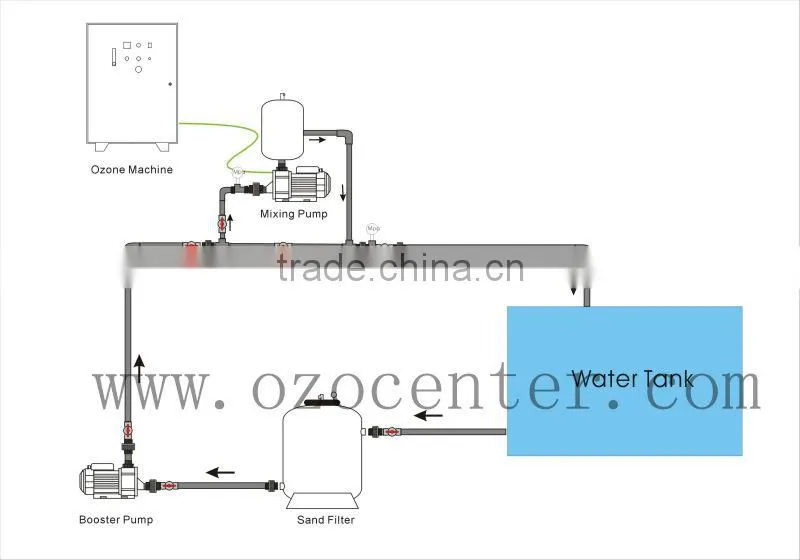

ozone machine system for 5-600 m3 swimming pool water treatment:
About our service:
The testing:
contact us:
our team culture:
>>What we do?
1.We Provide high-quality ozone generator for: Ozone generator wholesalers, Retailers and oneline shops (Ebay, Amazon...), OEM.
2.The custom-made ozonegenerator are available upon customer's idea, drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is accepted.
>>Excellent after-sales service:
1. One year warranty again the manufacture defect.
2. Offer life time consultation on problems occurred.
3. 2M silicone tube and 2PCS air stone gift for any ozone machine order.
4. Report on the making process.Marketing feedbacks tracing.
>>Why choosing us?
1. 7 years production experienced .We are trusty business partner.·
2. Quality Controlled: Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
3. Production Capacity: 3000 pcs per month.
4. We have serial products: ozone tube, UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5. We supply OEM service according to customers' requests and give out professional suggestions.
6. Distributors Offer : Welcome to be our distributor
