oxygen concentrator zeolite sieve/air compressor motor parts/molecular sieve oxygen producing machine
- 10000 Piece / Pieces per Month
- Guangzhou/Shenzhen
- T/T L/C D/P D/A Credit Card
-
20LPM Industril Oxygen Machine for Farm Fishing
-
CE certified PSA oxygen/O2 generator for aquaculture
-
large industrial aquaculture purified water vending machine for fishing farm used factory use
-
10L-40L fish pond PSA oxygen concentrators
-
Oxygen Machine/Industrial Oxygen Gas Making Machinery for welding
-
oxygen machine for aquaculture high concentration
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | oxygen spare parts | Model Number: | CH-OX |
Packaging Details
Good carton package
Product Description
oxygen concentrator zeolite sieve/air compressor motor parts/molecular sieve oxygen producing machine
Feather:
1. Patented products
NT-OT series molecular sieve is an air separation plant which has already obtained domestic patent.
2. Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3. Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4. The oxygen output is stable and continuously
5. Low-pressure oxygenproduction working pressure less than 3 KG.
Specification:
Item | Unit | NTOX3ZE-1 | NTOX5ZE-1 | NTOX7ZE-1 |
Oxygen output | LPM | 3 | 5 | 7.5 |
Oxygen concentration | % | 90%±5% | ||
Air flow rate | LPM | 36-45 | 60-75 | 90-115 |
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.18 | 0.15-0.2 |
Pressure(outlet) | Mpa | 0.06-0.08 | ||
Temperature | ℃ | indoor temperature | ||
Relative humidity | % | ≤ 70%±10% | ||
Noise | Db | ≤60 | ≤60 | ≤60 |
Dimension | mm | 200×290 | 200×410 | 200×470 |
Net weight | kg | 14.00 | 17.85 | 19.10 |
Details:
packing and payment:

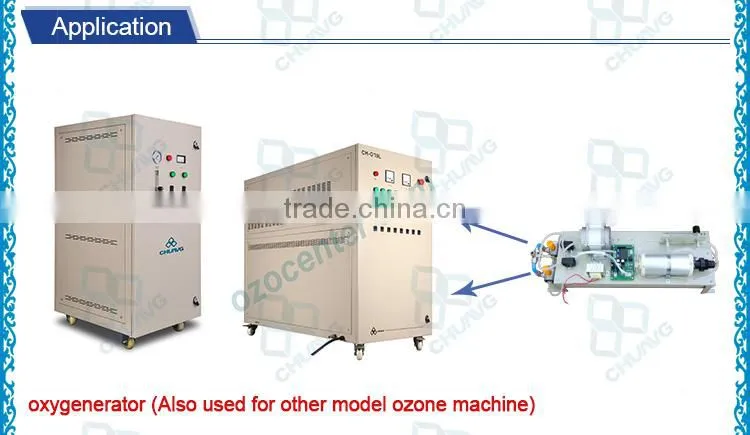

Application:
About us
Company Profile
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd., located in Guangzhou City, Guangdong Province, is a professional ozone generator manufacturer specializing in R & D, design, manufacture and processing of ozone products & spare parts.
We also provide professional service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are CH-KTB, CH-BT, CH-BT and CH-KTA series of Portable ozone Generators with the brand of "oZocenter".
CH-PTF, CH-PT series of Ceramic Ozone Generators and CH-PC series enamel ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing industry, and pharmaceutical industry etc.
Our series products, which seek for greater perfection and for the quality goal of excellence, is special reflected in the CH-KTB, CH-BT, CH-KTA, CH-PTF, CH-PT & CH-PC series products. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new requirements.
Chuanghuan will become your close partner and friend with its good reputation and professional skills.
