Specifications
Water cool complete ozonizer1.Built-in oxygen system
2.High ozone concentration
3.Large ozone output:40g 50g 100g

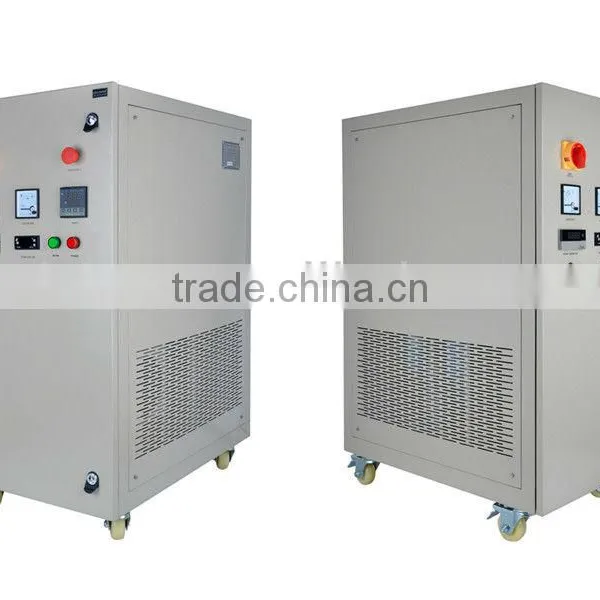

High ozone concentration water cool complete ozonizer with built-in oxygen system
Description
Item |
Unit |
NT-Y10G |
NT-Y20G |
NT-Y30G |
NT-Y40G |
NT-Y50G |
Oxygen flow rate |
LPM |
1~3 |
2~6 |
3~10 |
5~15 |
8~18 |
Ozone concentration |
Mg/L |
58~88 |
57~88.6 |
87.5~56.8 |
90~56 |
90~60 |
Ozone output |
G/Hr |
5~10 |
11~21 |
16~34 |
27~50 |
43~64 |
Power |
Kw |
≤0.96 |
≤0.98 |
≤1.43 |
≤1.62 |
≤1.85 |
Fuse |
A |
13 |
13 |
15 |
15 |
20 |
Cooling water flow |
LPM |
30 |
48 |
|||
NW |
KG |
105 |
105 |
166 |
170 |
175 |
Size |
mm |
490×740×1200 |
650×1030×1230 |
|||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Applications
1. Waste water treatment , Chemical oxidation ,sterilization
2. Swimming pool and SPA water sterilization and disinfection
3. Domestic water sterilizer for housing estate
4. Aquaculture and aquarium water sterilization
5. Space air purification ,sterilizing room
6. Ozonated water for sterilization and disinfection ( sea food processing ,washing beverage bottle and Barrel, washing floor )
7. Bottle water sterilizer
8. Beverage and Drinking water disinfection
9. Ozone generator for food processing
10.Decompose chemical residual from vegetable and fruit ,Eliminate bacteria and virus for
agriculture products to keep fresh ,use for food processing, cold storage .
Control panel
Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
Feature
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Ozone Generator
1.Good diffusivity: Ozone gas can reach to everywhere without dead angle.
2.Strong sterilization ability: Ozone sterilization ability is the same with
peroxyacetic acid (C2H403),which is stronger than regular disinfectant.
3.Convenient raw material: Ozone use oxygen gas as raw material, which we
can get from air ambient.
4.Eco-friendly: Ozone can be resolved into oxygen and oxygen atoms, so without
secondary pollution.
Quality Control
Every procedure has personnel inspection. All the products must be tested and qualified before packaging.
In order to ensure the best quality , every ozone generator has been strictly tested before delivery. We promise the good performance and all parts completely according to your order .
Delivery & Payment
1. After we have received the payment, we will send the items within 3 days.
2. We will send the tracking number after the items production has been completed.
3. The shipping cost does not include any import taxes,and buyers are responsible for customs duties.
4. All most countries delivery method: DHL
After Service
We provide 12-month free maintenance.The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
Feedback
Your satisfaction and positive feedback is very important to us.
If you have any problems with our items or services, please feel free to contact us .We will do our best to provide you the best customer service.
Q&A
Question1: How long time it should work for new house?
Answer :Use 2-3 times per week, and each time working for about 30 minutes. If there are too many rooms, can take turns for working. Normally, if used for one week, it will have better environment.
Question2: Can it kill bacterial or keep it fresh for fruits and vegetables?
Answer: Yes! Ozone has very powerful sterilized ability. If used for water treatment, please put the ozone machine at a higher place, prevent water enter into ozone machine.
Question3: Can it used for removing smell in Bathroom?
Answer:Yes! Placed it in bathroom without water splashing, can achieve the effect of deodorant
Question4: Does the machine is working under noisy?
Answer: We have tried to turn down the noisy, but because inside has air pump, so it has a little voice, but it’s acceptable for human.
Question5: What’s the material for machine?
Answer: It uses our company patent ceramic ozone generator tube which is air cooled for both internal and external electrodes. This new patent technology is developed by our company independently. The internal radiator's natural cooling attribute with the unique design of the machine, plus external large areas of surround type radiator, ensure ozone generation unit with low temperature, so that it can work continuously and efficiently.
Professional factory of ozone generator, best quality, lowest
price, good after-sale service and fast shipping !
