Domestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes thumbnail-1
Domestic Patent Alumina Ceramic Tubes photo-1
US$ 50 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
oZocenter
Model Number:
CH-PTF
Contact Supplier Request Quote Chat Now
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name oZocenter
Model Number CH-PTF

Specifications

Domestic Patent Alumina Ceramic Tubes
1.Domestic patent
2.high quality
3.ozone output :1-6g/h
rona discharge

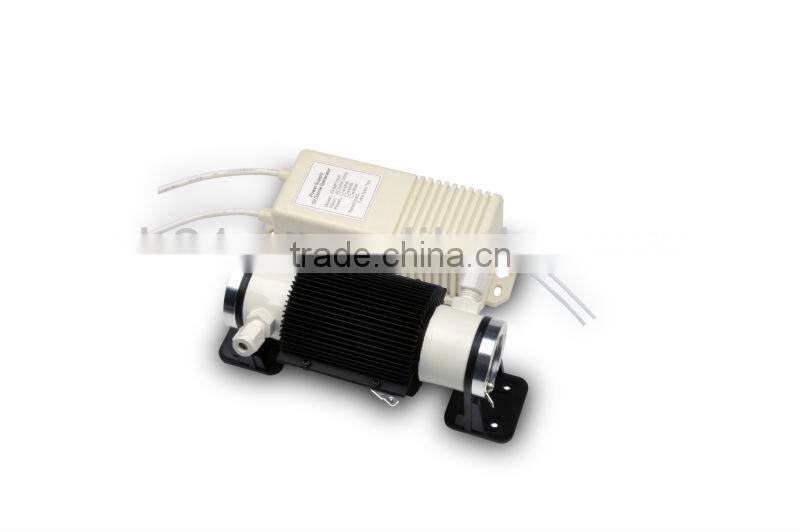

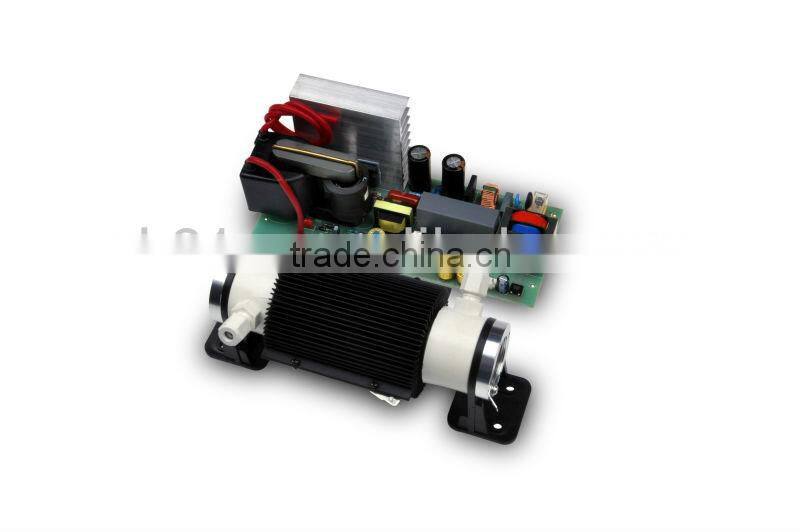

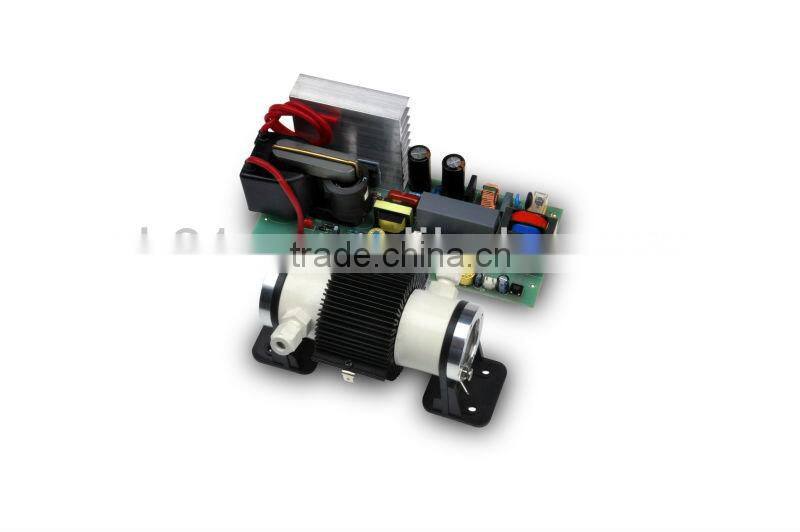

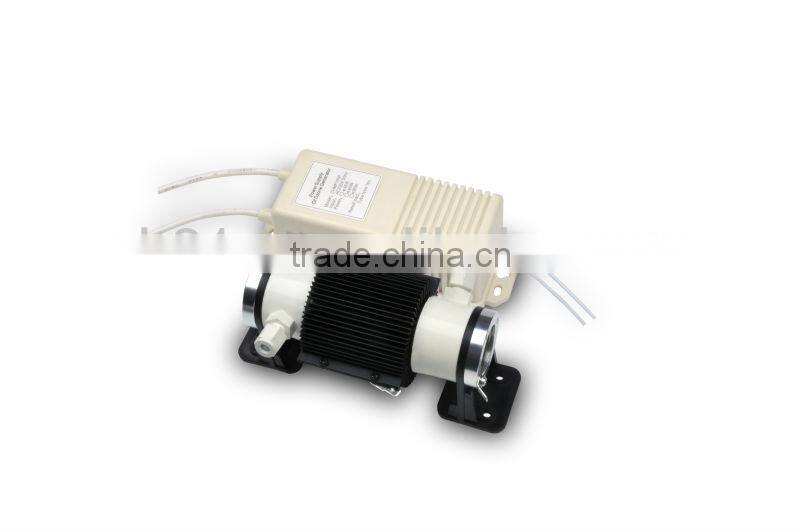

               Domestic Patent Alumina Ceramic Tubes

Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.



Features:



Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional products.



Domestic patent product-got domestic patent in 2008.

Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.



Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.





Molded Connectors Can Workable Under High Pressure Air /Oxygen without Any Gas Leak After Long Work Time



Small in size.

It saves space effectively. The size is 1/4 smaller than similar products.



Easy to maintain and install



Specification:



Item

Unit

CH-PTF

2GM

2GA

3GM

3GA

5GM

5GA

6GA

Oxygen feed flow rate

LPM

0.5-2

1-3

1.2-3

1-2.5

Ozone concentration

Mg/L

50.3-28

65-28

60-32

50-39

Ozone output

G/Hr

1.5-3.36

3.9-5.04

4.32-5.76

3-5.85

Power

Kw

0.040

0.050

0.080

0.085

Output frequency

KHz

7-15

High voltage output

V

3600V Peak to Peak

Power supply dimensions

mm

165×65×52

200×75×83

165×65×52

200×75×83

165×65×52

200×75×83

215×87×85

Location of mounting holes of power supply

mm

152(ID5)

190.5×57

152(ID5)

190.5×57

152(ID5)

190.5×57

/

Cooling method

/

Air cooling for internal and external electrode

Fitting size for air & ozone

mm

ID6, ED8

Ozone output adjustable range

%

/

20-100

/

20-100

/

20-100

Dew point

°C

-45

Line power supply

V/Hz

110/220V 50/60Hz

Ozone tube dimensions

mm

162×60

182×60

200×60

227×60

Mounting hole foot print of ozone tube

mm

140×28(ID5)

160×28(ID5)

177×28(ID5)

204.5×28

(ID5)

Ozone tube weight

Kg

0.50

0.53

0.56

0.65

Power supply weight

Kg

0.59

0.76

0.59

0.76

0.59

0.76

1.10







 Figure1.

Domestic Patent Alumina Ceramic TubesDomestic Patent Alumina Ceramic TubesDomestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes Domestic Patent Alumina Ceramic Tubes





 Domestic Patent Alumina Ceramic TubesDomestic Patent Alumina Ceramic TubesDomestic Patent Alumina Ceramic TubesDomestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes

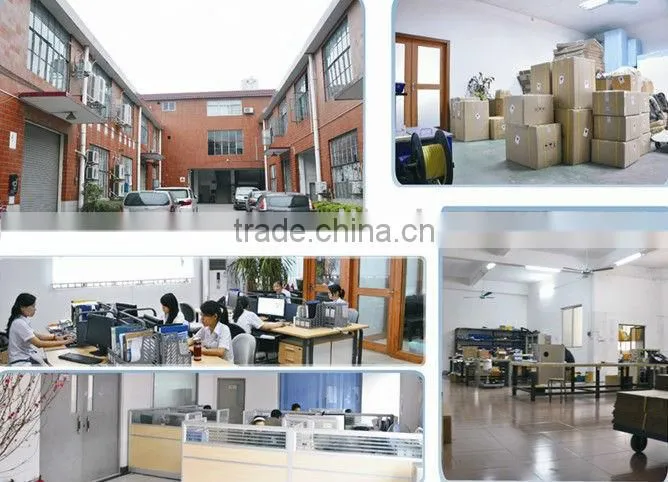

Company & workshop:



Domestic Patent Alumina Ceramic Tubes

Domestic Patent Alumina Ceramic Tubes
