Specifications
5G 10G Water cooling Ceramic Ozone Tube1. ceramic ozone tube
2. manufacturer
3. adjustable or module power

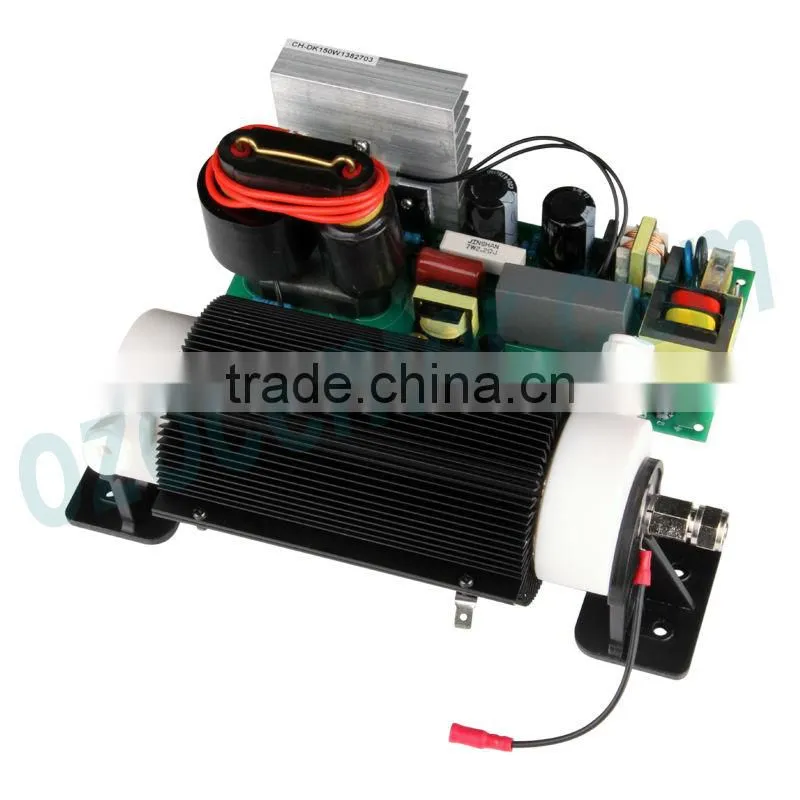

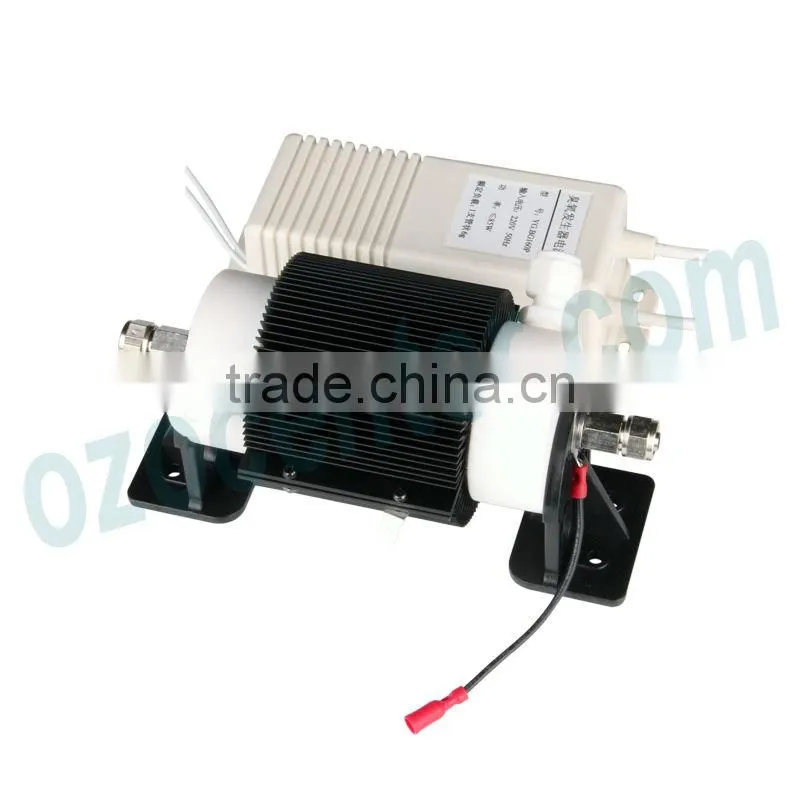

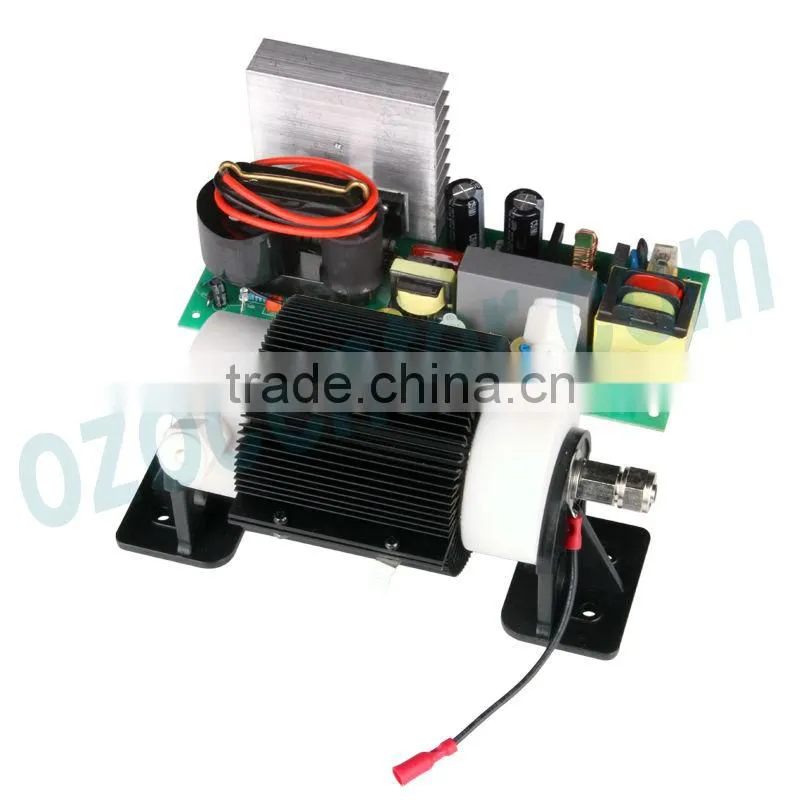

5G 10G patented water cooling ceramic ozone generator with adjustable and enclosed high transformer for water and air purify
Features of ozone generator parts CH-PT Series:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~60 mg/L, which is much higher than conventional products.
2. product which got domestic patent in 2008.
A. The internal electrode cooled by water, external electrode cooled by air (fan).
B. The aluminum plate looks like sun flower which has larger cooling area, easy for heat
dissipation.
C. Thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
5. Easy to maintain and install
6. Quality materials
Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Application:
ozone generator/ozone generator water purifier parts/ozone air purifier parts
ozone generating system parts/ozone generating modules/ozone generating equipment parts
portable ozone generator parts
Specification of ozone generator parts CH-PT series:
Item |
Unit |
CH-PT-5G |
CH-PT-10G |
|||
Module |
Adjustable |
Adjustable |
||||
Oxygen feed flow rate |
LPM |
1-2 |
2-3 |
|||
Ozone concentration |
Mg/L |
54-46 |
56-49 |
|||
Ozone output |
G/Hr |
3.24-5.52 |
6.72-8.82 |
|||
Power |
Kw |
0.075 |
0.19 |
|||
Output frequency |
KHz |
4-12 |
16 |
|||
High voltage output |
V |
3600V Peak to Peak |
||||
Power amplification |
A/V |
IGBT 50A/600V |
||||
Cooling way |
Water cooling for internal electrode, air cooling for external electrode |
|||||
Fitting size |
Air inlet & ozone outlet: ED6mm Cooling water: ED8mm |
|||||
Cooling water flow rate |
L/hr |
1750 |
1750 |
|||
Ozone output adjust range |
% |
/ |
20-100 |
|||
Line power supply |
V/Hz |
110/220V 50/60HZ |
||||
Dew point |
°C |
-45 |
||||
Ozone tube dimensions |
Mm |
159×100×110 |
250×100×110 |
|||
Power supply dimensions |
mm |
165×65×52 |
200×75×83 |
182×115×90 |
||
Mounting hole foot print of ozone tube |
mm |
156×29 |
215×29 |
|||
Mounting hole foot print of power supply |
mm |
156×29 |
156×29 |
215×29 |
||
Ozone tube weight |
mm |
0.91 |
1.35 |
|||
Power supply weight |
mm |
|||||
Working conditions:
Ambient temperature:20°C, Oxygen concentration: >99%, Dew point:>-45°C, cooling water output temperature: 20°C.
Welcome to contact me for price and catalogue, thanks!

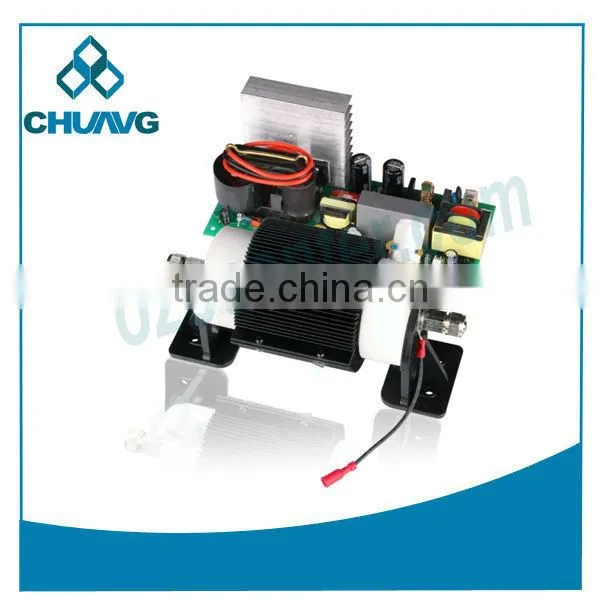

New design :
