Professional Manufacturer Supply Automatic Chicken Broiler Poultry House Equipment

   Professional manufacturer supply automatic chicken broiler poultry house equipment

                                                                      (U-Best)

1.Main feed line system:

Main feed line system components:

Silo Featuress:

*Silo with standard ladder and guard railing is safe and reliable.

*Solid connection and good sealing performance.

*Steel sheet double-layer galvanized ensure a service life of more than 10 years.

*FRP(Fiber reinforced plastics) silo has a good performance of water-roof,moisture-proof,and insulation,which ensure a long service life.

Parameter of silo:

Driving Motor:

Power:0.75Kw

Voltage:380V

Frequency:50HZ,three-phase AC current

Feed level Sensor:

Germany IFM feed level sensor

Feed conveying:

Diameter of conveying pipe:75*3.6mm.

Material:PVC

Helical spring auger from South Africa

Feeding ability:1400kg/h,Maximum

Conveying length:60m

Radius of bending pipe:R1500-2000

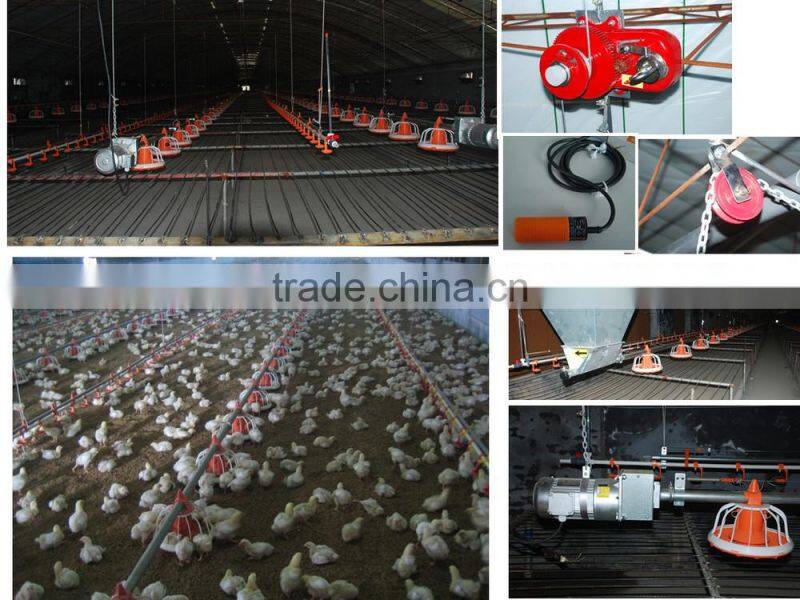

2.Automatic Pan feeding system:

This system convey feed through the rotation of helical spring auger,inclulding main feed line and pan feeding lines.

Main feed line:silo/manpower hopper is the beginning of main feed line.there is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.

Advantages:Reduce labor intensity,one person is enough for one house.

Pan feeding line:There is a feed sensor at the end of each feeding line which controls motor on and off to achieve automatic feed delivery.

Installation layout picture of main feed line in chicken house:

Main features of broiler feed pan:

 *Outside adjustment feed pan has 6 gears of feed amount,and the other kinds has 13 gears.

 *Feed pan slide switch could adjust feed flow until it is filled.

 *Outside adjustment feed pan is more convenient,accurate and quick to adjust feed flow,the operation is to hand by the out side grids and rotate up and down.

 *Pan bottom can be disassembled on the fround,working for day-old chickens.

 *V-Pan plate design can reduce feed storage on bottom,so birds can always eat fresh feed .The design can also prevent the birds from staying too long on the plate.

 *The edge of pan plate tilt towards the center,which can avoid waste of food.

 *The smooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.

 *Feed pan installation has fixed type or swing type.

Driving Motor:

(Taiwan motor with overload protection of IP55 grade)

 Power:0.75KW

 Voltage:380V

 Frequency:50HZ,three-phase AC current.

Feed Hopper:

 Bin volume:115L,200L

 Material:hot-drip galvanized sheet

 Material Thickness:1mm

Pan feeding system:

 Conveying pipe:4-pan/3m.3-pan/3m

 Diameter:45mm

 Material:hot-dip galvanized steel pipe the zinc coating amount is more than 275g/m2.

 Thickness:1.2mm

 Spring auger:Imported from South Africa.

 Feeding ability:400kg/h

Main part of the system:filter,pressure regulator,nipple drinking line.Lifting and suspension system,electric shock system etc.

Lifting and suspension system:

Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone's distortion,it is bad for chicken growth,and also can have some water wasting).it is very easy to adjust drinking system's height  if use this system.

 Nipples for the system:

Use good quality engineering plastic for outer,for the inner,we use good quality stainless stell.All nipples are anti-rusting,service life over 10 years.

Double-sealing structure,with good seal ability,can avoid to effect the chicken house for leaking.Valve rod is movable in 360 degree,it's suitable for all chicken to drink.

Water display level tube:

Use high transparency& impact resistant materail,it is sturdy and durable,and convenient to watch water level.This device with advanced design,it is very easy to take down and clean.

Nipple capacity ablility:

Broiler:8-12/nipple.

Reserve layer:12/nipple.

Reserve turkey:12/nipple.

Duck:10/nipple.

Breeder:10/nipple.

4.Ventilation system:

Air inlet window component:

* With UV resistant additive,air inlet has stronger anti-aging ability,longer service life.

* The unique structure on window edge making it more closely and firmly.

* Wind deflector can prevent cold wind blowing down,make the fresh air blow in the center of chicken house,which ensures a better ventilation effect.

* Double spring ensures excelling sealing.

* Flexible opening with anti-bird nets.

*Manuel control:Operater will check the pressure of chicken house,control the winch by hand until meet the request.

Butterfly Cone fan:

Features:

* Design of butterfly door makes a minimum wind resistance and opimum performance.

* Belt:automatic tensioning device improves transmission efficiency and prolongs service life.

* Frame:high quality hot-dip galvanized steel sheet.

* Motor:Three-phase motor with 3c certification,high efficiency and energy-saving,safe and reliable.

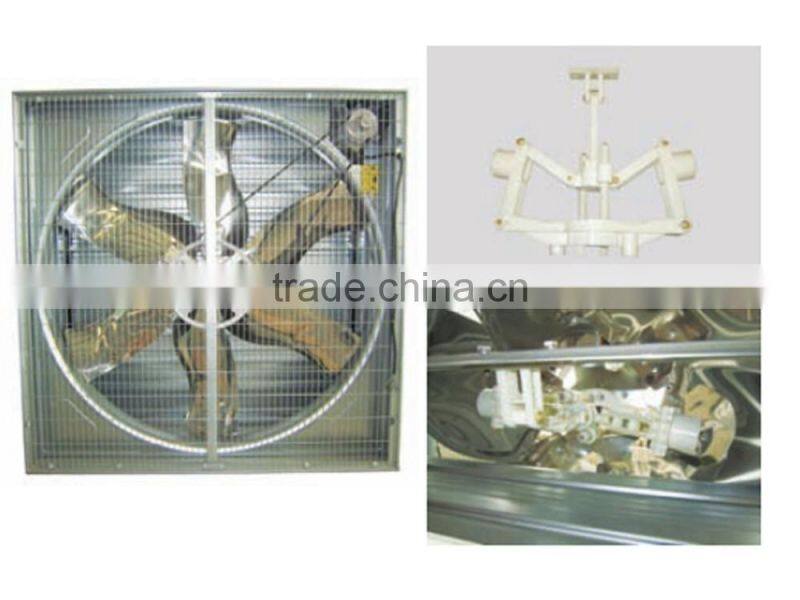

Axial flow fan:

Belt's automatic tensioning device improves transmission efficiency.

The phenomenons of belt elongation and skid during usage bring big harms to fan,such as a shorter belt's service life,a smaller transmission efficiency and air capacity,and loss of energy.

5.Environment controller:

Main features of environment control systems:

* Install different environment controller according to equipment components situation in poultry house.Our controller includes three series of T607,T610 and T616 imported from Israel Agrologic and MRS 6616 developed and produced by ourselves.

* Control box made by a mational standard box body,and power controls are CHNT and SCHNEIDER.

* Environment controller is designed to control poultry breeding equipment automatically and intelligently according to local climate and equipment requirements.

A variety of environment controllers are customized from Israel,it can reach a most advanced control level in poultry house control.

6.Cooling pad system:

Best Combination:The longitudinal way of cooling -fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.According to many years of practice even in the hottest summer,with reasonable designed and installed ventilation system,it still can control the temperature of chicken house under 30 degree,then make the effect of hot temperature on the growth of poultry to miniumum.

7.Fogging system:

Function:It is effectively tools for cooling ,darmping,dedusting and dinsinfecting the house.

Characteristics:

* Istant cooling but not wet.

* Large flow,high pressure,good atomization,and corrosion resistance.

* Increase the humidity to the preset range according to the requirements-60-70 percent of the maximum relative humidity.

* Effectively prevent the dust,and reduce respiratory diseases of livestock and poultry.

* Disinfect with chickens.

 8.Heating system:
