Automatic Chicken House Equipment For Poultry Chicken Farm
Brand: U-Best
Our services for your project of Automatic Chicken House Equipment:
1. Chicken Equipment: produce and supply first-class equipment with good price;
2. Chicken House: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipments and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.
Advantages of our complete Automatic Chicken House Equipment:
1--Save time and labor, one shed just need one person.
2--Increase survival rate.
3--Easier to operate.
4--Easier to install and clean.
5--Longer service life.
6--Competitive price.
7--Complete controlled poultry equipment.
To make a Quotation of complete Automatic Chicken House Equipment, we need the following information from clients:
1. House Size (length x width x height)
2. Quantity of birds.
3. Types of chicken: broiler chicken/layer chicken/breeder chicken.
4. Weight of broiler chicken when sell in market.
5. Types of breeding: on the ground or in cages.
6. Poultry shed location and local climate condition(temperature, humidity...)
A complete automatic chicken house equipment controlled by environment control system, which could do automatic feeding and drinking for chicken, automatic ventilation and cooling for chicken house. It includes:
1. Main stock line of silo system
2. Automatic pan feeding system
3. Automatic nipple drinking system
4. Automatic ventilation system
5. Cooling pad system
6. Environmental and power control system
7. Spraying and disinfecting system
8. Heater
1. Main stock line of silo/manpower hopper system
Main feed line: silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.

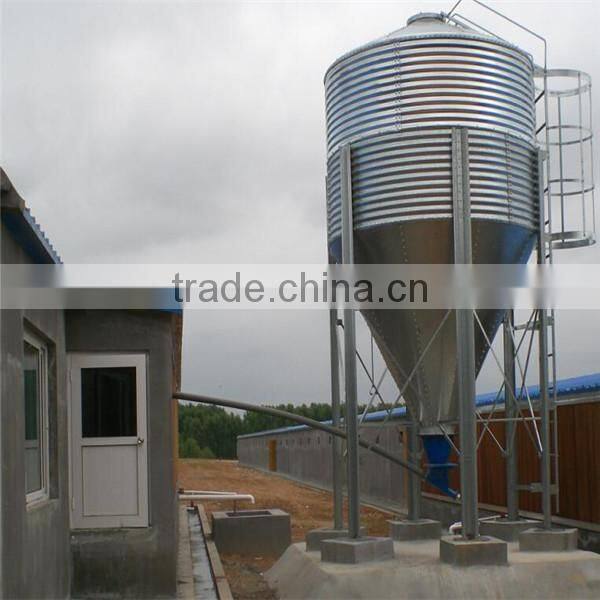

Silo
Model | Volume | Height(no foundation) | Diameter |
UB-4.0(1802) | 6.2M3 | 4.9M | 1.833M |
UB-7.3(2701) | 11.2M3 | 4.5M | 2.75M |
UB-10.6(2702) | 16.4M3 | 5.68M | 2.75M |
UB-14.0(2703) | 21.6M3 | 6.8M | 2.75M |
UB-20.8(3602) | 32M3 | 6.9M | 3.667M |
UB-27.3(3603) | 42M3 | 7.9M | 3.667M |

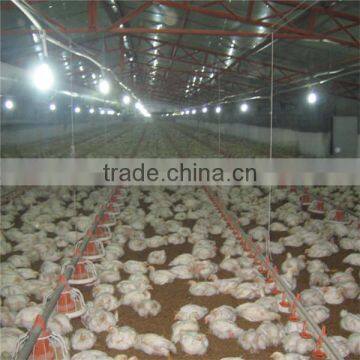

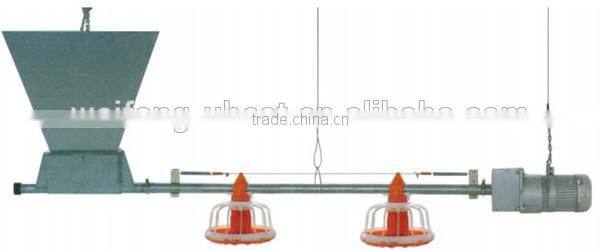

2. Automatic pan feeding system
Automatic pan feeding system consists of a driving motor, a hopper, a conveying pipe, an auger, feed pan, a suspension lifting device, an anti-perching device and a feed sensor.
1.Driving Motor: high-quality special driving reduction motor, China Taiwan motor and European motor for your choice |
Power:0.75KW/1.1KW/1.5KW; Voltage: 220V, 380V, others; Frequency: 50HZ,60HZ; Phase:1-phase,3-phase. |
2.V-shaped bin with hopper |
Bin Volume:115L, Hopper volume:38L Material: hot-dip galvanized sheet |
3.Conveying Pipe |
Diameter:Φ45mm; Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2 |
Auger Helical spring auger imported from South Africa, Feeding ability:450kg/h Maximum conveying length:140m |
4.Feed Pan |
Pan distance: 4 pans/3 meters, 3 pans/3 meters. Material: PP Diameter:360mm×360mm |
5.Feed Sensor |
Imported from Germany; time delay range 0 to 2 hours. |
6.Hanging System |
7.Anti-roost System |
3. Automatic nipple drinking system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
1. water front system | the front controller for nipple drinking system,including filter, water meter and doser etc, which is used to adjust water supply and stabilize drinking volume. |
2. water pipe with nipple drinkers and drip cup | water pipe -- made by transparent PVC material with European Technology. nipple drinker-- two kinds: a. outer engineering plastic and inner stainless steel; b. outer and inner both stainless steel; Both kinds nipple drinker use double-sealing structure, good seal performance and never leak water; Chicken could freely drink from 360 degree. nipple drinker capacity -- broiler: 8-12pcs/nipple layer: 10-14pcs/nipple(breeding stage) 8-10pcs/nipple(laying stage) turkey: 6-12pcs/nipple duck: 10pcs/nipple breeder: 10pcs/nipple drip cup - single-arm drip cup with a reasonable structure is more suitable for new culture idea. |
3. pressure regulator | Double water-inlet-tube and flushing pressure regulator ensure large water flow. The massive recoil tuner features stable tuning, high dexterity, sufficient and even liquidity, convenient waterline flushing, and can save water and time. It is equipped with the standard double ball valve, which is easy to change. |
4. water-level display pipe | Use high transparency and impact resistant material, sturdy and durable, and convenient to watch water level. Poultry Days Water Level Height(mm) 1~ 7 days 50~80mm 8~14 days 80~200mm ≥ 15 days 200~350mm |
5. lifting and suspension system | It is easy to adjust height of this drinking system in different poultry growth. It is very important to keep a right and appropriate height for poultry in different growth period, too higher or lower height can cause poultry bone distortion, which is bad for poultry growth and waste water. |
4. Automatic ventilation system
This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets, axial flow fan and butterfly cone fan for your choice
36” Box Fan | |
Air capacity | 20800m3/Hr |
Size | 1000×1000×450mm |
Noise | ≤64DB |
Power | 0.4KW |
Voltage | 220V/380V/others |
Electric Current | 1.6A |
Weight | 66KG |
| |
50” Box Fan | |
Air capacity | 43070m3/H |
Size | 1380×1380×450mm |
Noise | ≤65DB |
Power | 1.1KW |
Voltage | 220V/380V/others |
Electric Current | 2.8A |
Weight | 88KG |
| |
50” Butterfly Cone Fan | |
Design of butterfly door makes a minimum wind resistance and optimum performance | |
0.75KW 3 fan blades | Air capacity: 41525m3/h Fan blade made of Krupp stainless steel from Germany, high stability |
1.1KW 6 fan blades | Air capacity:49452m3/h Fan blade made of Krupp stainless steel from Germany, high stability |

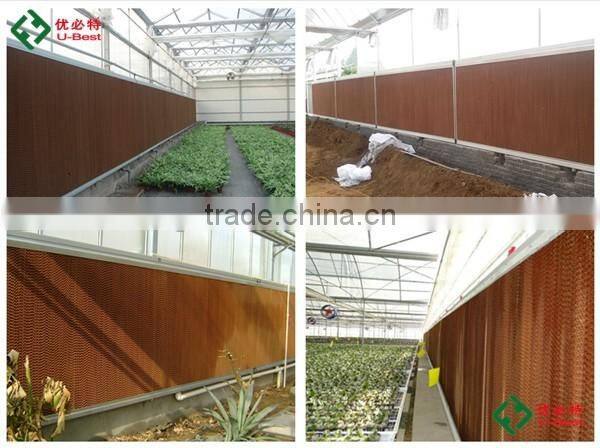

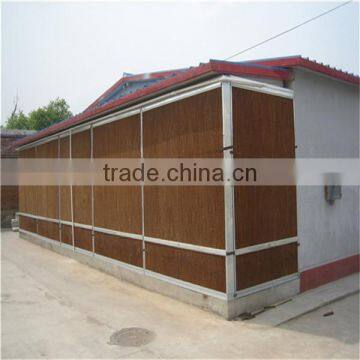

5. Cooling pad system
Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Color | Black, yellow, green |
Thickness | 100mm, 150mm |
Width | 300mm, 600mm |
Height | 1660mm, 1960mm, 2160mm (with frame) 1500mm, 1800mm, 2000mm(without frame) |
Frame | Aluminium frame --high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame. |

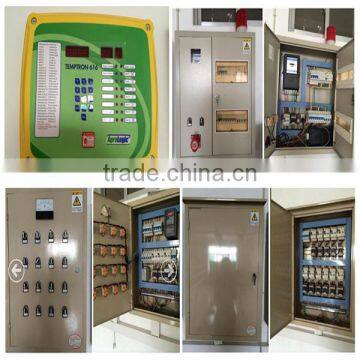

6. Automatic environmental and power control system
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.
7. Spraying and disinfecting system
This system effectively cools, humidifies, remove dusts and disinfects poultry house(temperature could be quickly reduced by 3-8 degrees centigrade within a few minutes)
Function | 1. Humidification: increase the humidity to the preset range according to the requirements - 60~70% of the maximum relative humidity. |
2. Cooling:cooling poultry house by 3~8 centigrade within few minutes. | |
3. Disinfection: add disinfectant into water source of spraying and fogging system, then fogging system could disinfect the chicken house. | |
4. Washing: the Spraying Machine could also do wash for chicken house. | |
Specification | 1. Main Pipe -- Copper Pipe diameter: 9.52mm hole wall thickness: 0.8mm inner hole thickness: 7.92mm |
2. Branch Pipe – High Pressure Nylon Pipe diameter: 9.52mm hole wall thickness: 2.7mm inner hole thickness: 4.12mm | |
3. Spraying Nozzle -- #3 copper nozzle with double holes, every 3m one double-hole nozzle to ensure no spray dead corner. nozzle hole diameter: 0.25mm working pressure: 50~80 bar spraying volume: 64~106ml/min spraying partical: 25~30 micron aerosol | |
1.Spraying Engine – movable power: 3.7kw(3 phase)/2kw(1 phase) water absorbing capacity: 20~38L/min maximum working pressure: 120bar |
8. Heater
Heating poultry house when it is needed to meet the temperature demand of chickens at different growth stage. Hot-blast heater of coal and diesel, poultry gas heater, infrared gas brooder and fan-heater of gas/diesel, 4 different kind at your option.
Standard export package of automatic chicken house equipment for export is in container. Shipment in 15 days after the order confirmation.
1. silo: disassembled, spare parts in carton box, galvanized sheet in bunch and in bulk;
2. feeder: feeder pan in carton box, feed pipe in bunch in bulk;
hopper in bulk;
3. water: PVC pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk;
4. fans: disassembled way or assembled way;
5. air inlet: carton box;
6. cooling pad: assembled with aluminium frame, or disassembled;
7. heater: in carton box
8. fogging system: spraying engine in carton box, spare parts in carton box
9. enviroment control: In carton box;
Weifang U-Best Husbandry Equipment Co.,Ltd
We are professional manufacturer and supplier of chicken house equipment in China!
Our equipment has passed ISO9001:2008 Quality Management System Certification!
We have our own production line so we can control the quality very well! Our poultry equipment has been exported to more than 30 countries and have good market reputation!
We have many different project of chicken farm in Indonesia, Philippines, Columbia, Costa Rica, Paraguay, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.
Welcome to contact Ms. COCO in U-Best company!
