Automatic Chicken Farm Supplies Farm Equipment Chicken

                                         automatic chicken farm supplies farm equipment chicken

                                                                  (Brand:U-Best)

Advantages about farm equipment chicken:

1).Time saveing &Labour saving, one person is enough for one chicken house.

2).Increasing chicken living rate.

3).High quantiy to ensure non stopping running of your houses.

4).Comparitively cheap price.

5).Automatic poultry farming equipment.

 Good services for farm equipment chicken:

 1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.

 2).Equipment installation -- we can dispach our engineer to your local for equipment installation.

 3).Workers training--we can train your workers, to make sure no-risk farming.

 4).After-sale service--prompt reply for any questions from our clients.

To give you a reliable price, please let us know:

1).Chicken shed size: (length×width × height) or how many chicken you plan to raise?

2).Voltage, frequency, single phase or three phase?
3. Weight of chicken when you sale to the market (the rearing period, From   -  weeks)?

4. Types of chicken: broiler, layer or breeder?

5. Types of breeding: in cages or on the ground?

6. Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake?

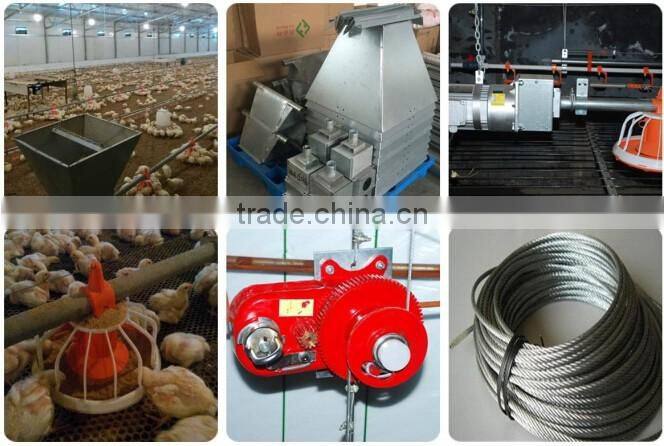

1.Main feed line system:

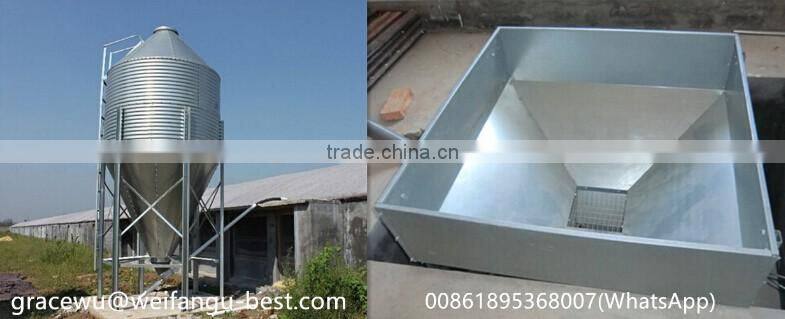

silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line

which controls motor on and off to achieve automatic feed delivery.

Silo Parameters:

2.Automatic Pan Feeding line system:

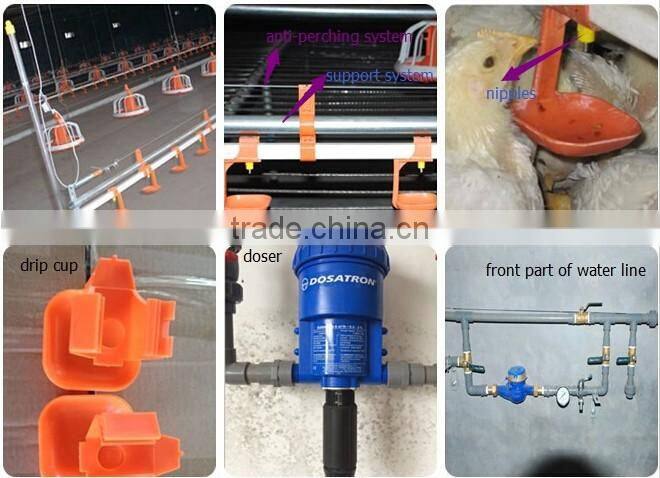

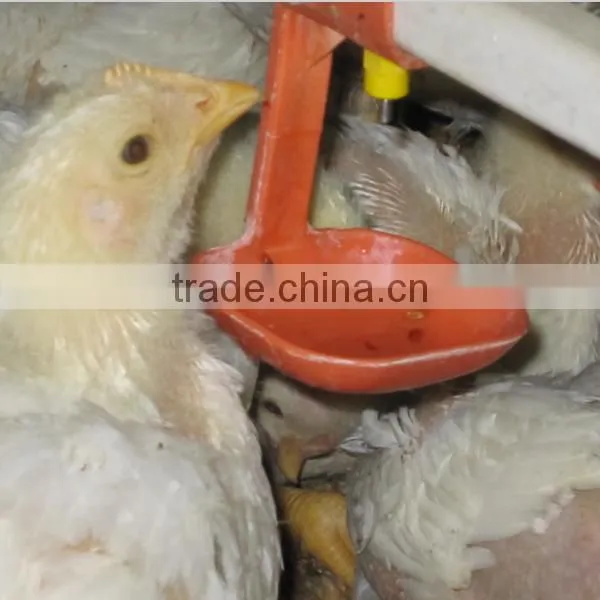

3.Automatic nipple drinking line system:

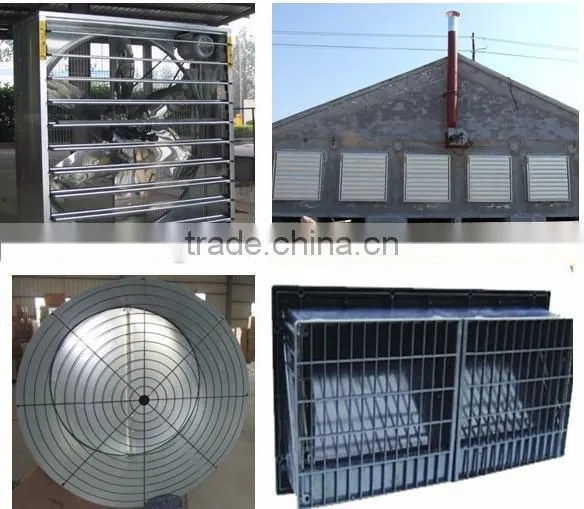

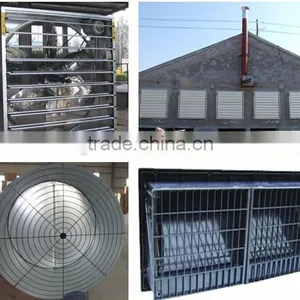

4.Automatic ventilation system:

The main parts of ventilation system is the big fan and small fan. They are controlled by the control system.

The NO. of the fans to run was decided by the temperature of the poultry house.

Ventilation fan parameters:

5.Cooling pads system:

Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on one side of

the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs a lot amount of heat.

The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling pad in chicken house is about 6-8 times than

the fans.

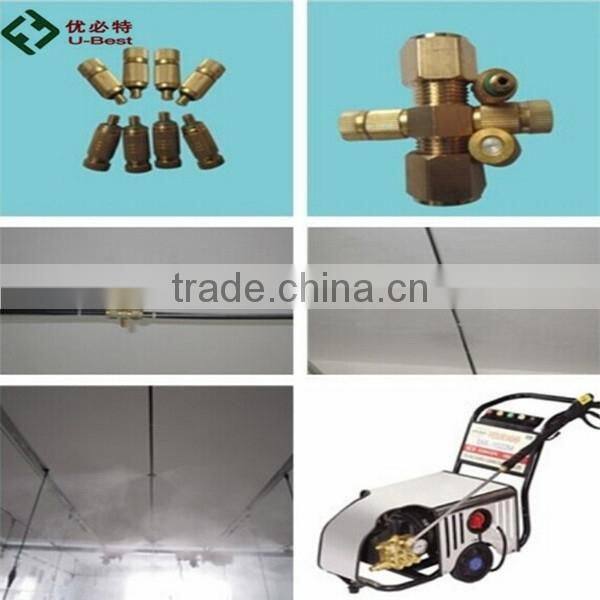

6.Spray & disinfecting system:

Function:It is effectively tools for cooling, damping, dedusting, disinfecting the house.

Installtion layout for fogging system:

1) There are three foggy lines in standard house,and each nozzle with two spraying hole every 3m to esure

spray into every corner

2) Side pipe is anti-high pressure PE pipe and able to endure high pressure of 100kg,anti-corrosive

3) Main pipe is made of anti high pressure copper tube,from which two ways are divided,to ensure homogeneou

atomizing granule everywhere under identical spraying pressure.

7. Best environment control system for poultry:

1).Environment controller: Israel T607, T616, Image II/China brand UBT-2000 are optional.

For example of T607, it has 8 outputs for fans,heaters, cooling pad alarm,2 outputs for regulating fans

speed and lighting system, 2 output for alarm of feed and water, minimum ventilation curve and temperature

reduction curve are built inside T607 for reference.

2).Power distribution box: UPS power outage alarm is including,the alarm function is that, for example,

the motor for feed line get trouble. it will trip, responsible for that part of the motor feed line gate will jump,

does not effect other part's running.

3).Main power box: receive the signal from T607 (or other controller) and sends signal to vice power control

box, the vice power control box will executive action.

8.Poultry heating system:

Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.

Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.

9.Curtain system:

Our curtain is drop down system, including galvanized support pipe,pulley, nylon rope,curtain, winch, Curtain

system is designed for open poultry houses in high temperature districts. The curtains can replace an entire

wall or parts of the wall and are also operated as a ventilation system for the poultry house.

Facotry Stock for overall world clients-- farm equipment chicken :

Packaging&Shipping--farm chicken equipment:

• Feeder pan: unassembled, in carton box;
• Feeding pipe: 20pcs per bunch, in bulk;
• Hanging system: in carton box;
• watering pipe fitted with nipple, in plastic bag, 20pcs per each;
• Water spare parts like medicator, regulator,cup in carton box.

 Weifang U-Best Company informarion:

Please feel free to contact us for more details about farm equipment chicken!
