advanced design automatic farming equipment for broilers and chickens
(U-Best)
Advantages about automatic farming equipment:
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing chciken living rate.
3).High quality to ensure non stopping running of your houses.
4).Comparitively cheap price.
5).automatic poultry farming equipment.
Good services for automatic farming equipment:
1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.
2).Equipment installation -- we can dispach our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
To give you a reliable price, please let us know:
1. Size: (length×width × height)
2. Quantity (discount based on order)
3. Weight of chicken when you sale to the market (the rearing period, From - weeks)
4. Types of chicken: laying hens or broiler chickens
5. Types of breeding: in cages or on the ground
6. Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.

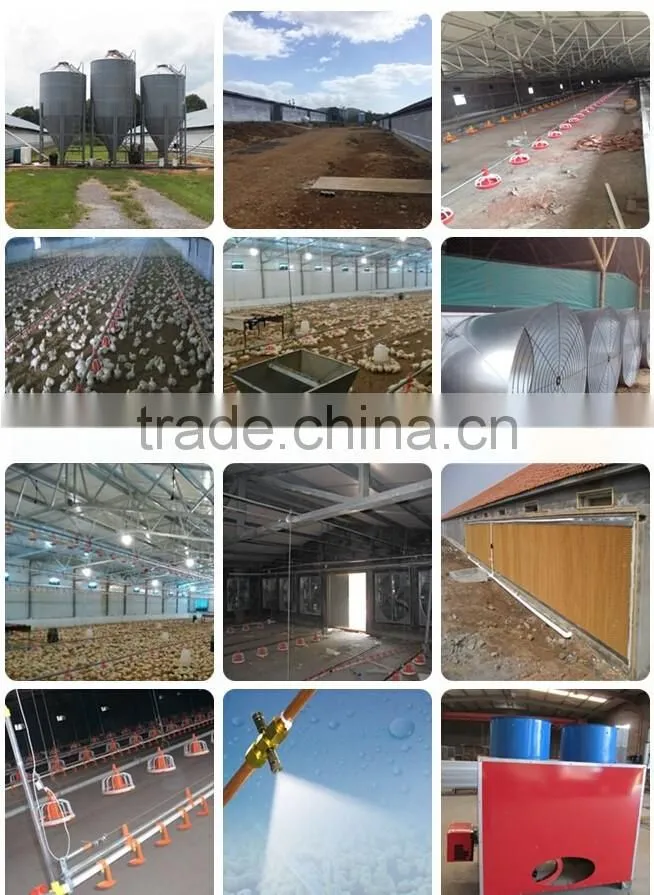

Automatic farming equipment for broilers and chickens inlcuding 8 systems:
1.Main feed line system:

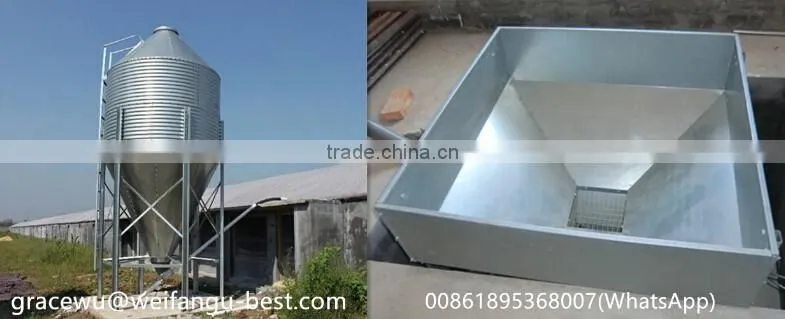

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line
which controls motor on and off to achieve automatic feed delivery.
Silo Parameters:
|
Capacity (Ton) |
Diameter (m) |
Floors |
Leg (mm) |
Weight (kg) |
Height (m) |
Under the port Dia(mm) |
3t/4.283 |
1.8 |
1 |
2.0 |
--- |
3.8 |
420 |
4t |
1.8 |
2 |
2.0 |
--- |
--- |
420 |
5t/7.143 |
2.45 |
1 |
2.0 |
420 |
4.7 |
420 |
8t/12.33 |
2.45 |
2 |
2.0 |
470 |
5.6 |
420 |
10t/14.23 |
2.75 |
2 |
2.5 |
600 |
5.6 |
420 |
13-15/223 |
3.1 |
2 |
2.5 |
640 |
5.6 |
420 |
16t/22.53 |
2.8 |
3 |
2.5 |
655 |
6.5 |
420 |
20t/28.53 |
3.1 |
3 |
2.5 |
755 |
6.5 |
420 |

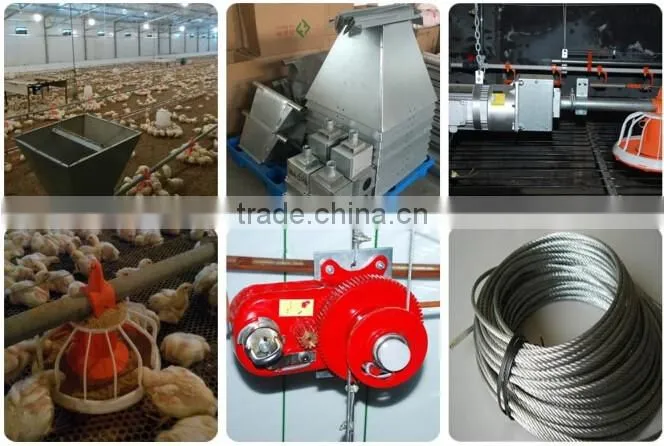

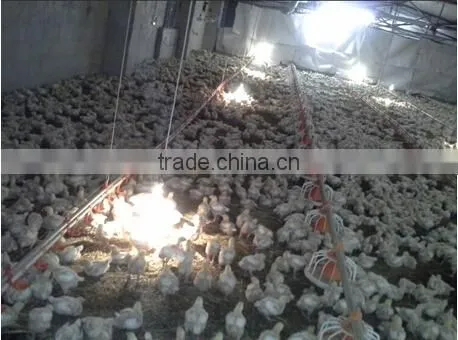

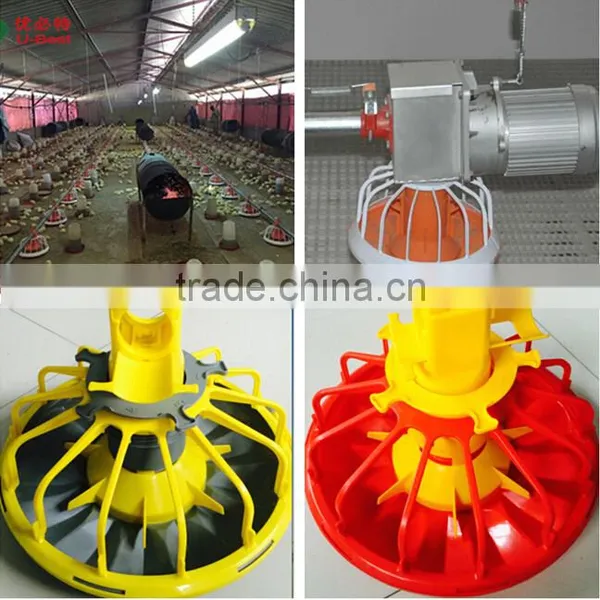

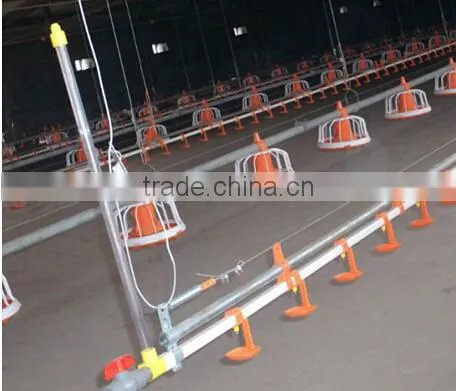

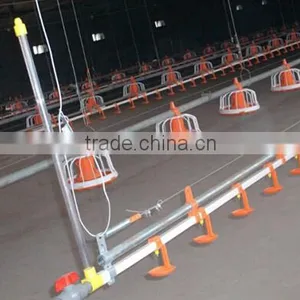

2.Automatic Pan Feeding line system:
Main components |
Fartures&Function |
Vice hopper |
hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional). |
Feed bolts |
Interface diameter is 45mm, including galvanized grid |
Feed pipe |
double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option) |
Helical auger |
Imported from South Africa |
Feed pan |
16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed. |
Control pan |
Including imported feed sensor, High sensitivity |
Suspension system |
Consist of steel wire rope, nylon rope, clips,winch,pulley,etc. |
Driving motor |
Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V, Frequency:50hz/60hz, three phase/single phase |

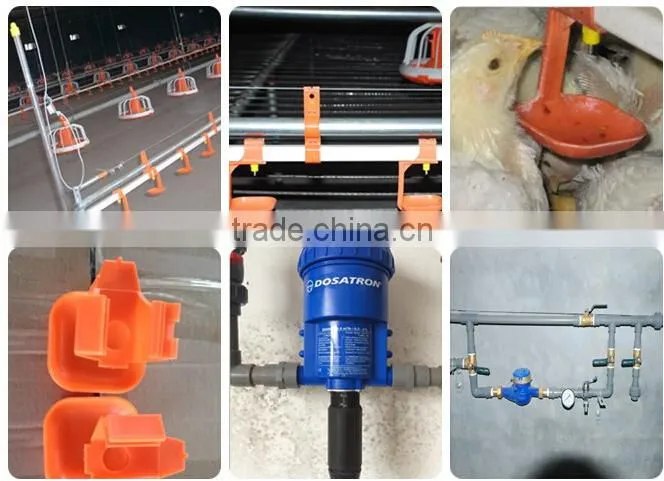

3.Automatic nipple drinking line system:
Main components |
Fartures&Function |
Front part of watering system |
Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system. |

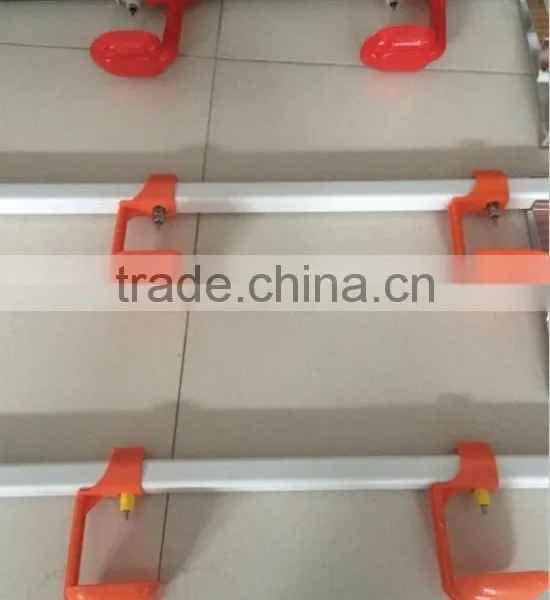

Nipples with drip cup |
3m/12nipples ,3m/15nipples are optional |
Lifting and suspension system |
Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system. |
Water display level tube |
Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean. |
Pressure regulator (Double barreled with large flow capacity) |
Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water. |
Doser (French Dosatoran) |
Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance. |

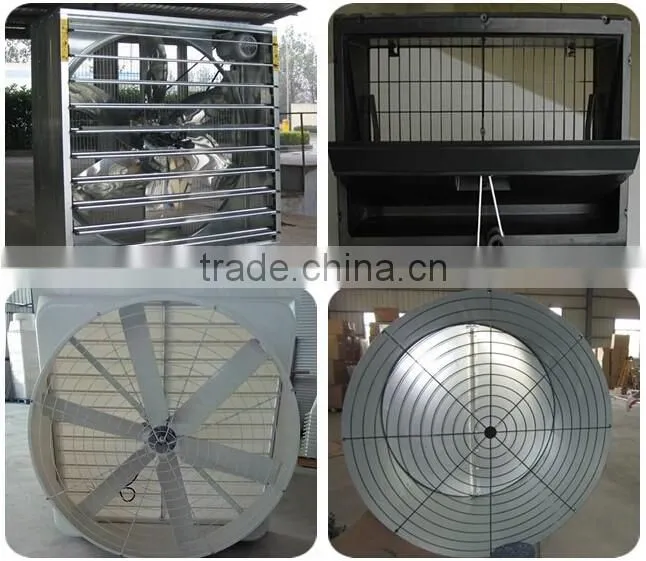

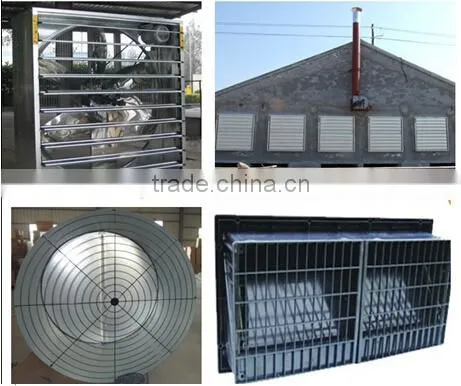

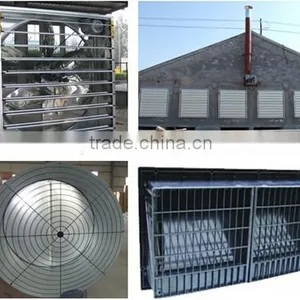

4.Automatic ventilation system:
The main parts of ventilation system is the big fan and small fan. They are controlled by the control system.
The NO. of the fans to run was decided by the temperature of the poultry house.

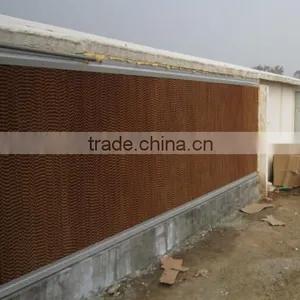

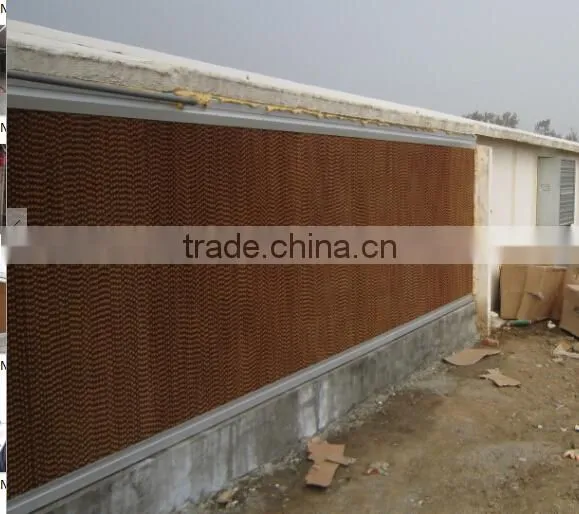

5.Cooling pads system:
When the air goes through the pad, the heat will be taken down by the evaporation of water, so the air
will be cooled before going into the shed.
Cooling pad parameters:
Thickness:100mm;150mm
Width:300mm;600mm
Height:1660mm;1960mm;2160mm
Frame:Galvanized sheet and Aluminium alloy
Aluminium alloy frame:High strength, good corrsion resistance, water distribution uniformity,
beautiful and practical.

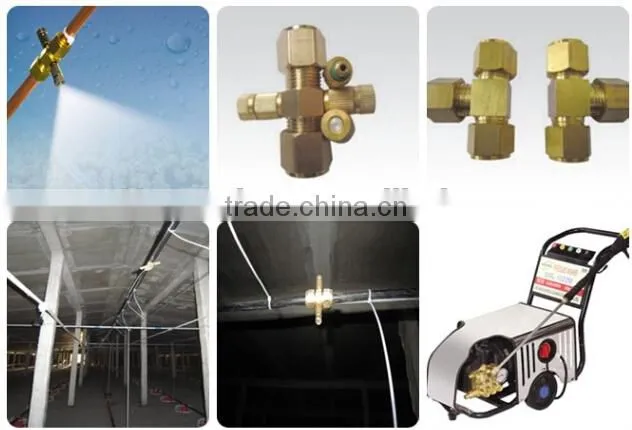

6.Spray & disinfecting system:
Function:It is effectively tools for cooling, damping, dedusting, disinfecting the house.
Installtion layout for fogging system:
1) There are three foggy lines in standard house,and each nozzle with two spraying hole every 3m to esure
spray into every corner.
2) Side pipe is anti-high pressure PE pipe and able to endure high pressure of 100kg,anti-corrosive
3) Main pipe is made of anti high pressure copper tube,from which two ways are divided,to ensure homogeneou
atomizing granule everywhere under identical spraying pressure.
7. Environment control system:
Imported from Israel T607, T616, Image II can set an optimum working mode according to the local climate and raising
environment. This system saves the labor and the resources under the condition of assuring the optimum growth.

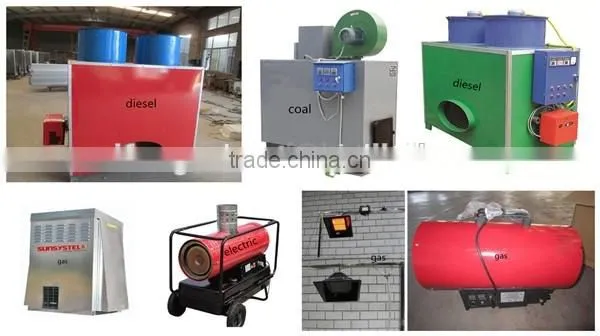

8.Poultry heating system:
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.
Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.

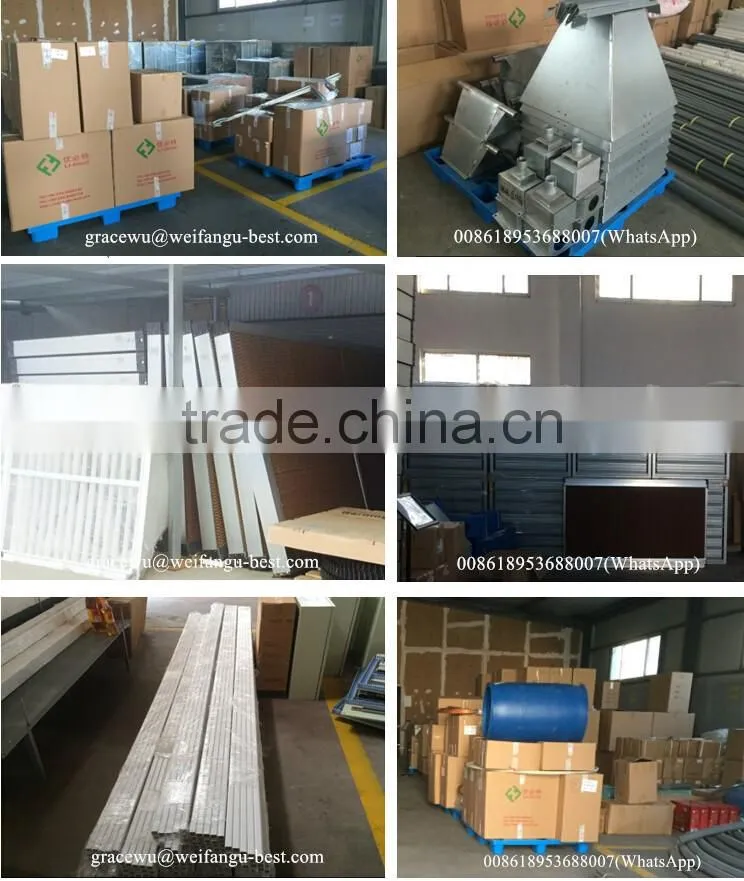

Facotry Stock for overall world clients--automatic farming equipment:

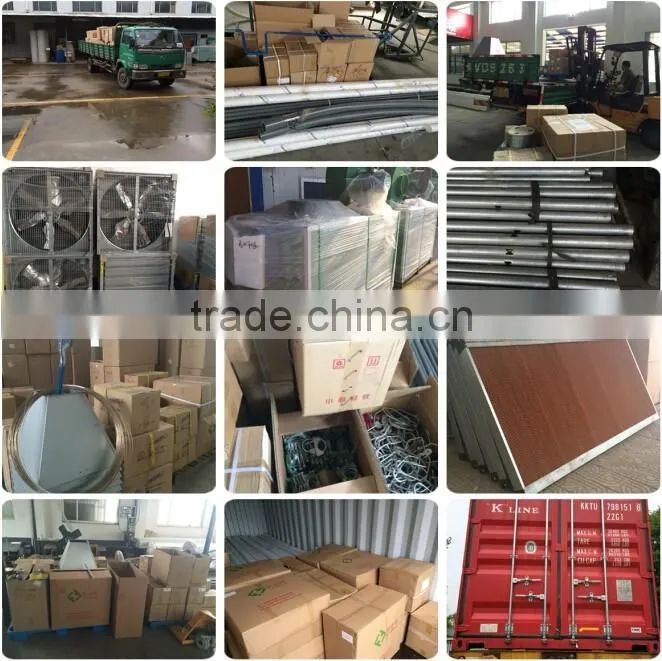

Packaging and shipping--automatic farming equipment:
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.
Wefang U-Best Husbandry Equipment Company information:
Please feel free to contact us for more details about automatic farming equipment.
To be the best partner of Poultry Husbandry Equipment!
