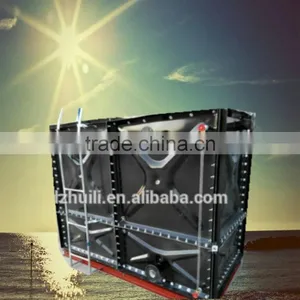

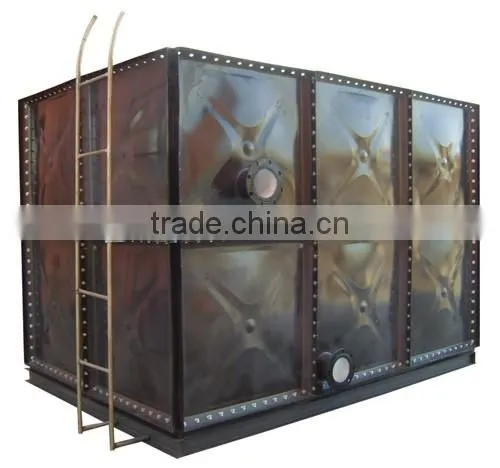

Enameled steel water storage tank water tanks Malaysia
Product Description
material:The panel is carbon steel sheet made by ramming craft.
The size of the panel is:1000*1000mm,1000*500mm,500*500mm.
The thickness of the panel mainly includes:5mm,4.5mm,3mm,2.5mm,2mm,1.5mm.It is different according to the tank dimension.
Flanges: The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method: All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
Structure drawing
Advantages
1. It is not easy to deformation .
2. Strong vibration resistance
3. Resistance to impact large
4. Enamel water tank is cleaning and hygiene,White and beautiful.Ensure no pollutionto water quality
5.Composite plate assembly at the scene.Convenient, quick and flexible and adaptable
6. Acid and alkali resistance, corrosion resistance
7. No leaking , sealed performance is good.
8. Storage of hot water is better than other water tank .
9. Enamel water tank level off is smooth, easy to clean.
Application
•Storage and regulation of living water supply & construction water supply.
•Temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc.
•Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water treatment, medicine, petroleum, chemical and so on.
•Taking flexible, reasonable plate design, suitable for all sizes combined water tank.
Suitable for living water with PH value:6.5-8.5, using life:≥20 years
Panel show
Specification parameter
Accessories
1 Bolt. nut & washers
hot-dipped galvanized material.
2 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.

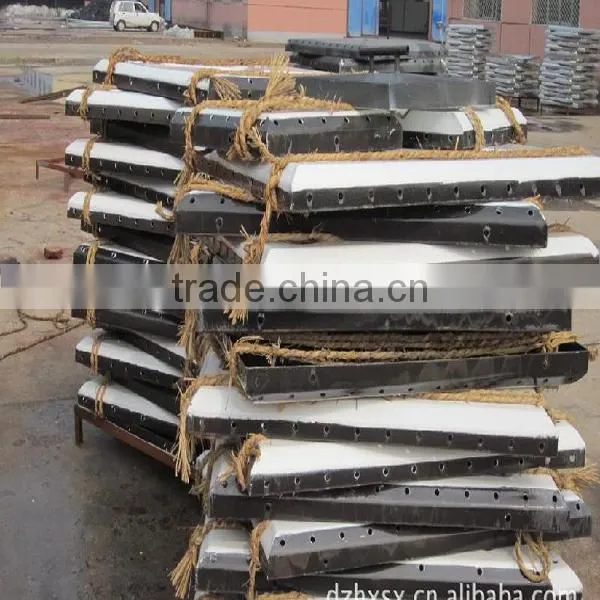

Packaging and shipping
1. plywood 2. iron bracket 3. naked package
Our company
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the production and design of the water tank.
Company's products include: fiber glass reinforced plastic water tank, stainless steel water tank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and underground water tank.
Company tenets: quality first, customer first and best credibility!
The same price with best quality,the same quality with highest reputation!
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
