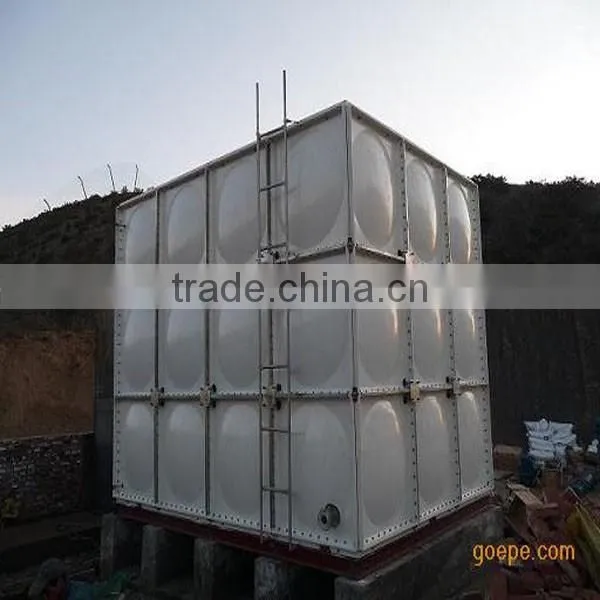

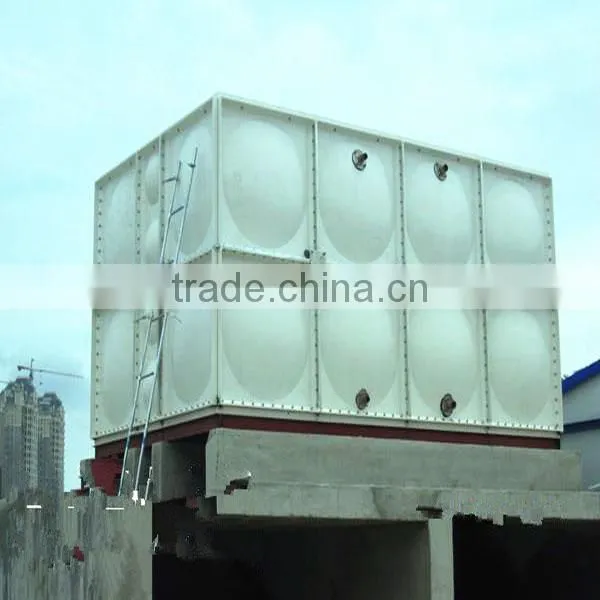

20 cubic meter smc frp grp sectional water storage tank storage water tanks
product information
| Product Name | Fiberglass food grade water modular water tank |
| Other Name | frp water tank,smc water tank,grp water tank,fiberglass tanks |
| Raw Material | FRP/SMC/GRP |
| Product Size | 0.5*0.5m 1*1m 1*0.5m |

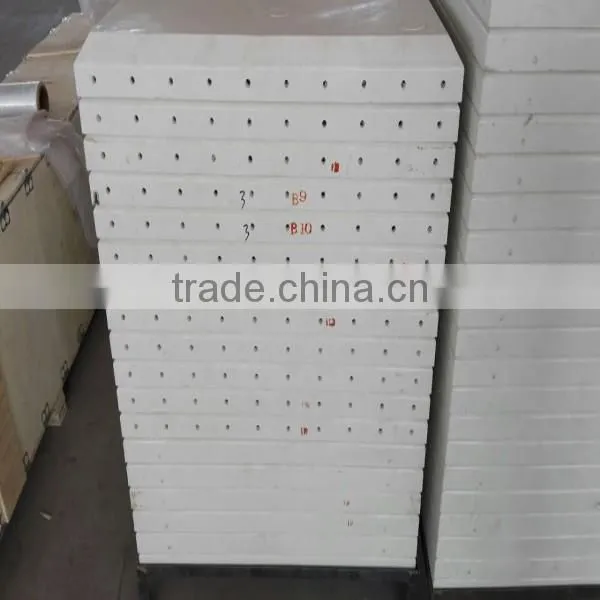

| Panel Thickness | 5mm 10mm 12mm 14mm 16mm 18mm |
| Prodcut Color | White Blue others |
| Tank Volume | 0.125-5,000CMB |
| Tank Height | 1-4m(Max) |
The panel thickness of each part inwater tank is different along with differenttank's height:
|
Tank Height |
Thickness of each panel |
|||||
bottom panel |
1st layer side panel |
2nd layer side panel |
3rd layer side panel |
4th layer side panel |
cover panel |
|
1m |
10mm |
10mm |
/ |
/ |
/ |
5mm |
2m |
12mm |
12mm |
10mm |
/ |
/ |
5mm |
3m |
16mm |
16mm |
12mm |
10mm |
/ |
10mm |
4m |
18mm |
18mm |
16mm |
12mm |
10mm |
10mm |
P.S. Above thickness just for reference, actual thickness will be changed according to tank capacity
Features
(1) Strong resistance to corrosion
(2) Reasonable structure design
(3) All welded on-site combination. High strength, good sealing, prevent secondary pollution of water quality
(4) Light weight, that is one half of ordinary steel plate water tank
(5) Easy to install
(6) Clean, bright, beautiful appearance
Application
The water tank has been widely used in residential buildings, hotels, office buildings, R&D buildings, schools, malls, restaurants and other public facilities as well as places with high requirements for water quality, such as hospitals and food processing plants.
Structure drawing

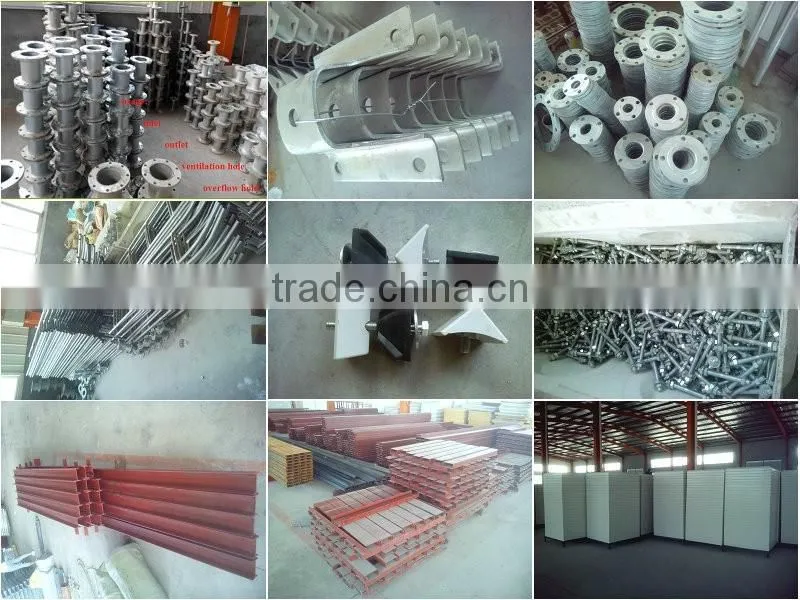

Accessories and specifications
1. Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel
Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod
2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures
3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304
4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304
5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent
6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank
7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter
8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of: 600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement
9. ABS roof vent with PE insect screen
10. Float level indicator, optional SS304 for internal and external support structure are available on request
Packaging and shipping
1.plywood 2.iron bracket 3.naked package
Company information
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the production and design of the water tank.
Company's products include: fiber glass reinforced plastic water tank, stainless steel water tank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and underground water tank.
Company tenets: quality first, customer first and best credibility!
The same price with best quality,the same quality with highest reputation!
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
Our service
|
Company in a professional, dedicated service, adhere to the market demand,customer requirements as their responsibility, depending on each customer as a partner, relying on advanced technology, excellent management team and modern as possible for our customers to provide the latest market information and the best service, and customers to gain a win-win for the pursuit of the goal |
Our other products

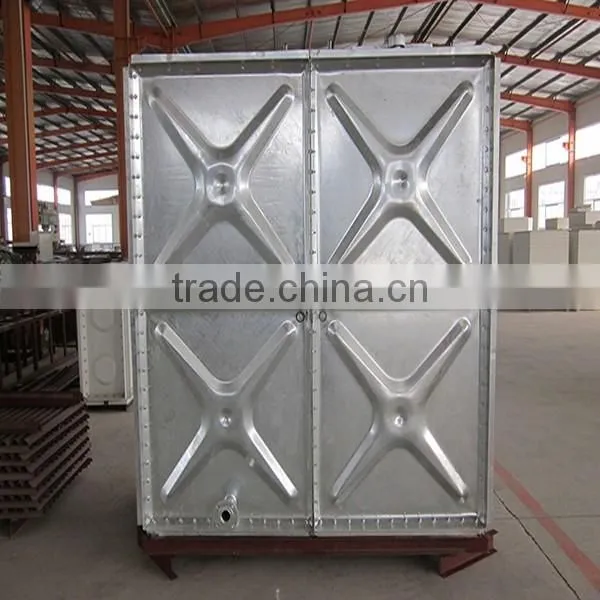

hot dipped galvanized steel water tank

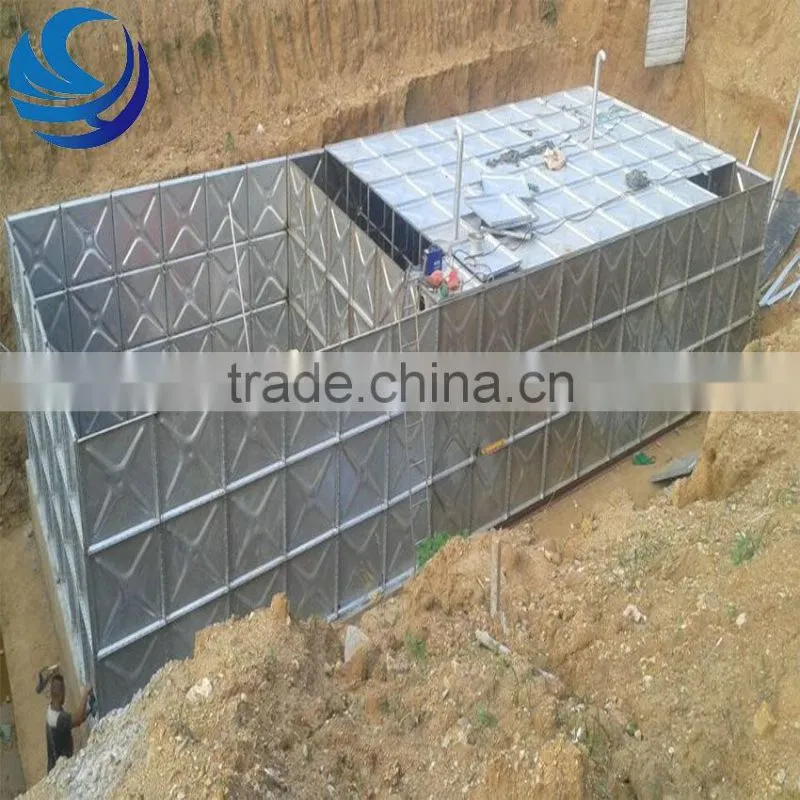

undergroud water tank
