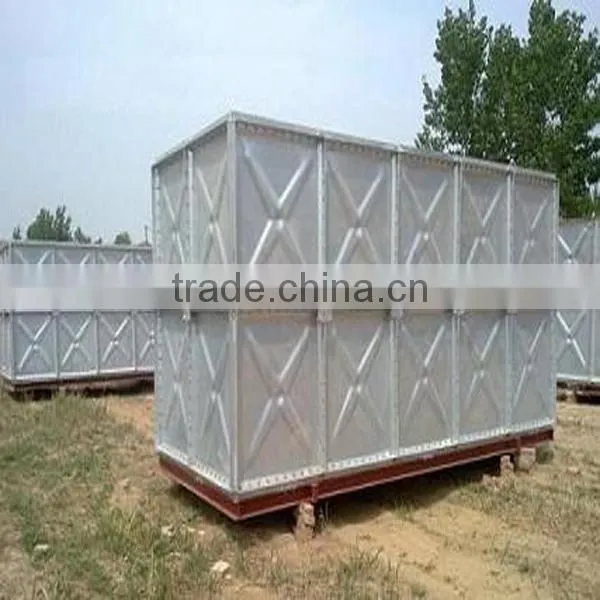

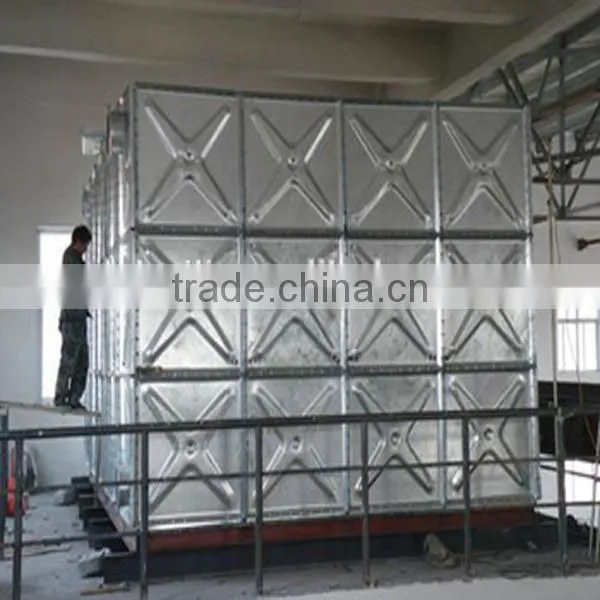

Insulated Galvanized steel sectional hot water tanks
We are manufacturer in water tank ,our products including:frp water tank ,grp water tank ,smc water tank ,hot dipped galvanized steel water tank ,stainless steel water tank ,BDF water tank ,enameled steel water tank ,gush paint steel water tank .
Product description
The hot dipped galvanized steel water tank is defers to the GB code 92SS177
manufactured new type water tank. The manufacture and the installment of tank
have no influence of the construction. There are not needed the welding apparatus,
the surface is hot dipped galvanize antiseptic treatment. It’s artistic durable,
prevents two times pollution to water quality and it beneficial to human health.
The water tank meets the construction product standardization, the serration and
the factorization request.
This product uses the Q235 steel plate, ramming to 1000*1000 and the 1000*500
standard plate, the peripheral drill hole, undergoes hot dipped galvanized processing.

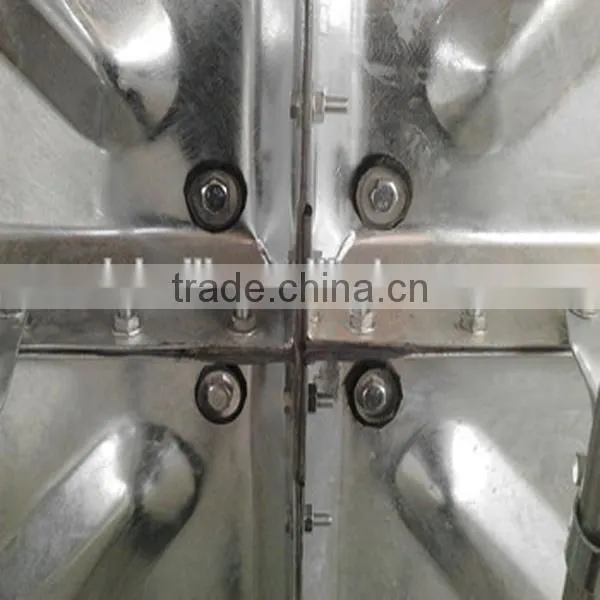

When it assembles between the standard plate clamps use the rubber packing and
bold fastening.
This product is suitable for the construction water storing, the regulating tank,
heating system's inflation water tank, the condensate tank as well as the building
construction, the geological prospecting, the industry, the defense project and
so on temporarily store water tank.
This water tank volume has 24 kinds specifications, select for the design. The engineer also can design according to the water tank's length, width, high then factory assembles.
The inlet pipe, the outlet pipe, the overflow caliber and the position of water tank
is depends on the designing. All around the water tank should have no less than
700mm channels, the bottom and the cover should no less than 600mm. When it installed,the bottom and all around between the bottom standard plate's joins must be locatedon the support.
Structure drawing

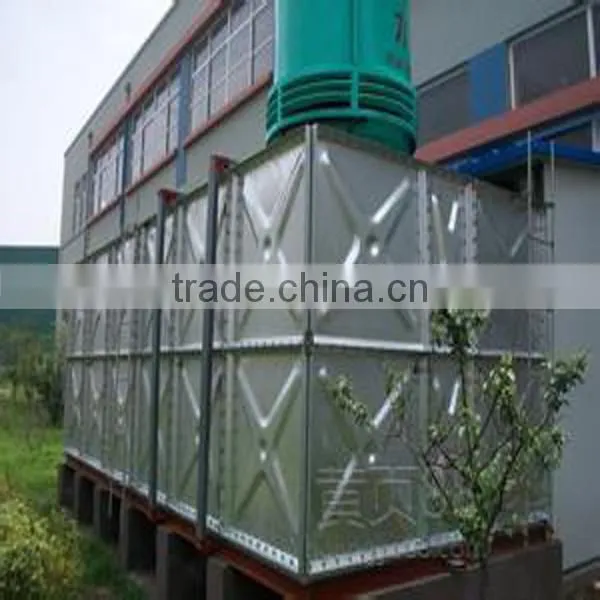

Galvanized steel water tank application
Pump Chambers
Emergency Water Storage
Rainwater Harvesting & Storage
Potable Water Storage (drinking water)
Effluent/Acid and alkali solution treatment & Storage
Hospital,buildings,building site, school,campgrounds and other places
Features of hot dip galvanized steel water tank
Never rust,light weigth and high strength,healthy and safety.
•Anti-corrosion, anti-aging, no distorsion, no infiltration .
•Easy to clean and conveniently to install and assemble.
•It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.

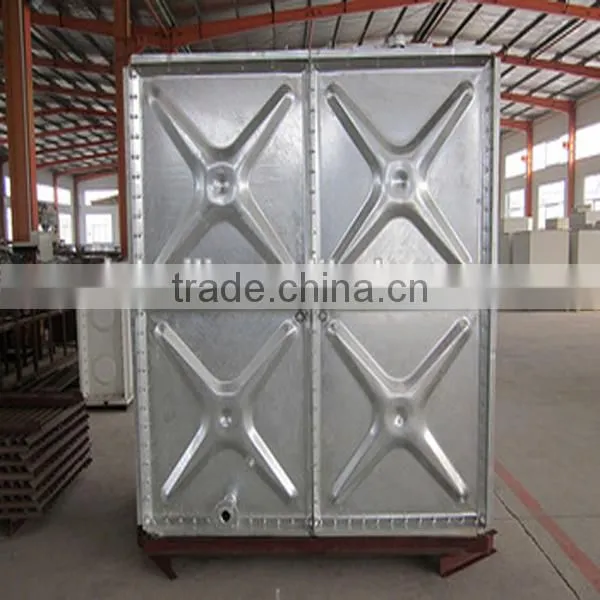

Panel of hot dip galvanized steel water tank show
|
Tank Height (mm) |
Thickness of each panel | |||||
|
bottom panel |
1st layer side panel |
2st layer side panel |
3st layer side panel |
4st layer side panel |
cover panel |
|
| 1000 | 3# | 3# | / | / | / | 2# |
| 1500 | 3# | 3# | 3# | / | / | |
| 2000 | 3# | 3# | 3# | / | / | |
| 2500 | 4# | 4# | 3# | 3# | / | |
| 3000 | 4# | 4# | 3# | 3# | / | |
| 3500 | 4# | 4# | 3# | 2.5# | 2.5# | |
| 4000 | 5# | 5# | 3# | 2.5# | ||

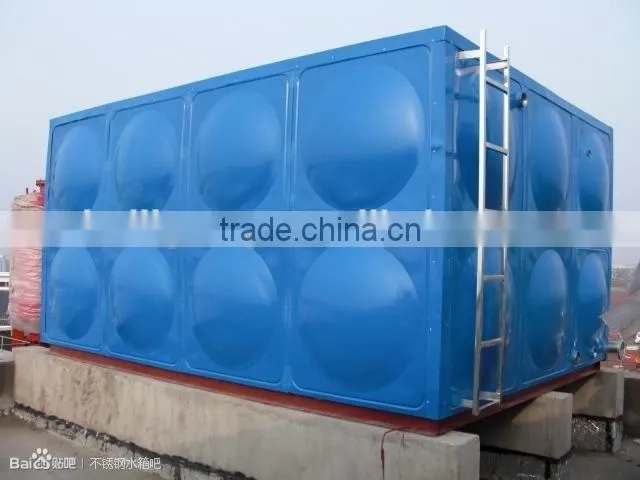

Tank insulation
There are many insulation materials commonly used polyurethane, rubber and plastic, etc.The polyurethane heat preservation effect is the best, also is my company's innovative product, has been in different has been widely used in different occasions, the market reaction is good.
The tank polyurethane heat preservation make full use of the polyurethane itself good effect of heat preservation and bonding properties, high pressure foaming , and various forms of water tank is perfect joint, outsourcing angles, beautiful and durable.
Besides, there are more economical and general rubber insulation for you to choose, it is a suitable choice in not very high requirement heat preservation.
Innovative in heat preservation of exterior used the glue plate, color steel plate, stainlesssteel plate, aluminum plate, galvanized steel, compared with the traditional aluminum foil, use this protective material insulation board for longer service life, better, more beautiful appearance.
Accessories
1 Bolt. nut & washers
hot-dipped galvanized material.
2 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.
Packaging and shipping
1. plywood 2. iron bracket 3. naked package
Company information
Dezhou Huili Environmental Technology Co.,Ltd is a professional production enterprise specializing in the production and design of the water tank
Company's products include: fiber glass reinforced plastic water tank, stainless steel watertank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and undergroud water tank .Company tenets: quality first, customer first and best credibility!The same price with best quality,the same quality with highest reputation!
The company has a professional after-sale service institution, each service branch are provided with a fixed installation and after sale serviece personnel to ensure the user to get a response from us in the first time.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it
would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
