Factory price 4 layer tank galvanized sectional steel water storage tank
Sectional hotdip galvanizing water tank is a new type of water tank. Manufacturing and installation is free form the affects of civil engineering . No welding equipment is needed. Hot galvanized surface attractive and durable, good for health, can prevent secondary pollution.
water tank for heating system as well as temporary water tank for construction and geological prospecting and so on.
Water capacity varies from 1.0 cubic meter to 1000 cubic meters, height may reach as great as 5 meters. Inflow, outflow tubes as well as return tube's diameter and place is decided by the designer, passages of at least 7000mm is needed around the tank.
Specification of 4 layer tank galvanized sectional steel water tank
Our hot galvanized is assembled by moulding single panels, sealing material, metallic parts and pipeline. Water tanks could be custom-made with capacity from 0.125m3 to 5000m3 according to your needs. Generally the height should be no more than 4 meters, the length and width can be limitless.
Application
Potable Water Storage (drinking water)
Rainwater Harvesting & Storage
Emergency Water Storage
Pump Chambers
Effluent/Acid and alkali solution treatment & Storage
Hospital,buildings,building site, school and other place

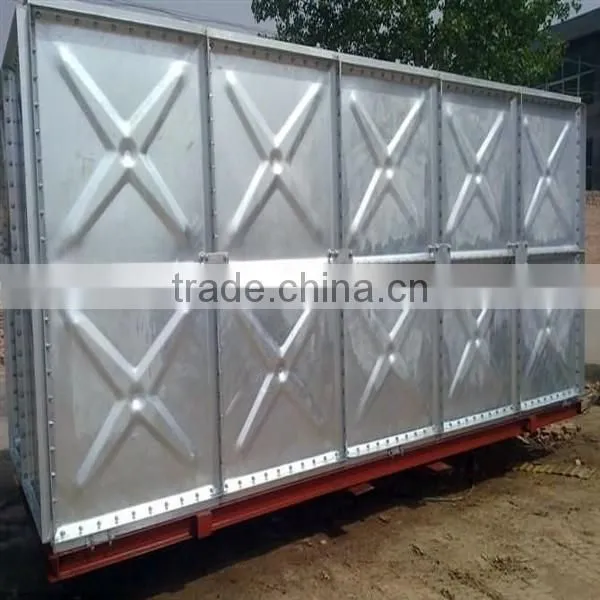

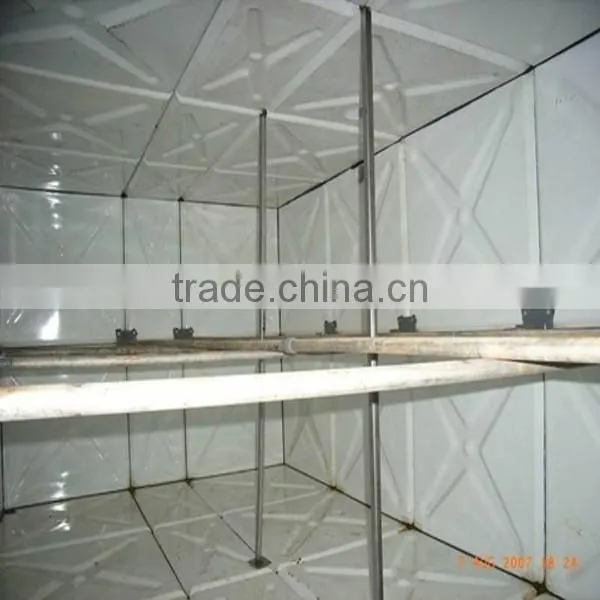

Pictures of 4 layer tank galvanized sectional steel water tank
Structure drawing
Features
•Anti-corrosion, anti-aging, no distorsion, no infiltration .
•Easy to clean and conveniently to install and assemble.
•It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.
Panel show
|
Tank Height (mm) |
Thickness of each panel | |||||
|
bottom panel |
1st layer side panel |
2st layer side panel |
3st layer side panel |
4st layer side panel |
cover panel |
|
| 1000 | 3# | 3# | / | / | / | 2# |
| 1500 | 3# | 3# | 3# | / | / | |
| 2000 | 3# | 3# | 3# | / | / | |
| 2500 | 4# | 4# | 3# | 3# | / | |
| 3000 | 4# | 4# | 3# | 3# | / | |
| 3500 | 4# | 4# | 3# | 2.5# | 2.5# | |
| 4000 | 5# | 5# | 4# | 3# | 2.5# | |
Tank insulation
There are many insulation materials commonly used polyurethane, rubber and plastic, etc.The polyurethane heat preservation effect is the best, also is my company's innovative product, has been in different has been widely used in different occasions, the market reaction is good.
The tank polyurethane heat preservation make full use of the polyurethane itself good effect of heat preservation and bonding properties, high pressure foaming , and various forms of water tank is perfect joint, outsourcing angles, beautiful and durable.
Besides, there are more economical and general rubber insulation for you to choose, it is a suitable choice in not very high requirement heat preservation.
Innovative in heat preservation of exterior used the glue plate, color steel plate, stainlesssteel plate, aluminum plate, galvanized steel, compared with the traditional aluminum foil, use this protective material insulation board for longer servicelifebetter more beautiful appearance.
Accessories
1 Bolt. nut & washers
hot-dipped galvanized material.
2 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.
Packaging and shipping
1. plywood 2. iron bracket 3. naked package
Our company
Dezhou Huili Environmental Technology Co.,Ltd is a professional production enterprise specializing in the production and design of the water tank .
Company's products include: fiber glass reinforced plastic water tank, stainless steel watertank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and undergroud water tank .Company tenets: quality first, customer first and best credibility!The same price with best quality,the same quality with highest reputation!
The company has a professional aftersale service institution, each service branch are provided with a fixed installation and after sale serviece personnel to ensure the user to get a response from us in the first time.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it
would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
